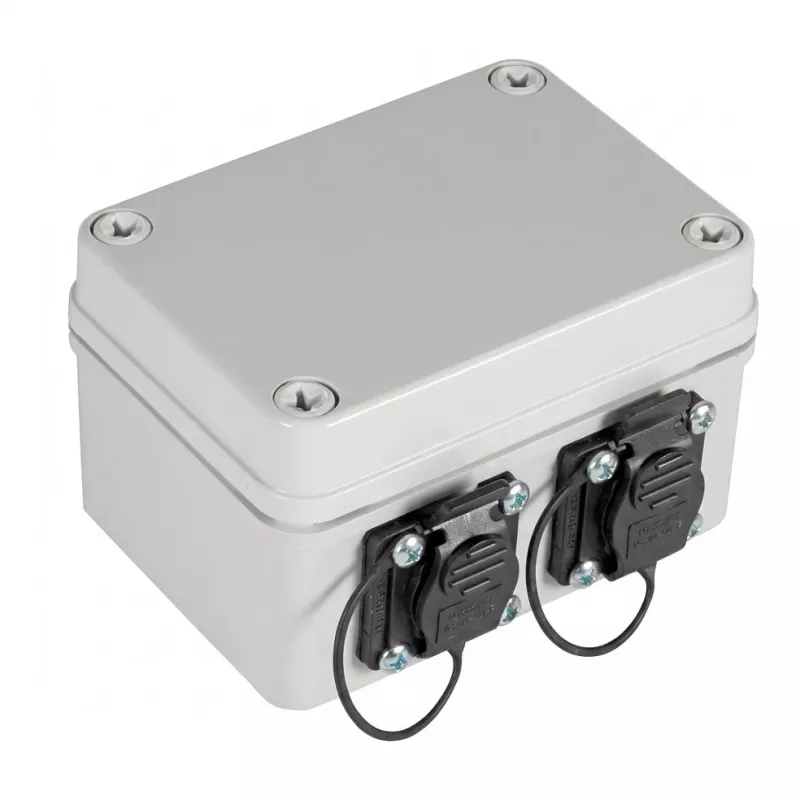

EFB Elektronik NWSZ 53730.1V2 Carcasa IP67 con 2 puertos RJ45 Cat.6A y 2 prensaestopas M16

The EFB Elektronik NWSZ 53730.1V2 is a robust IP67-rated industrial housing designed for reliable network connections in harsh environments. It features 2xRJ45 Cat.6A ports and 2xM16 cable glands, making it ideal for outdoor and industrial applications where dust and water ingress are concerns.

Advantages

This housing offers exceptional durability with its UV-resistant PC/ABS material and IP67 protection, ensuring operation in temperatures from -20°C to +70°C. The pre-assembled design simplifies installation, while the integrated grounding connection supports shielded cables for enhanced signal integrity.

Suitable for

• Outdoor network installations
• Industrial Ethernet connections
• Harsh environment data transmission
• Wall-mounted enclosures for secure cabling

Key specifications

• Product Type: Industrial / Outdoor Network Enclosure
• IP Protection Rating: IP67
• Number of RJ45 Ports: 2
• Ethernet Category: Cat.6A (10 Gigabit Ethernet)
• Shielding: Fully Shielded (STP)
• Internal Termination Type: IDC / LSA+ compatible
• Number of Cable Glands: 2
• Cable Gland Thread Size: M16
• Enclosure Material: UV-resistant PC/ABS
• Mounting Type: Wall Mountable
• Operating Temperature Range: -20°C to +70°C
• Relative Humidity: 10% - 90% (non-condensing)
• Flammability Rating: UL94-V0
• Colour: Light Grey (RAL 7035)
• Supported Cable Diameter (M16 Gland): 4.0 - 10.0 mm
• Grounding: Integrated grounding connection for shielded cables
• Connector Type (External): RJ45 Female
• Features: Pre-assembled, ready for installation

Recommendations

For optimal performance, use with Cat.6A shielded patch cables and ensure proper grounding. Suitable for industrial automation, surveillance systems, and outdoor networking.
