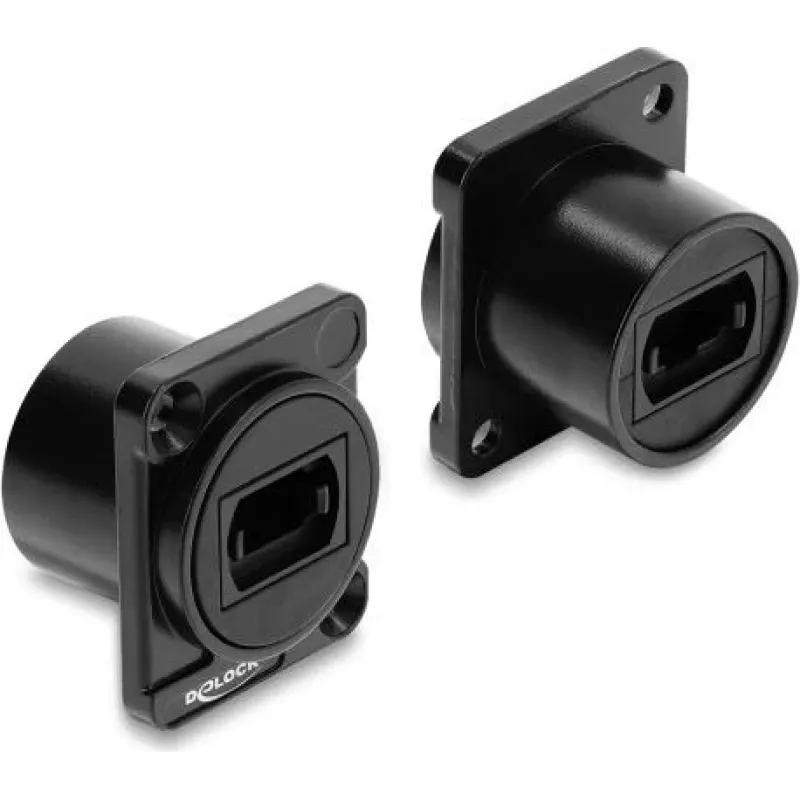

Delock módulo D-Type MPO conector hembra a conector hembra negro

Fiber optic installations often struggle with limited panel space and the need for high-density connectivity. This Delock D-Type module solves that by providing a compact, panel-mountable MPO adapter that fits standard D-type cutouts, enabling efficient multi-fiber connections in patch panels, wall outlets, and equipment racks.

Who is it for

Network technicians, data center managers, and AV professionals who need a reliable, space-saving MPO interconnection point. Ideal for structured cabling systems where modularity and quick deployment are essential.

Main features

• MPO female to female adapter for multi-fiber connections
• D-Type housing compatible with Neutrik standard cutouts (26.5 x 26.5 mm)
• Robust metal housing in black for durability and professional appearance
• Single port design for focused high-density applications
• Supports over 500 mating cycles for long-term reliability
• RoHS and REACH compliant for environmental safety

Specifications

• Connector type (front): MPO female
• Connector type (rear): MPO female
• Module type: D-Type
• Housing material: Metal
• Colour: Black
• Panel cutout dimensions: 26.5 x 26.5 mm
• Number of ports: 1
• Operating temperature: -20 °C to 70 °C
• Storage temperature: -20 °C to 75 °C
• Humidity: 10 - 90 % (non-condensing)
• Mating cycles: > 500
• Compliance: RoHS, REACH

Tips

Use this module with pre-terminated MPO trunk cables for rapid deployment. Ensure proper dust protection when ports are not in use to maintain signal integrity.
