DeLOCK Set de bloques de terminales para carril DIN, 8 polos, paso 5,08 mm, en ángulo, verde

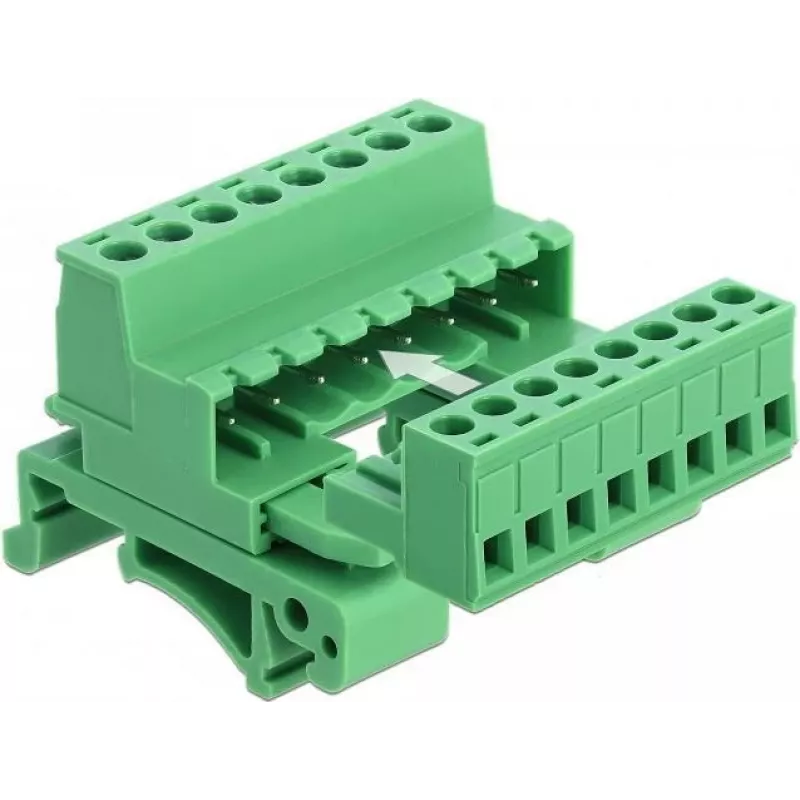

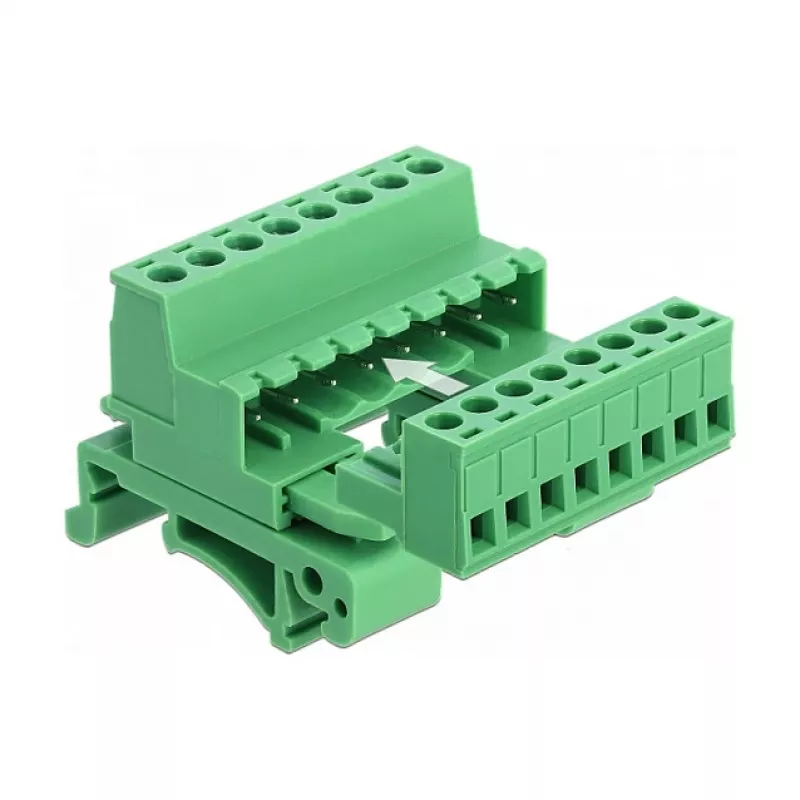

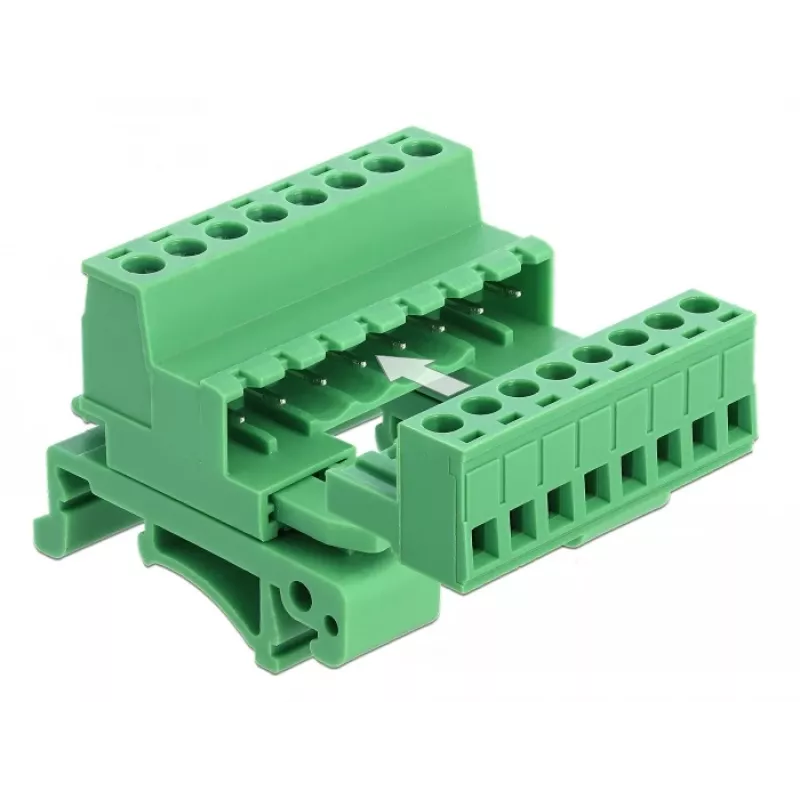

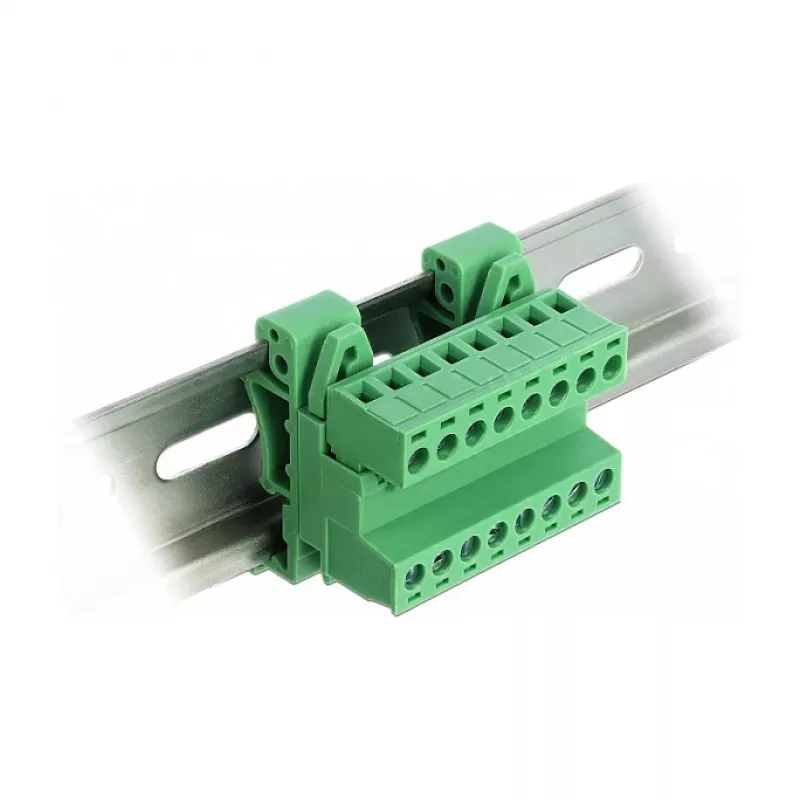

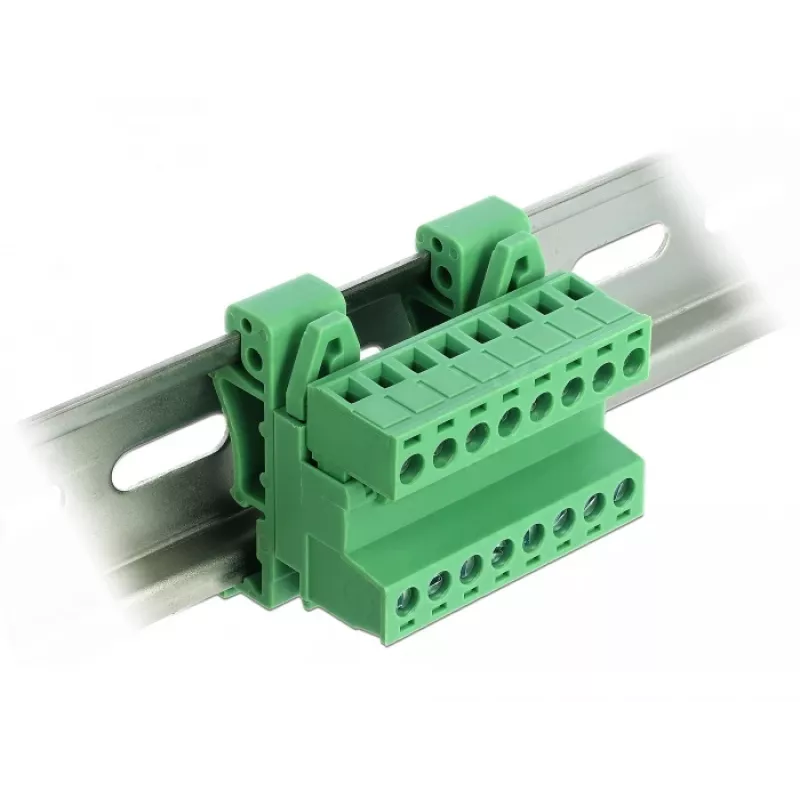

Industrial control panel builders and machine wiring technicians use this DeLOCK terminal block set to create secure, pluggable connections on standard 35 mm DIN rails. The set includes one 8-pin male header and one matching female plug with angled (90°) orientation, allowing easy insertion and removal of wiring harnesses without disturbing the rail-mounted base.

Key specifications

• 8-pin terminal block set for DIN rail mounting
• Pin pitch: 5.08 mm
• Connector orientation: angled (90°)
• Rated voltage: 300 V
• Rated current: 10 A
• Wire gauge: 28–12 AWG (0.2–2.5 mm²)
• Insulator material: PA66, flammability UL 94V-0
• Contact material: brass, tin-plated
• Screw material: steel, zinc-plated, size M2.5, torque 0.4 Nm
• Operating temperature: -40 °C to 105 °C
• Colour: green

Why choose it

The pluggable design simplifies maintenance and replacement of field wiring. The angled header saves space in dense control cabinets, and the robust PA66 housing withstands harsh industrial environments.

Ideal use cases

• PLC I/O connections in automation systems
• Power distribution in control panels
• Signal wiring for sensors and actuators
• Prototyping and testing on DIN rail setups

Good to know

The set comprises two pieces: one plug and one header. The screw terminals accept solid or stranded wires up to 2.5 mm², ensuring reliable clamping. The green colour aids quick identification in multi-rail installations.
