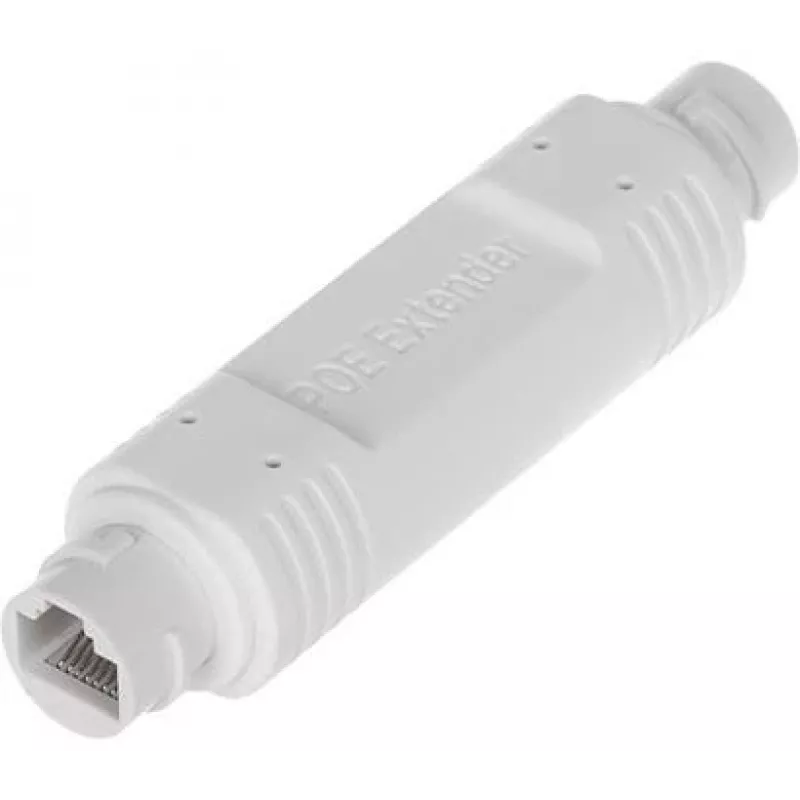

DELTA SPT-POE/1-POE-OUTDOOR-V2 Extensor PoE exterior para cámaras IP, IEEE 802.3af/at, 30W, IP67

The DELTA SPT-POE/1-POE-OUTDOOR-V2 is a rugged, outdoor-rated PoE extender that pushes Ethernet and power up to an additional 100 metres per unit — and up to 400 metres when three units are daisy-chained. Built for IP camera installations, it delivers up to 30W of PoE power over IEEE 802.3af/at, making it ideal for PTZ or IR cameras that demand higher wattage.

Overview

Designed to overcome the 100-metre limit of standard Ethernet, this extender regenerates both data and power signals to reach distant cameras without adding bulky power supplies. Its compact aluminium alloy housing meets IP67 waterproof and dustproof standards, and it survives operating temperatures from -40°C to 75°C — perfect for outdoor or industrial environments.

What stands out

• Extends a single PoE run up to 100m per unit, or 400m using a 3-unit daisy chain
• True plug-and-play deployment — no configuration required
• IP67 sealed housing for harsh outdoor conditions
• Supports both IEEE 802.3af (15.4W) and IEEE 802.3at (30W) PoE devices
• Built-in 6KV surge and 8KV ESD protection for reliable uptime

Technical details

• PoE Standard: IEEE 802.3af/at
• Data Rate: 10/100 Mbps
• Ports: 1 x RJ45 (PoE In), 1 x RJ45 (PoE Out)
• Maximum Extension: 100m per unit; 400m with 3 units
• Input/Output Power: 48-57V DC via PoE
• Max PoE Power Output: 30W (802.3at)
• Operating Temperature: -40°C to 75°C
• Ingress Protection: IP67
• Housing: Aluminium Alloy
• Installation: Wall-mount or pole-mount
• LED Indicators: Power, PoE Status
• Surge Protection: 6KV
• ESD Protection: 8KV
• Power Consumption: <2.5W

Our verdict

If you need to power a remote camera safely and reliably without adding network infrastructure, the DELTA SPT-POE/1-POE-OUTDOOR-V2 is a workhorse. Its IP67 build and 400m reach make it a standout choice for security installations.
