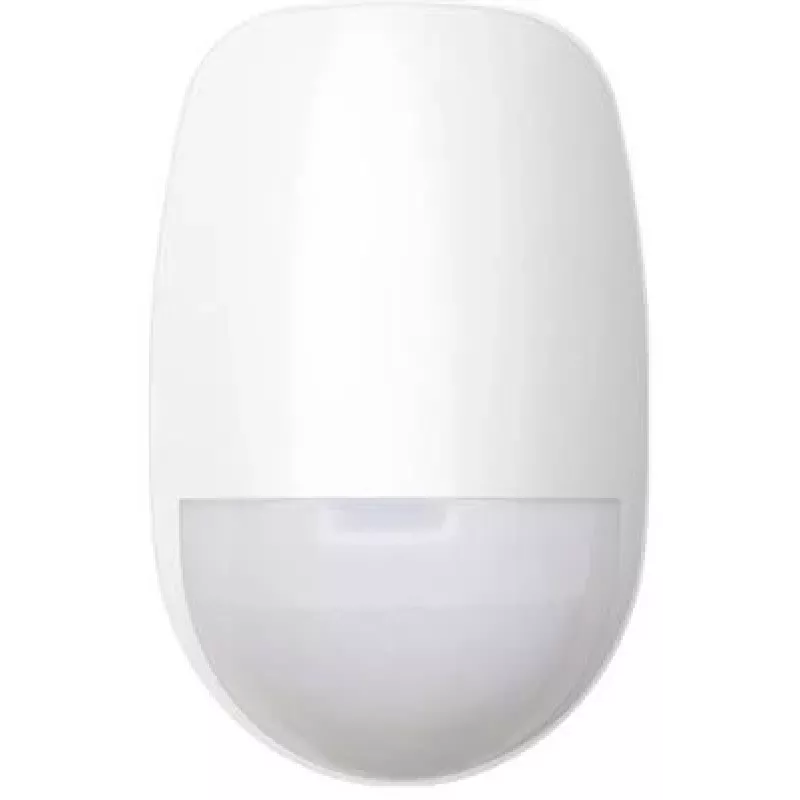

Detector de movimiento de pared con cable Hikvision DS-PDD15AM-EG2 — PIR + microondas, 12 V DC, 24 GHz, para interior

Hikvision DS-PDD15AM-EG2 is a wired wall-mounted motion detector that integrates a passive infrared (PIR) sensor with a 24 GHz microwave sensor for indoor intrusion detection. The unit is powered from a 12 V DC source and draws approximately 25 mA in normal operation. Its compact enclosure (65.7 × 103.8 × 45.5 mm) is designed for discreet wall installation in homes, offices, retail spaces and other indoor environments. The detector is engineered to tolerate ambient illumination up to 6500 lx and combines two sensing technologies to reduce false alarms while maintaining reliable detection of moving heat sources and motion patterns.

Advantages

The combined PIR and microwave sensing approach provides dual-technology verification to improve detection accuracy and reduce false triggers from pets or sudden light changes. Low current consumption makes the detector suitable for bus-powered security panels and systems with limited power budgets. The compact, wall-mounted format allows installation at standard mounting heights without occupying floor space. The device’s sensitivity characteristics and indoor rating are aligned with typical intrusion detection applications in residential and commercial installations.

Suitable for

• Indoor intrusion detection in homes and apartments
• Office and commercial premises monitoring
• Retail spaces and small shops
• Integration with wired alarm control panels and access control systems

Key specifications

• Detection technologies: passive infrared (PIR) plus microwave
• Microwave frequency: 24 GHz
• Power supply: 12 V DC
• Typical current consumption: 25 mA
• Maximum ambient light tolerance: up to 6500 lux
• Mounting type: wall-mounted
• Dimensions: 65.7 × 103.8 × 45.5 mm
• Intended environment: indoor use

How to use

Install the detector on a stable interior wall at the recommended mounting height for the coverage pattern required by your security system. Connect the detector to the system’s 12 V DC supply and wired input terminals following the alarm panel manufacturer’s wiring diagram and local electrical codes. After powering the device, allow the detector to stabilize for the manufacturer’s specified warm-up period before testing. Perform walk-tests to verify coverage and adjust orientation or mounting location if necessary to eliminate blind spots and optimize detection of expected movement paths.

Recommendations

Place the detector away from direct airflow from HVAC vents, heating sources, or areas with large temperature gradients. Avoid mounting facing windows with direct sunlight or reflective surfaces. For installations in spaces with pets, position the detector and set detector sensitivity (if supported by the system) to reduce pet-related false alarms. Regularly test the detector as part of routine system maintenance to ensure continued operation.
