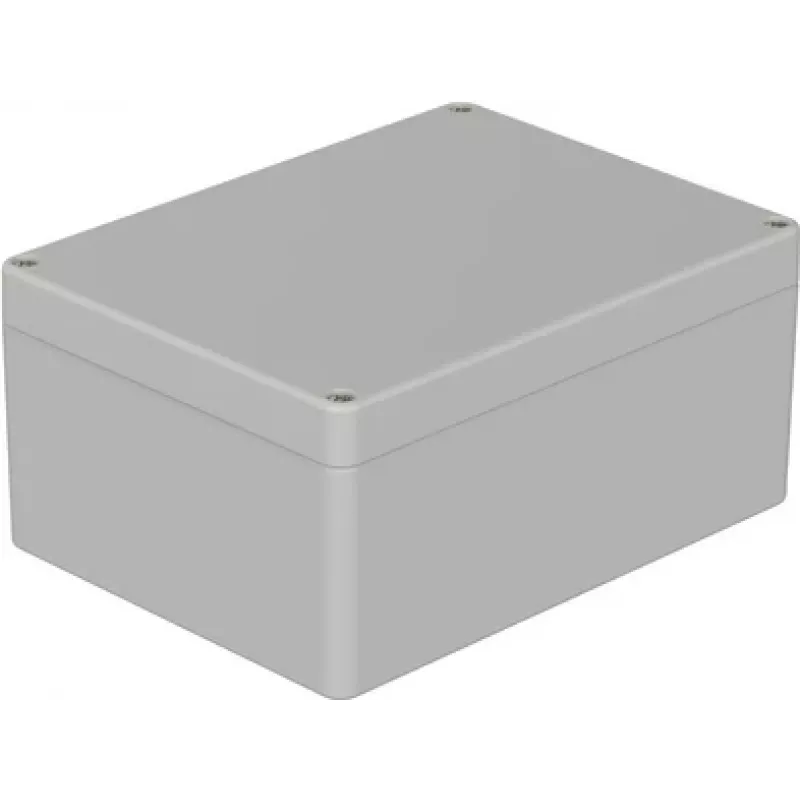

Bopla EUROMAS M carcasa universal 160 x 120 x 75 mm policarbonato gris claro 02238200

With an impact resistance of IK 07 and an operating range from -40 to +80 °C, this Bopla EUROMAS M enclosure is built for demanding environments. The 160 x 120 x 75 mm housing is made from light grey polycarbonate (RAL 7035), offering high mechanical strength and UV resistance. A polyurethane gasket and stainless steel lid screws ensure a reliable seal, while the wall-mountable design provides flexible installation options.

Overview

The Bopla EUROMAS M universal enclosure provides a robust solution for housing electrical and electronic components. Its polycarbonate construction delivers excellent impact resistance and durability, making it suitable for industrial applications. The enclosure is halogen-free and RoHS compliant, meeting modern environmental standards.

What stands out

• High impact resistance (IK 07) for tough conditions
• Wide operating temperature range: -40 to +80 °C
• UV-resistant polycarbonate material
• Secure sealing with polyurethane gasket and stainless steel screws
• Wall-mountable for versatile installation

Technical details

• External dimensions: 160 mm (L) x 120 mm (W) x 75 mm (H)
• Material: Polycarbonate (PC)
• Colour: Light grey (RAL 7035)
• Protection class: IP 65
• Impact resistance: IK 07
• Flammability rating: UL 94 V-2
• Gasket material: Polyurethane (PU)
• Lid fastening: Stainless steel screws (V2A)
• Lid type: Opaque, screw-on
• Mounting type: Wall mountable
• UV resistance: Yes
• RoHS compliant: Yes
• Halogen-free: Yes

Our verdict

A solid choice for industrial enclosures where durability and environmental resistance are key. The EUROMAS M series delivers reliable protection for your components.
