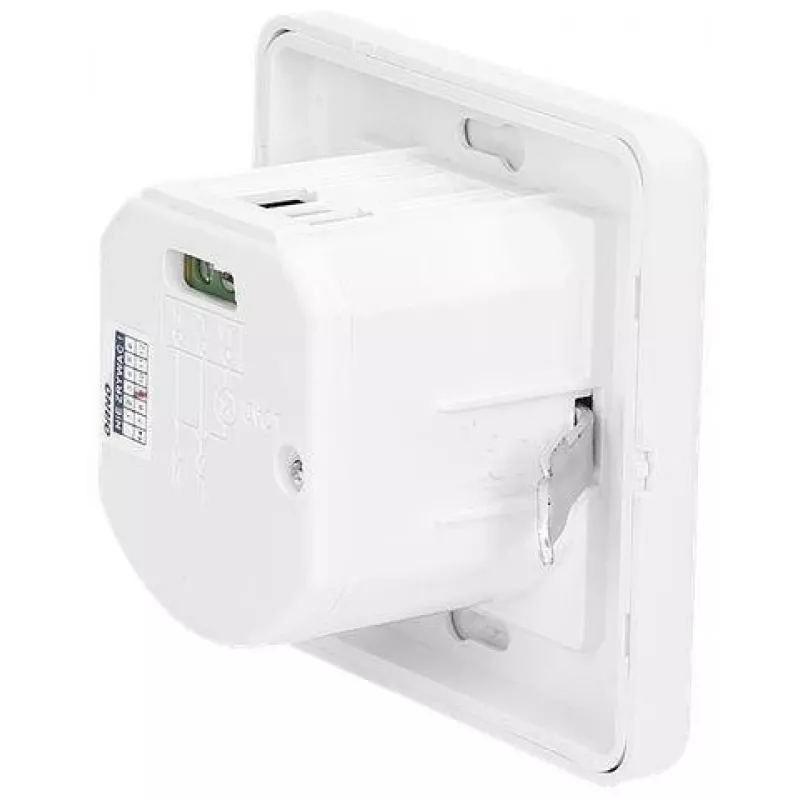

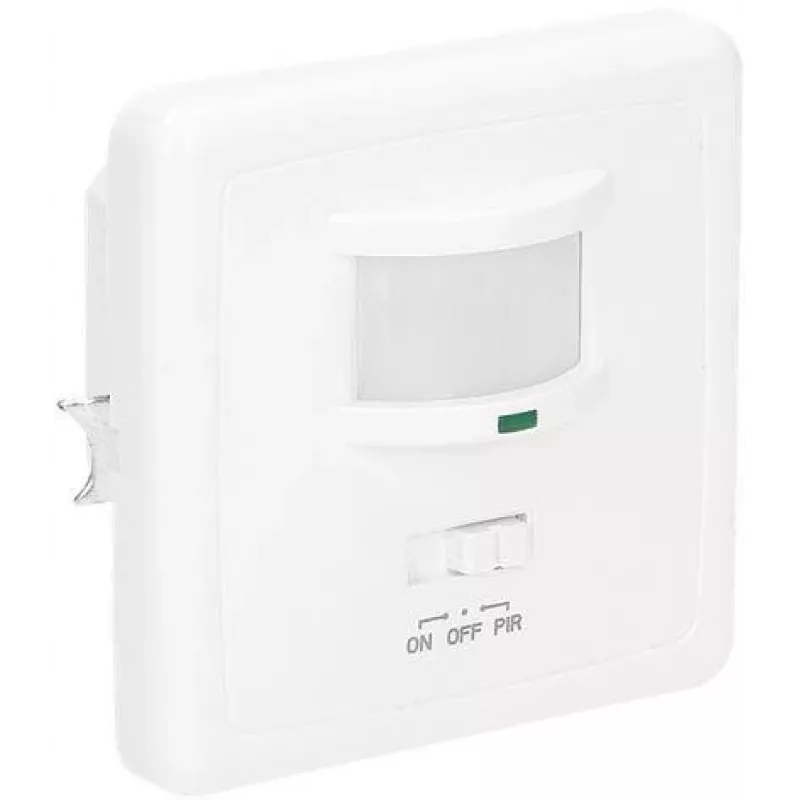

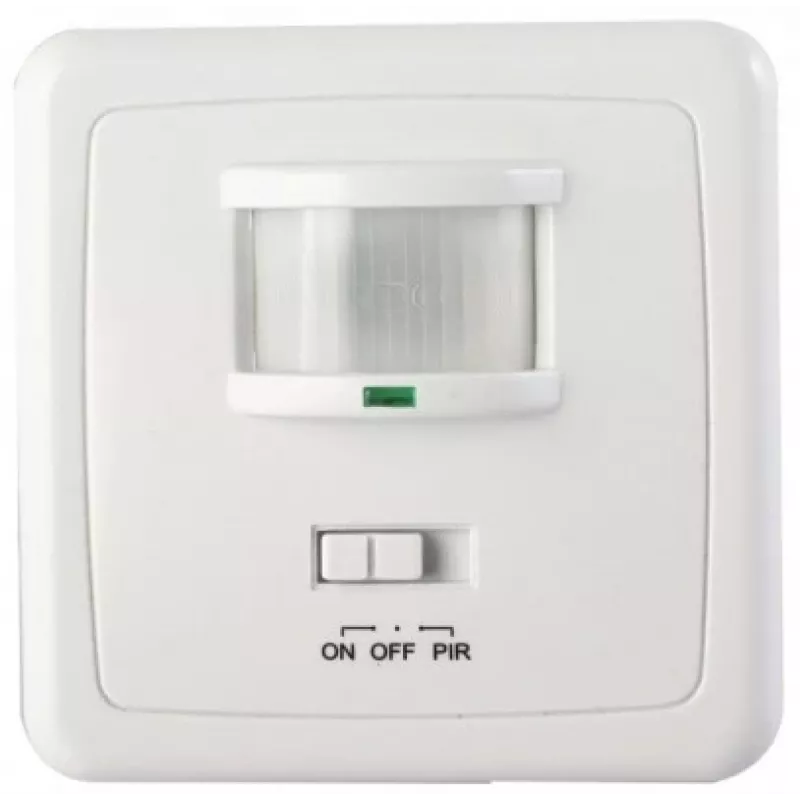

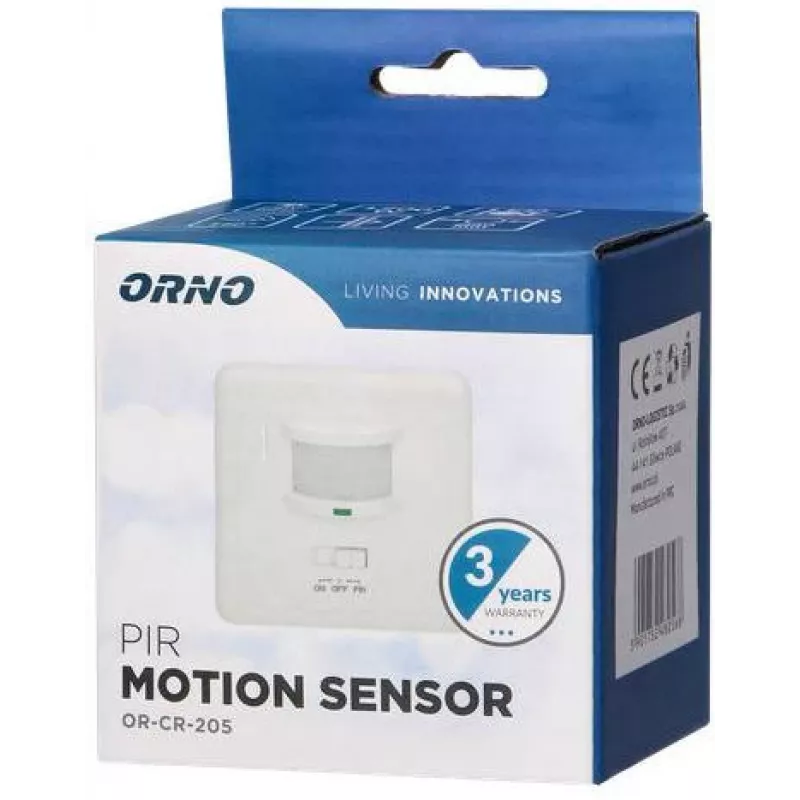

Detector de movimiento PIR ORNO OR-CR-205, 360°, 6 m, 230 V, blanco, montaje empotrado en techo

The ORNO OR-CR-205 is a high-quality passive infrared (PIR) motion sensor designed for automatic lighting control in indoor environments. With a 360° detection angle and a maximum range of 6 meters, it ensures reliable presence detection in rooms, corridors, and offices. The sensor is recessed ceiling mounted and features adjustable time delay and light sensitivity, making it versatile for energy-saving applications.

Advantages

Energy-efficient operation with low standby power consumption (0.45W). Easy installation with a 62mm mounting hole diameter. Adjustable settings for time delay (10s to 15min) and light threshold (3-2000 LUX) provide flexibility for various scenarios. Suitable for incandescent loads up to 1200W and LED/CFL loads up to 300W.

Suitable for

• Indoor lighting control in hallways, staircases, bathrooms, and offices
• Automatic on/off switching for energy savings
• Recessed ceiling installations in suspended ceilings

Key specifications

• Sensor Type: PIR (Passive Infrared)
• Detection Angle: 360°
• Detection Range: Max 6m (<24°C)
• Power Supply: 230V AC, 50Hz
• Max Load (Incandescent): 1200W
• Max Load (LED/CFL): 300W
• Time Delay Adjustment: 10s ± 3s to 15min ± 2min
• Light Sensitivity Adjustment: 3-2000 LUX
• Installation Height: 2.2 - 4m
• IP Rating: IP20
• Operating Temperature: -20°C to +40°C
• Operating Humidity: <93% RH
• Power Consumption (Standby): 0.45W
• Power Consumption (Operation): 0.1W
• Mounting Type: Recessed Ceiling Mount
• Mounting Hole Diameter: 62mm
• Material: PC
• Color: White

Recommendations

For optimal performance, install the sensor at a height of 2.2-4m and avoid placing it near heat sources or air conditioning vents. The sensor is designed for indoor use only.
