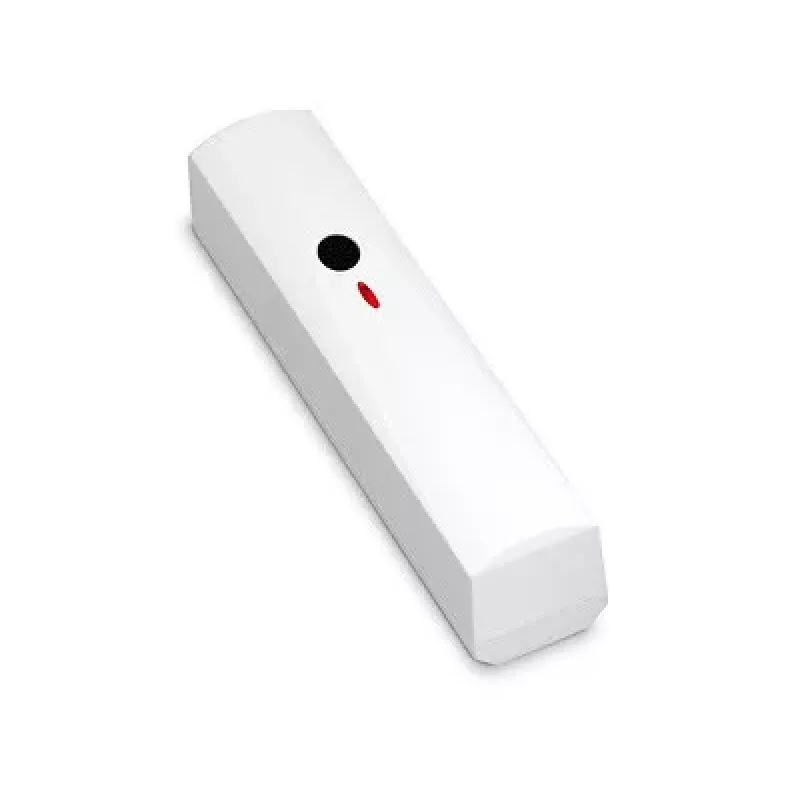

Detector digital de rotura de cristal SATEL MAGENTA

The SATEL MAGENTA is a digital glass break detector designed for reliable detection of glass breaking in various types of glass. Utilizing advanced digital acoustic analysis and two-channel frequency processing, it ensures high immunity to false alarms while providing a detection range of up to 9 meters radius. Ideal for securing windows and glass doors in residential and commercial premises.

Advantages

Advanced digital signal processing (DSP) for precise detection and false alarm immunity. Two-channel frequency analysis distinguishes between glass break and ambient noises. Wide detection range covers large areas. Compatible with plate, tempered, and laminated glass up to 6 mm thickness. Easy sensitivity adjustment via potentiometer.

Suitable for

• Residential homes and apartments
• Office buildings and commercial spaces
• Retail stores and showrooms
• Any premises with glass windows or doors requiring security monitoring

Key specifications

• Detection Technology: Digital Acoustic Analysis
• Detection Channels: Two-channel frequency analysis
• Detection Range: Up to 9 meters radius
• Supported Glass Types: Plate, Tempered, Laminated
• Maximum Glass Thickness: 6 mm
• Supply Voltage: 9-15 V DC
• Standby Current Consumption: 8 mA
• Maximum Current Consumption: 10 mA
• Alarm Output: NC (Normally Closed) Relay, 40 mA / 16 V DC
• Tamper Output: NC (Normally Closed) Relay, 40 mA / 16 V DC
• Operating Temperature Range: -10°C to +55°C
• Recommended Mounting Height: 2.1 - 2.7 meters
• Sensitivity Adjustment: Yes, via potentiometer
• LED Indicators: Alarm, Test Mode
• Microphone Type: Electret Condenser
• Digital Signal Processing (DSP): Yes

Recommendations

For optimal performance, mount the detector at the recommended height and avoid placing near sources of loud noise. Test the detector regularly using the test mode. Pair with a compatible alarm control panel for complete security system integration.
