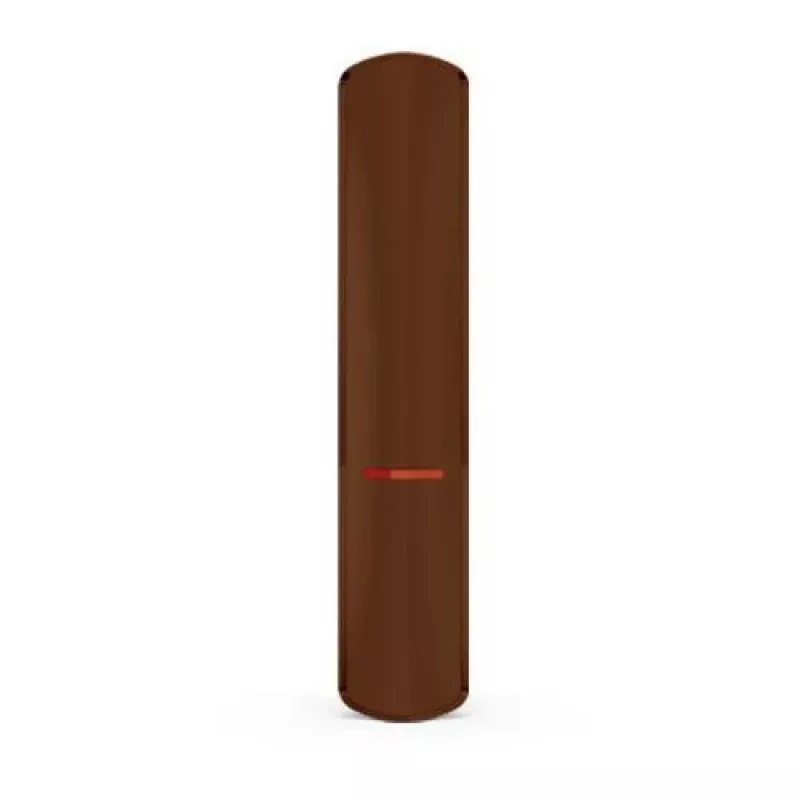

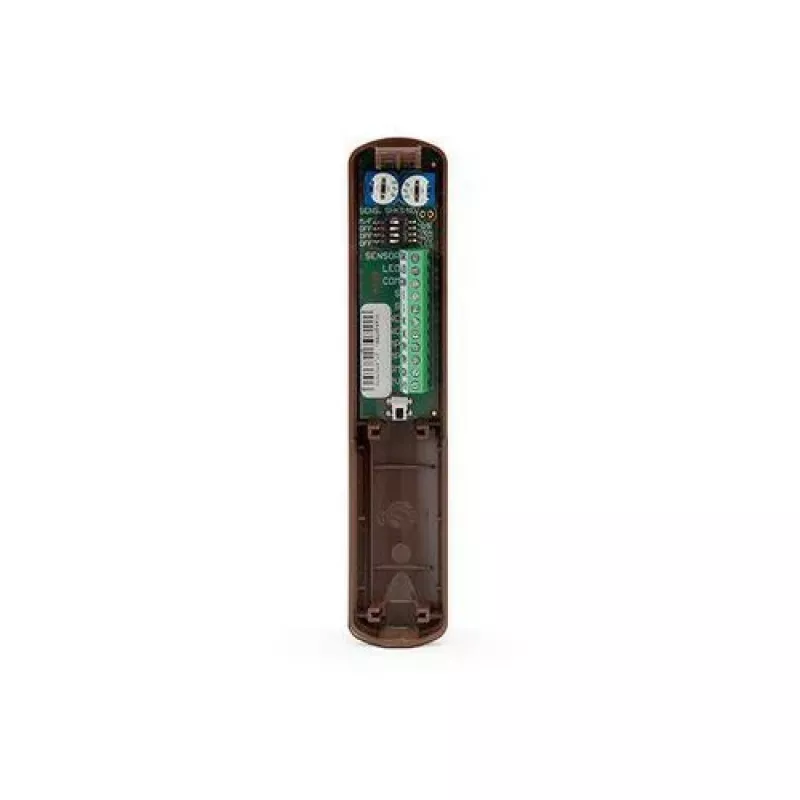

Detector universal SATEL XD-2 BR, Marrón

The SATEL XD-2 BR is a universal detector designed for indoor security applications. It features two configurable NO/NC inputs and provides reliable alarm and tamper outputs. The detector is powered by 12 VDC and is compatible with any alarm control panel. Its brown ABS plastic enclosure allows for surface mounting in various environments.

Advantages

Configurable inputs offer flexibility for different sensor types. The relay output ensures seamless integration with alarm systems. Tamper protection enhances security against enclosure opening. Grade 2 certification guarantees reliable performance.

Suitable for

• Indoor security systems
• Integration with alarm control panels
• Surface mount installations

Key specifications

• Product Type: Universal Detector
• Number of Inputs: 2 (NO/NC configurable)
• Output: Relay NC Alarm, NC Tamper
• Power Supply: 12 VDC (9-15 VDC)
• Standby Current: 8 mA
• Max Current: 10 mA
• Relay Contact Rating: 40 mA / 16 VDC
• Tamper Protection: Enclosure Opening
• Operating Temperature: -10°C to +55°C
• Environmental Class: II (EN 50130-5)
• Security Grade: Grade 2 (EN 50131-1)
• Enclosure Material: ABS Plastic
• Color: Brown
• Mounting: Surface Mount
• Certifications: CE

Recommendations

Ensure compatibility with your alarm panel's input configuration. For outdoor use, additional protection may be required.
