Detector de movimiento PIR miniatura ORNO OR-CR-211, 230V, 120°, 6m, IP20, blanco

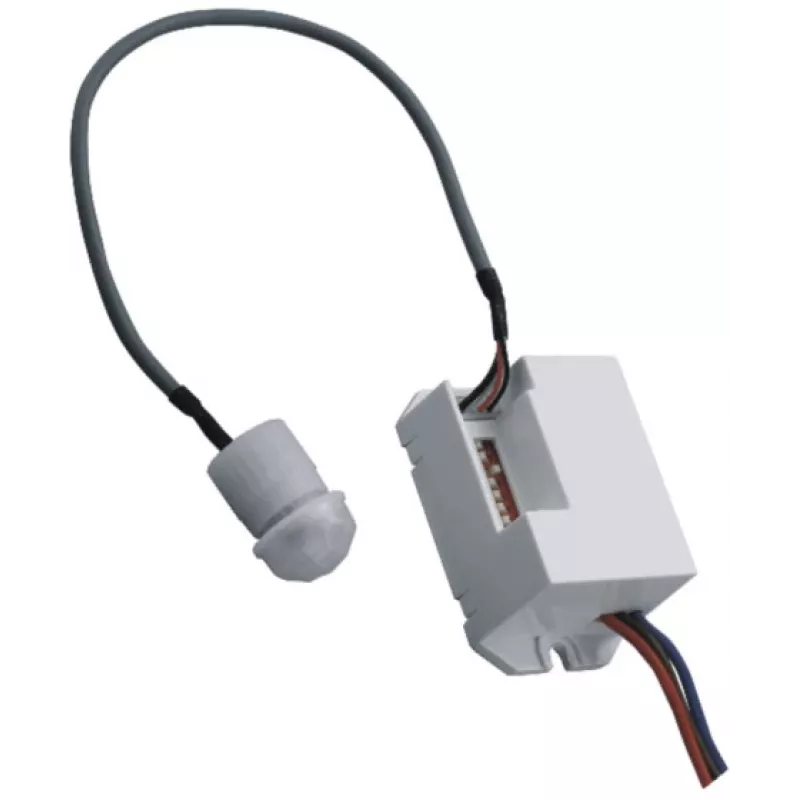

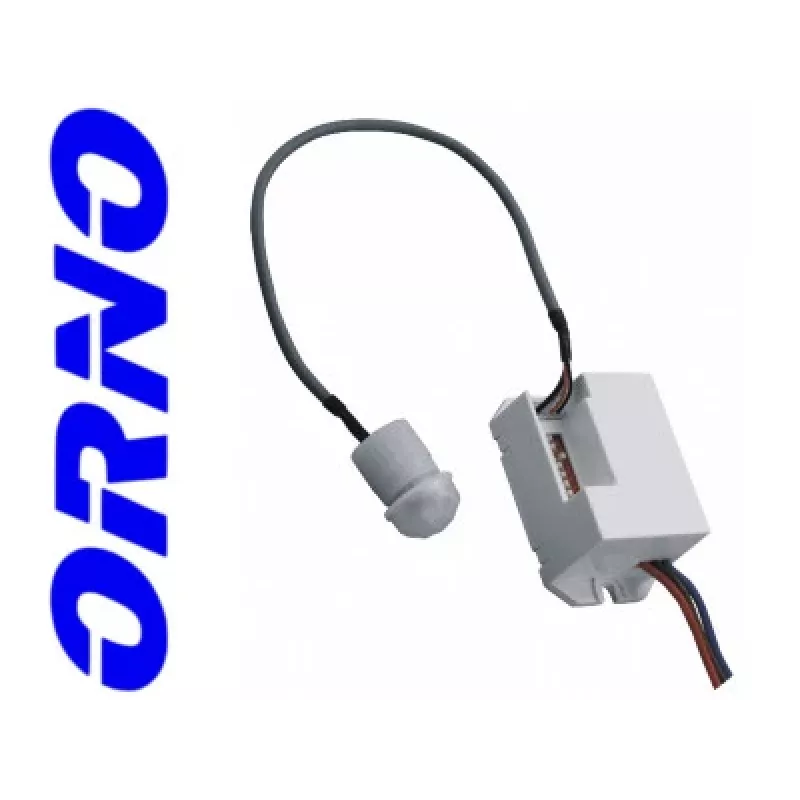

The ORNO OR-CR-211 is a compact and reliable miniature PIR motion sensor designed for automatic lighting control in indoor environments. With a sleek flush-mount sensor head and a surface-mount control unit, it offers discreet installation while delivering precise motion detection up to 6 meters. Ideal for hallways, staircases, bathrooms, and utility rooms, this sensor helps save energy by ensuring lights are only on when needed.

Advantages

Energy-efficient operation with adjustable time delay and light sensitivity; compact design fits into tight spaces; easy installation with separate sensor and control unit; reliable detection with 120° wide angle.

Suitable for

• Indoor lighting control in corridors, staircases, bathrooms, and storage areas
• Automatic on/off switching for resistive and LED/inductive loads
• Energy-saving automation in residential and light commercial buildings

Key specifications

• Sensor type: PIR (Passive Infrared)
• Power supply: 230V AC, 50Hz
• Max resistive load: 500W
• Max LED/inductive load: 200W
• Detection angle: 120°
• Detection range: max 6m
• Adjustable time delay: 10s ±3s to 15min ±2min
• Adjustable light sensitivity: <3-2000 LUX
• Installation: flush mount (sensor head), surface mount (control unit)
• IP rating: IP20
• Operating temperature: -20°C to +40°C
• Recommended mounting height: 1.8-2.5m
• Standby power consumption: 0.45W
• Sensor head diameter: 10mm
• Sensor head cable length: 0.2m
• Material: ABS plastic

Recommendations

For best performance, mount the sensor at the recommended height and avoid placing it near heat sources or air vents. Ensure the detection area is free from obstructions. This sensor is not suitable for outdoor use.
