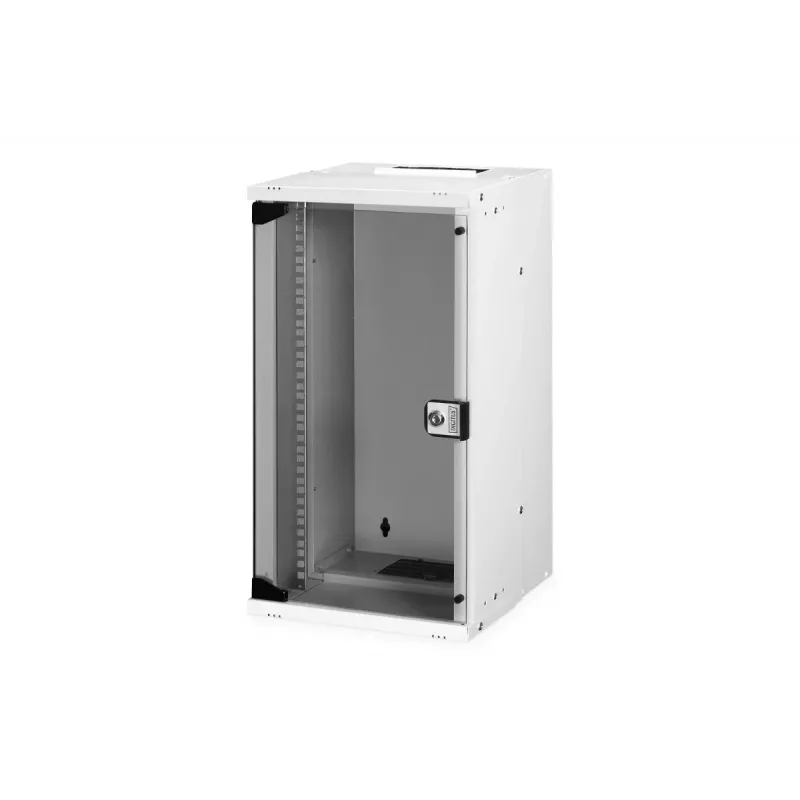

DIGITUS Armario de pared 10IN 12U - SOHO PRO 595 x 315 x 300 mm gris

The DIGITUS Wall Housing SOHO PRO series offers a compact 254 mm (10") wall-mounted rack solution delivered unassembled in an optimized flat pack for quick on-site installation. The SOHO PRO 12U model (DN-49104) is designed for indoor network installations with an IP20 rating and supports up to 60 kg of equipment. The cabinet is made from up to 1.5 mm thick steel, finished with electrostatic powder coating in grey (RAL 7035), and includes a full glass door, roof and floor cable entries, adjustable 10" profile rails, and a keyed lock for secure equipment storage.

Advantages

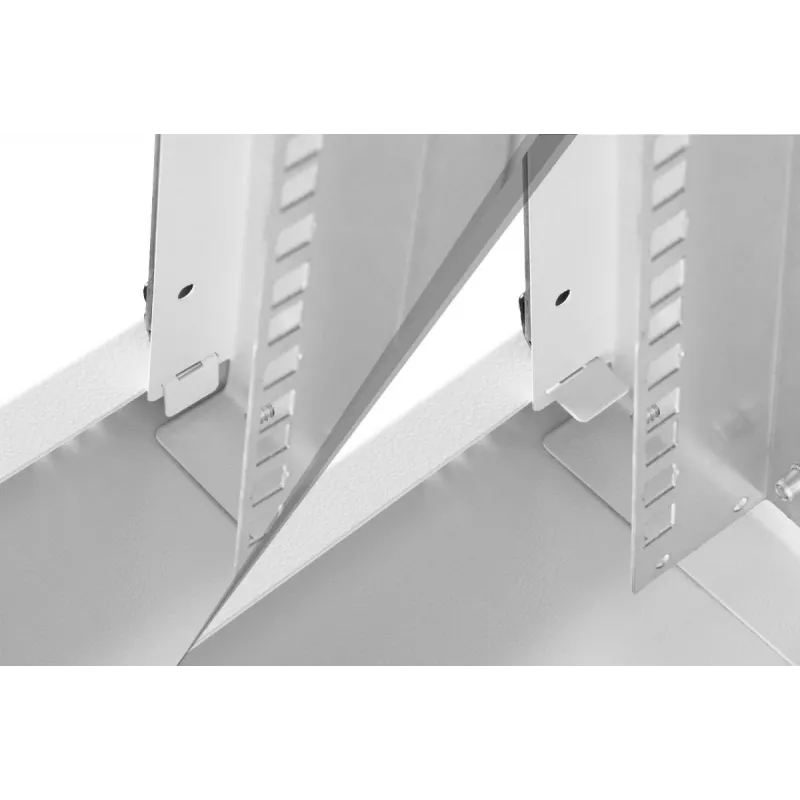

The wall housing is supplied as a flat pack for efficient transport and reduced storage volume and is designed for fast, user-friendly assembly using the included step-by-step instructions. Its compact 12U form factor and adjustable internal 10" profile rails allow flexible mounting of switches, patch panels and small servers while the 1.5 mm steel construction and powder-coated surface provide mechanical robustness and corrosion resistance. Cable entry points on the top and bottom simplify cable management and installation in constrained spaces.

Suitable for

• Small office and home office (SOHO) network equipment
• Sub-distribution points in buildings and apartments
• Patch panels, compact switches and network appliances

Key specifications

• Brand: DIGITUS
• Model / MPN: DN-49104
• Rack capacity: 12U (254 mm / 10")
• IP rating: IP20 (indoor use)
• Max load: 60 kg
• Material: Steel sheet up to 1.5 mm
• Dimensions (H x W x D): 591 x 316 x 298 mm
• Weight: 7.49 kg
• Colour: Grey (RAL 7035)

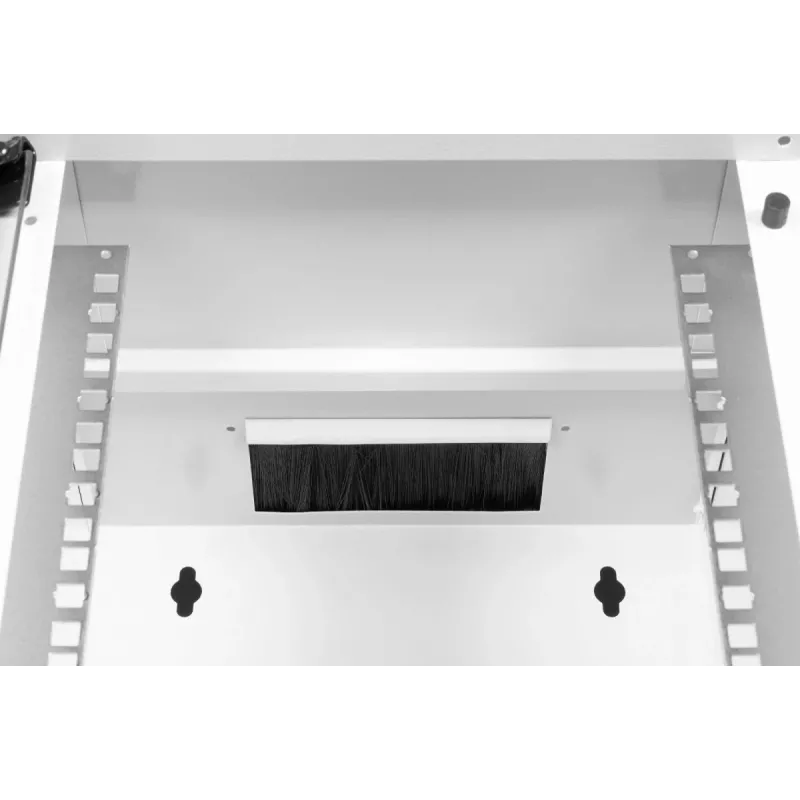

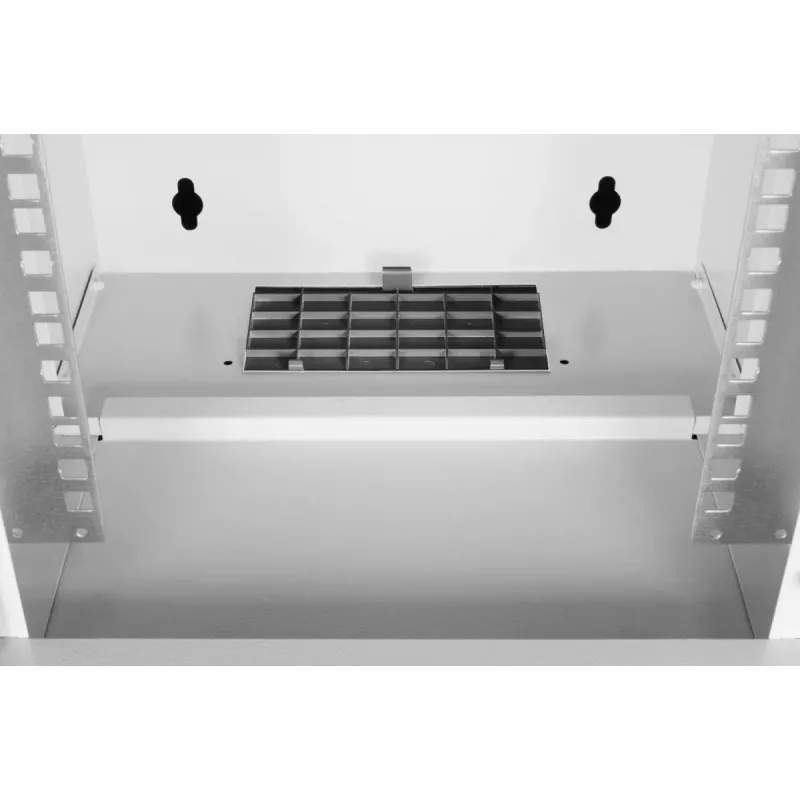

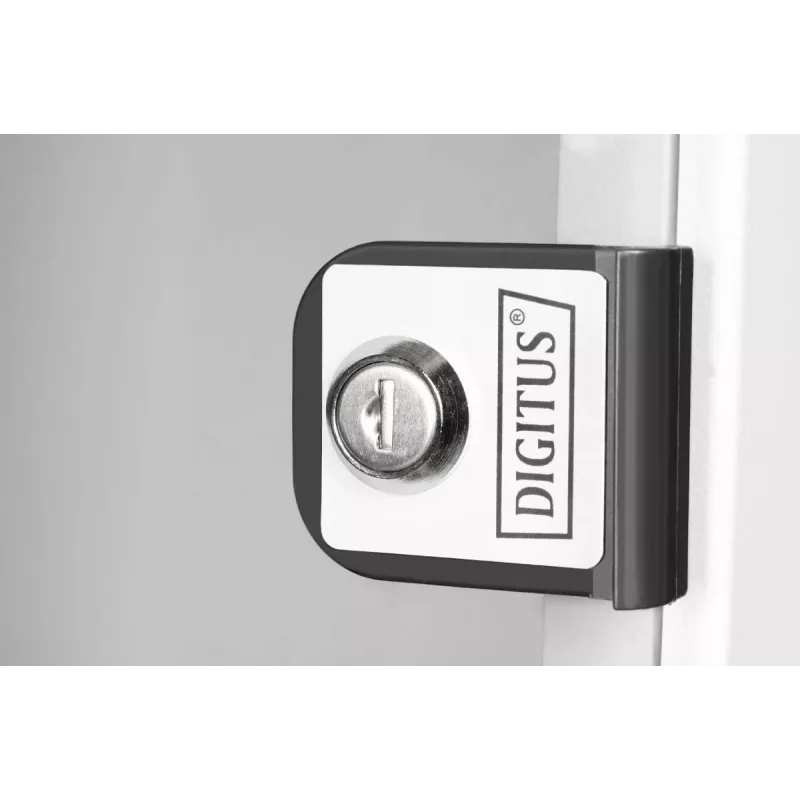

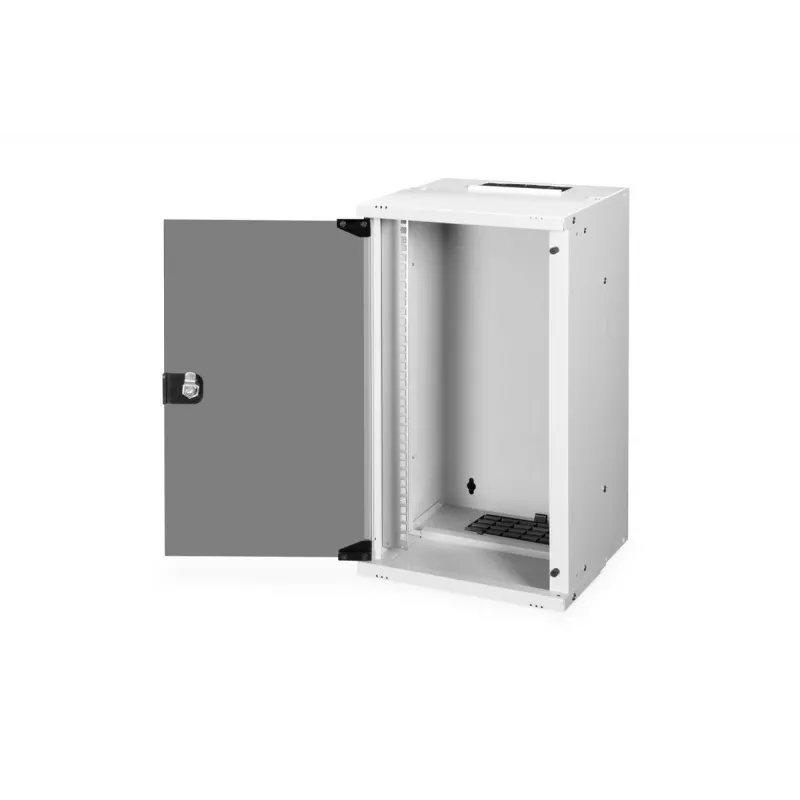

• Features: Full glass door, adjustable 10" profile rails, roof and floor cable entry, keyed lock

How to use

Unpack the optimized flat pack and follow the included step-by-step assembly instructions to mount the side panels, roof and base. Install the adjustable 10" profile rails at the required depth for your equipment, fit the full glass door and secure the cabinet to a suitable wall using appropriate fasteners for the wall material and expected load. Route network and power cables through the roof or floor cable entries and mount patch panels, switches or other 10" devices on the rails. Lock the door with the supplied key to protect installed equipment.

Recommendations

Install the cabinet on a load-bearing wall using anchors rated for the combined weight of the cabinet and installed equipment. Ensure adequate ventilation for heat-dissipating devices and avoid placing high-heat equipment in confined, unventilated spaces. Check local regulations and building rules for indoor network cabinet installation.
