DIGITUS caja de montaje en pared 312x300mm (10") 9U 464x312x300 mm negro

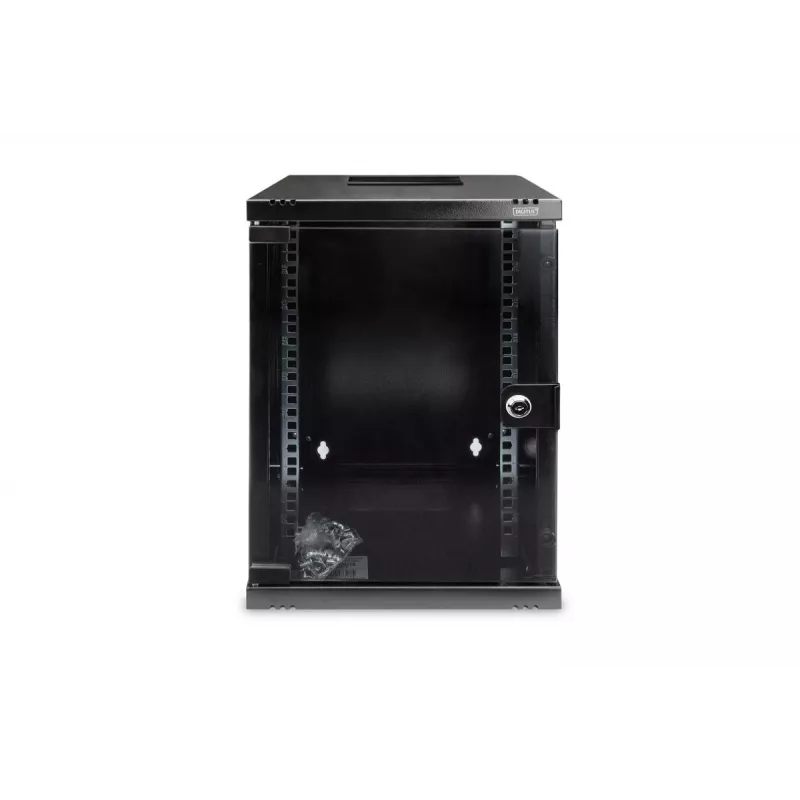

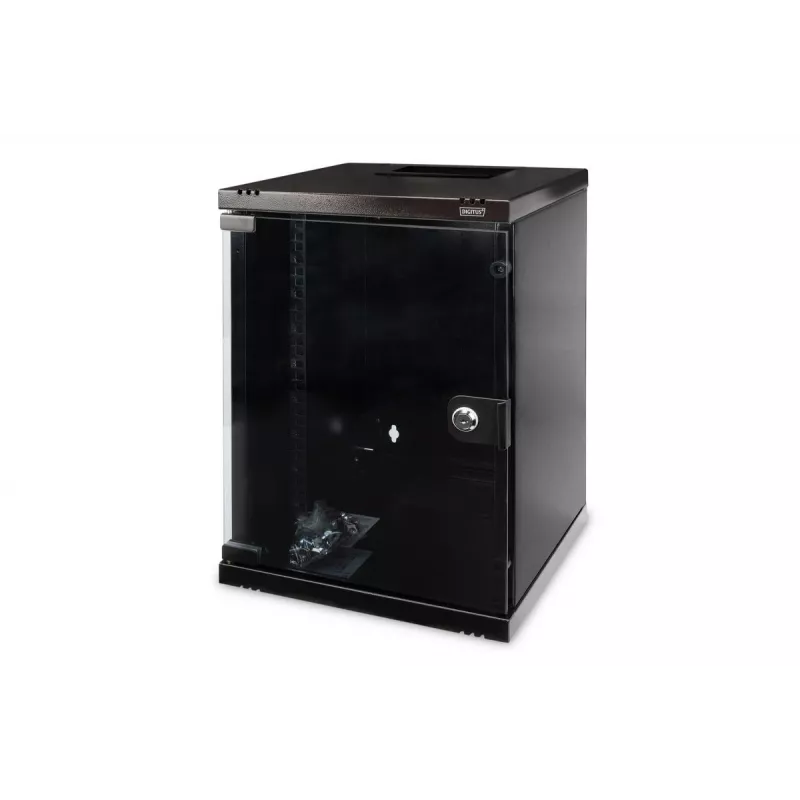

The DIGITUS Wall Mounting Cabinet DN-10-09U-B is a compact 9U wall-mounted rack for indoor IT installations. With external dimensions of 312 × 300 × 464 mm and a maximum load capacity of 30 kg, this black cabinet (RAL 9005) is intended for tidy installation of networking equipment in offices, small server rooms or sub-distribution points. The enclosure is manufactured from sheet steel up to 1.5 mm thick, features a full glass door, adjustable 10" galvanized profile rails with unit markings, and brush-type cable entries in the top and bottom. The product meets IP20 requirements and is designed for easy assembly and space-saving wall mounting.

Advantages

The cabinet provides a compact footprint and flexible mounting options thanks to adjustable depth rails and switchable door hinges. Its robust sheet-steel construction with electrostatic powder coating offers durable surface protection, while the full glass door allows visual inspection without opening. Built-in brush cable entries and labeled 10" rails simplify cable management and equipment installation. The collapsible design permits full disassembly for transport or tight installation spaces.

Suitable for

• Office network equipment and patch panels
• Small server or communications points in commercial buildings
• Sub-distribution units and constrained-space installations
• Home lab or small business IT racks

Key specifications

• Model: DN-10-09U-B
• Rack capacity: 9U
• External dimensions (W×D×H): 312 × 300 × 464 mm
• Maximum mounting depth: 240 mm
• Maximum load: 30 kg
• Material: sheet steel (up to 1.5 mm)

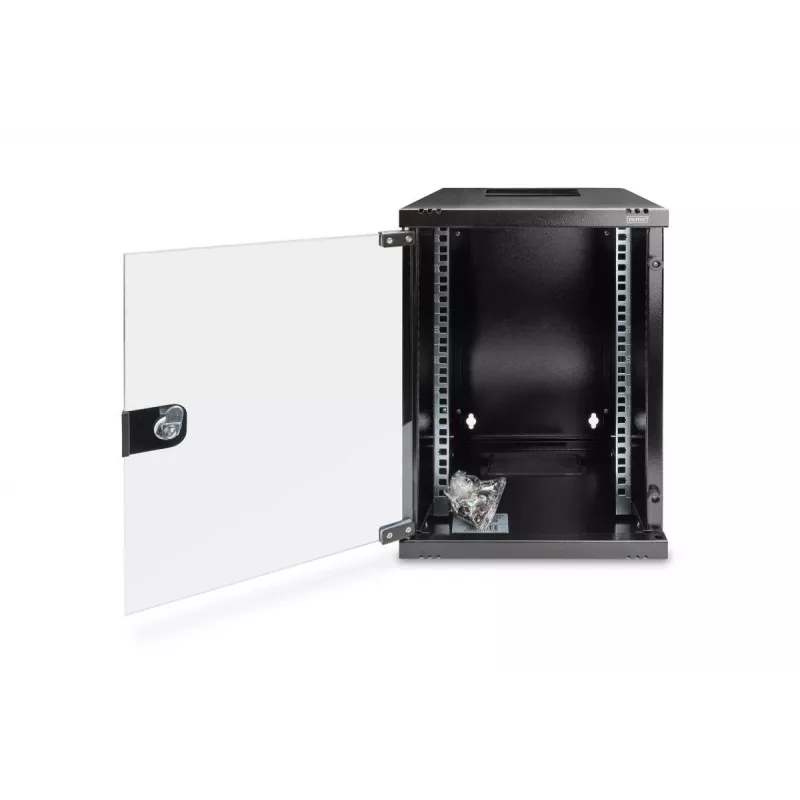

• Door: full glass, hinges switchable
• Cable entry: brush seals top and bottom
• Protection rating: IP20
• Colour: Black (RAL 9005)

How to use

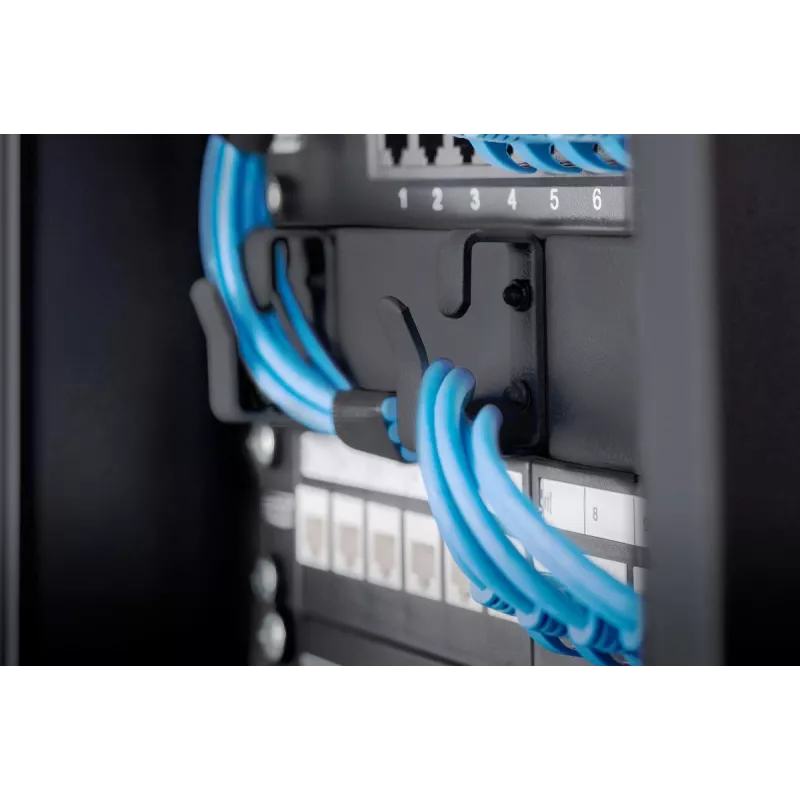

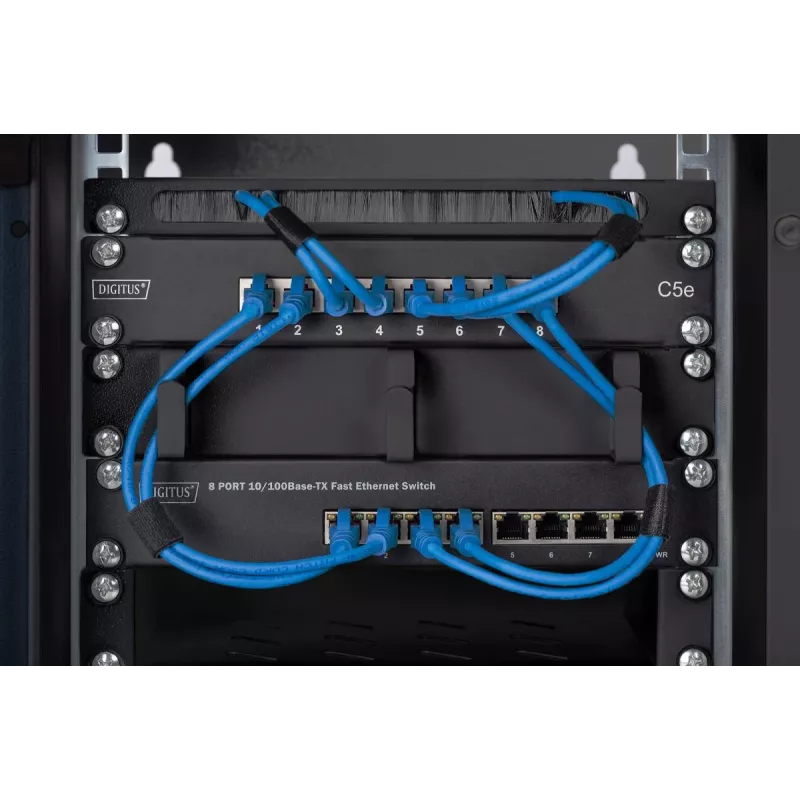

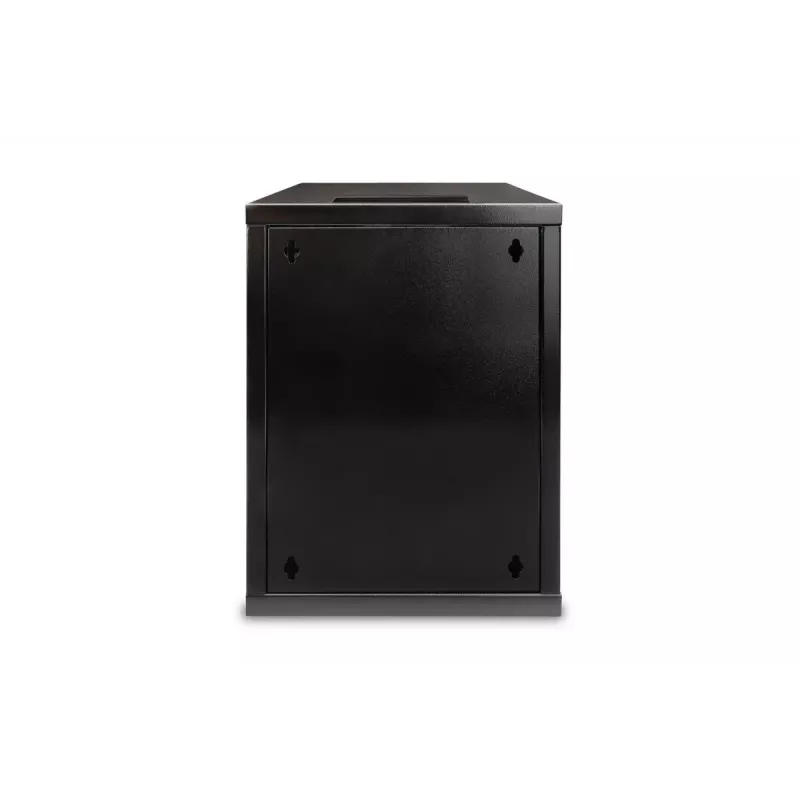

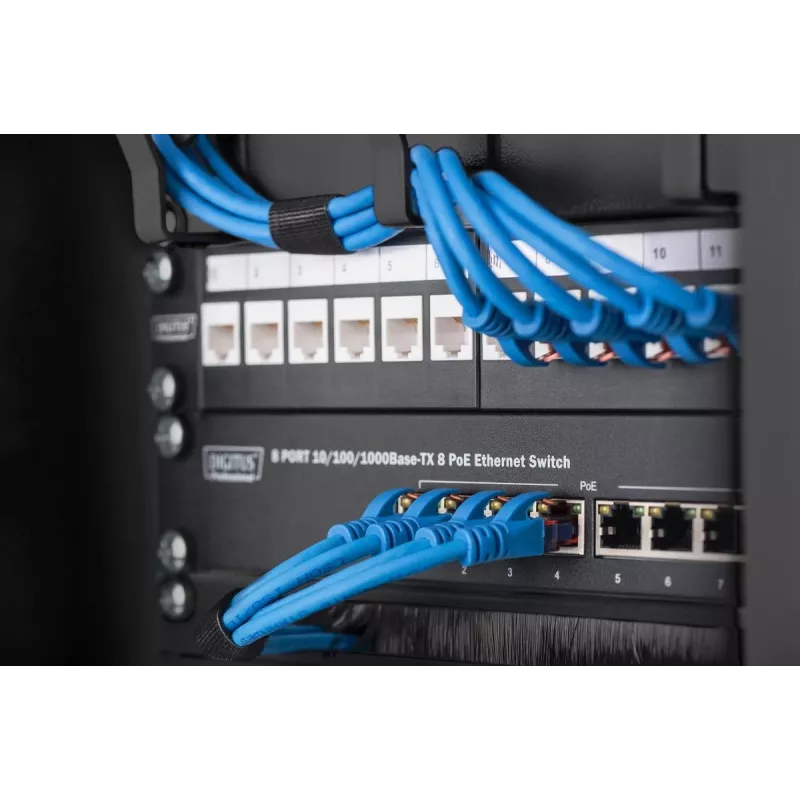

Mount the cabinet securely to a suitable load-bearing wall using appropriate fasteners for the wall material and the cabinet mass. Adjust the internal 10" profile rails to the required mounting depth and fix your 19" compatible devices or patch panels using standard rack screws. Route network and power cables through the brush-type entries at the top or bottom to reduce dust ingress and keep cabling neat. If necessary, disassemble the cabinet following the supplied assembly instructions for transport or to fit it into narrow entryways.

Recommendations

Install in a dry indoor environment consistent with IP20 protection, ensure ventilation or active cooling for heat-producing equipment, and do not exceed the 30 kg maximum load. Use appropriate wall fixings and follow local electrical and safety regulations when connecting powered equipment.
