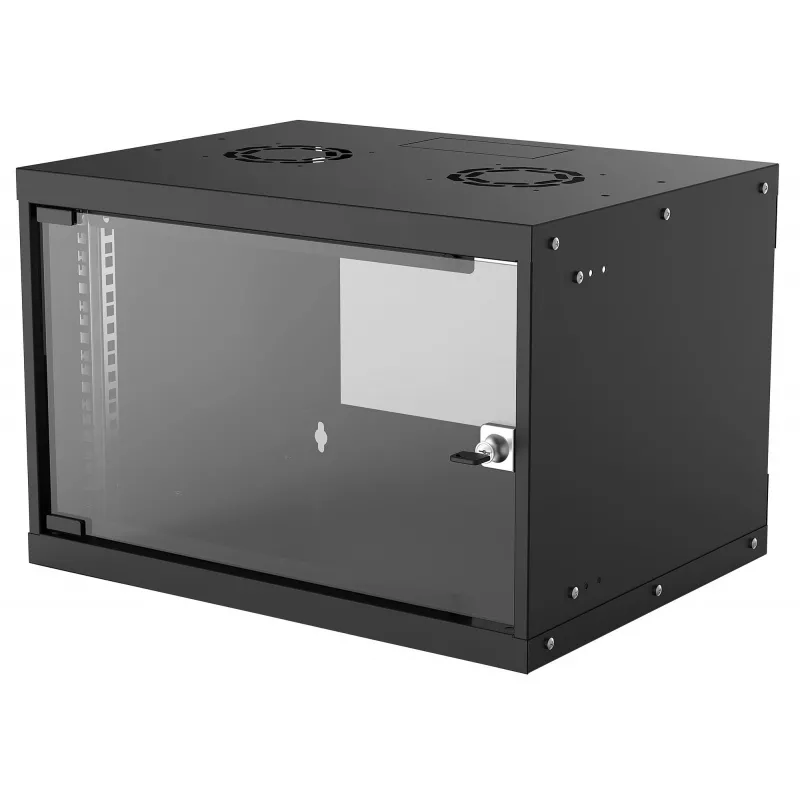

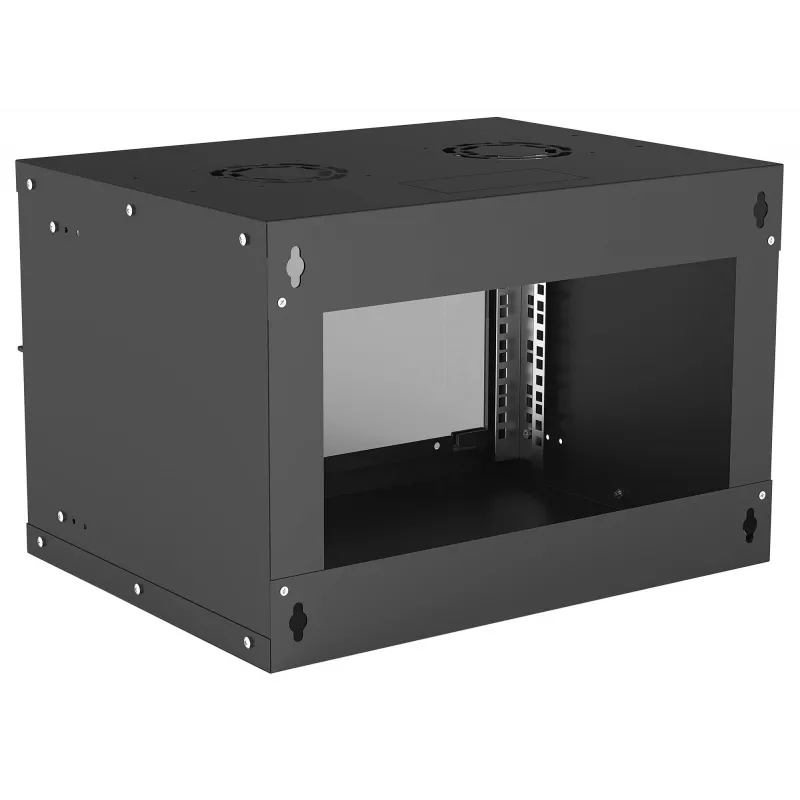

Armario de red de pared INTELLINET 714143 — 6U 19", 540×400×353 mm, acero galvanizado, frente de cristal, IP20, máx. 50 kg

The Intellinet Wall Mount Rack 714143 is a 6U wall-mount cabinet designed for secure and space-efficient storage of 19" network equipment. Constructed from cold-rolled, galvanized steel with a reversible tempered-glass front door, the cabinet offers an IP20 protection rating and a usable depth suitable for common networking devices. With a load capacity of up to 50 kg and a compact footprint, it provides visible access to installed equipment while fitting into limited-space environments.

Advantages

This 6U Intellinet wall-mount cabinet combines durable steel construction with a tempered-glass door to allow visual monitoring of equipment without opening the cabinet. The reversible door increases installation flexibility in tight spaces. The unit’s IP20 rating protects internal components from incidental contact and larger solid objects, and the cabinet supports standard 19" rack-mount devices. It is lightweight for its class and includes a three-year warranty for added product assurance.

Suitable for

• Small office or retail network equipment (switches, patch panels, routers)
• Telecom closet installations with limited wall space
• Environments requiring visible, secured mounting of 19" devices

Key specifications

• Brand: INTELLINET
• Model / MPN: 714143
• Rack capacity: 6U, 19" standard
• External dimensions (H×W×D): 353 mm × 540 mm × 400 mm
• Usable depth: 340 mm
• Maximum load: 50 kg
• IP rating: IP20
• Material: Cold-rolled, galvanized steel with tempered-glass door
• Colour: Black
• Weight: 8.91 kg
• Warranty: 3 years

How to use

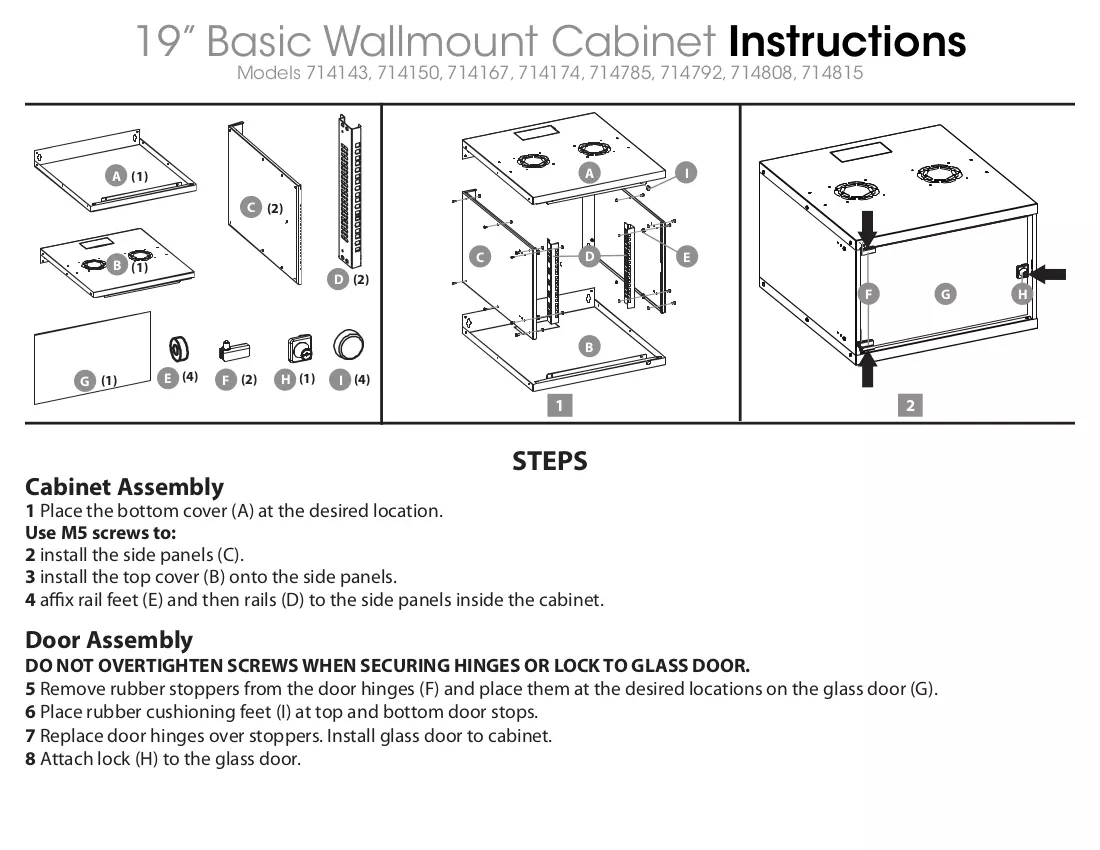

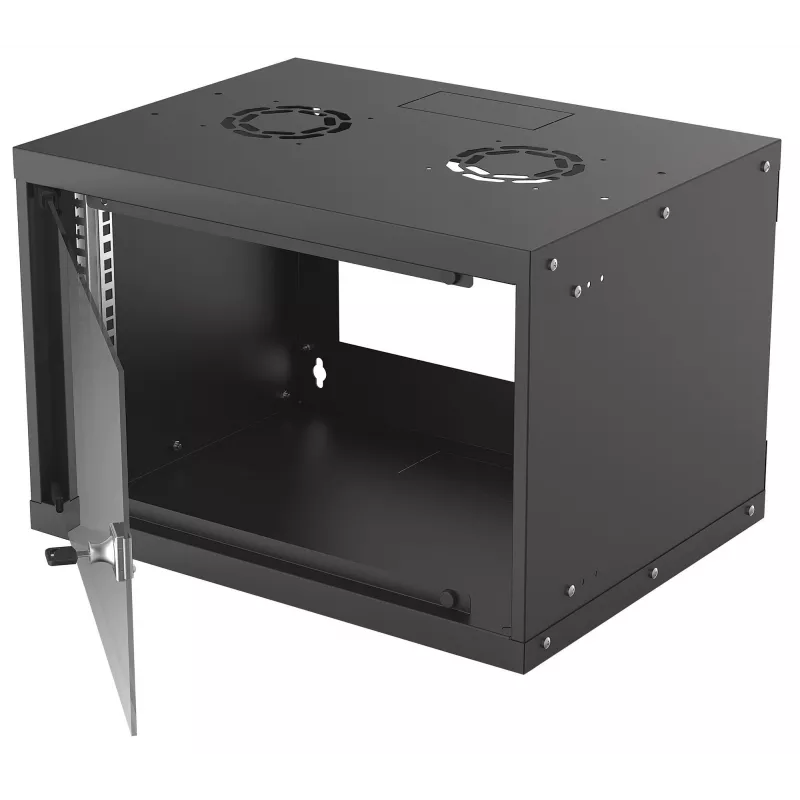

Mount the cabinet on a suitable load-bearing wall using appropriate fixings (wall-mount hardware not included). Install 19" equipment into the rack rails, checking that the usable depth (340 mm) accommodates each device and that the total installed weight does not exceed 50 kg. Use the reversible tempered-glass door to set the opening direction before final installation. For cable routing, plan entry and exit points so cables are organised without stressing connectors.

Recommendations

Install the cabinet on a solid wall and verify the maximum load and usable depth before mounting equipment. Ensure adequate ventilation and avoid placing heat-generating devices in a fully enclosed space without additional airflow. Use suitable earthing/grounding practices as required for network installations.
