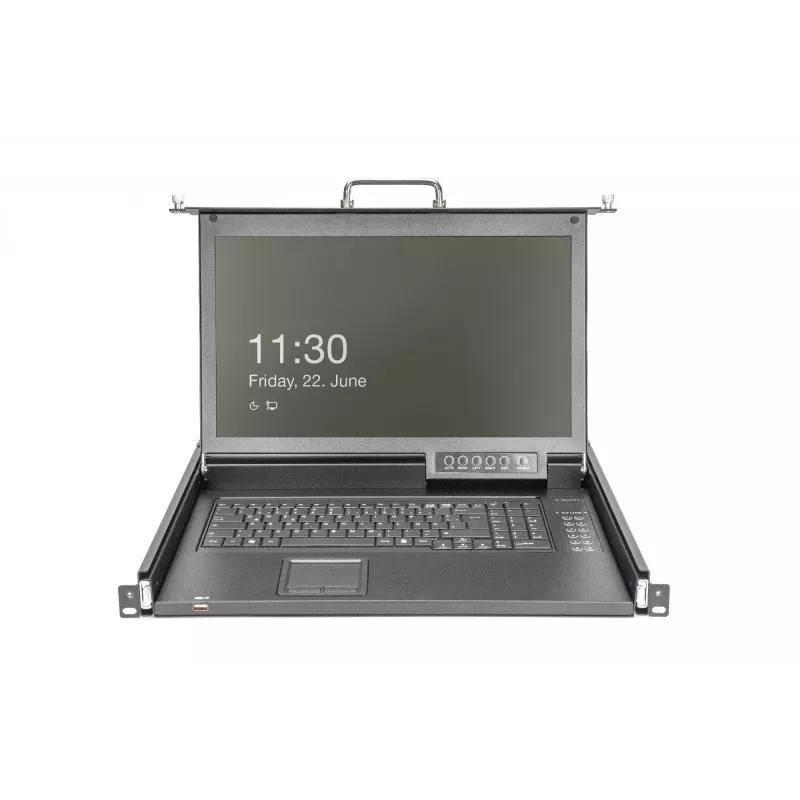

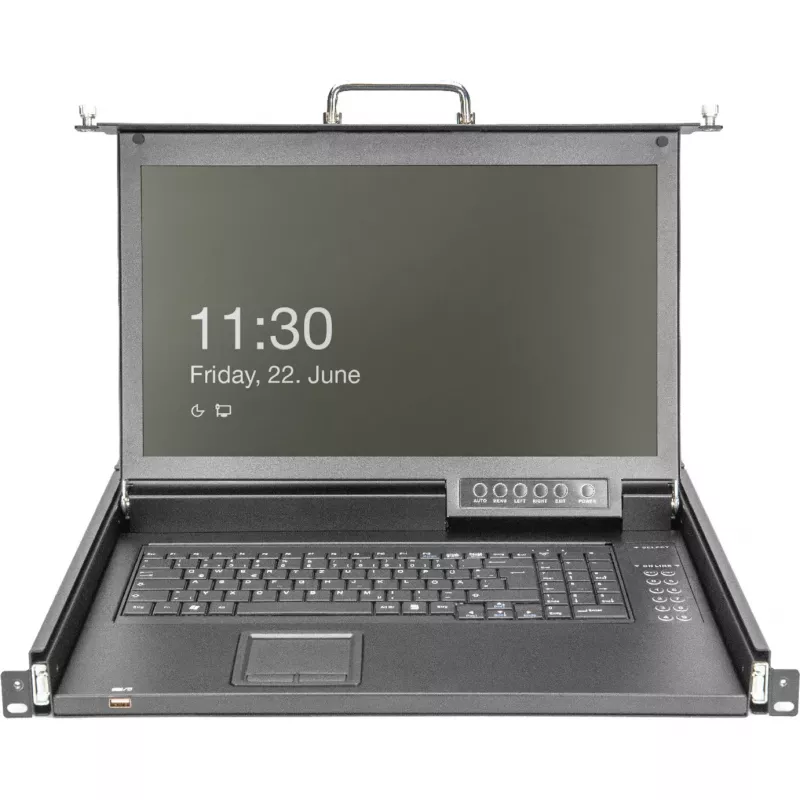

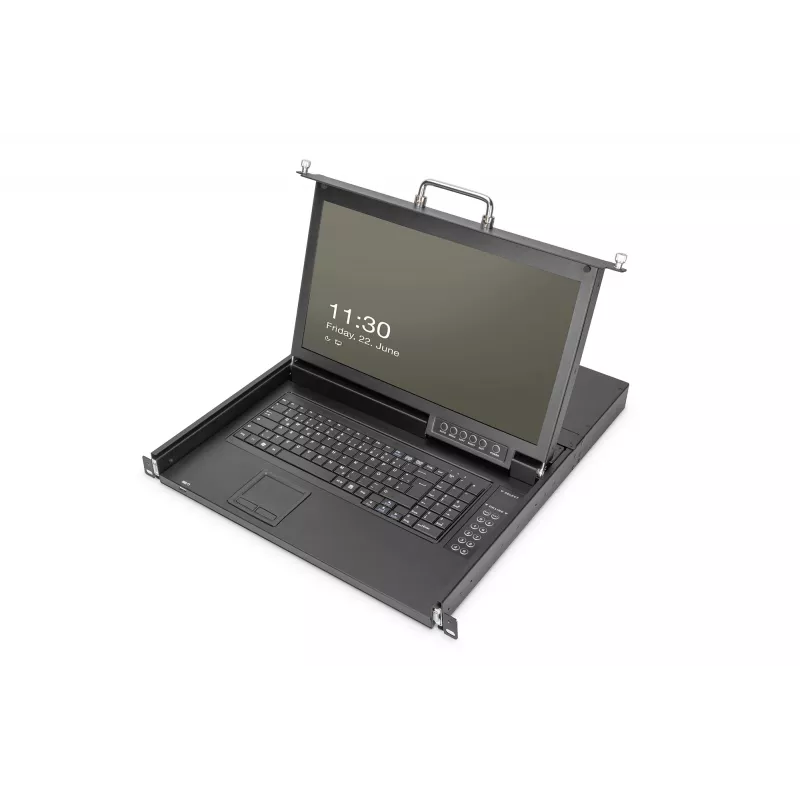

DIGITUS Consola KVM LCD HD modular con TFT de 17 pulgadas, conexión KVM CAT 5 de 16 puertos, touchpad, distribución de teclado alemán

Managing multiple servers in a data center or server room often means juggling separate keyboards, monitors, and mice, leading to clutter and inefficiency. The DIGITUS DS-72220-5GE solves this by integrating a 17-inch HD LCD display, keyboard with German layout, and touchpad into a single 1U rack-mountable console. With a built-in 16-port CAT 5 KVM switch, it allows you to control up to 16 servers or computers from one central location, simplifying your workspace and boosting productivity.

Who is it for

This KVM console is ideal for IT administrators, data center managers, and system integrators who need reliable, space-saving access to multiple servers. It is particularly suited for environments where German keyboard layout is required, such as offices in Germany, Austria, or Switzerland, and where rack space is at a premium.

Main features

• 17-inch TFT LCD display with 1280 x 1024 resolution for crisp, clear visuals.
• Integrated 16-port KVM switch using CAT 5 (RJ45) connections, supporting distances up to 40 meters.
• German keyboard layout and touchpad for intuitive control.
• 1U rack-mountable design fits standard 19-inch racks, saving valuable space.
• On-Screen Display (OSD) for easy server selection and configuration.
• Supports daisy chaining of up to 8 KVM switches for expanded capacity.
• Hot-plug support allows adding or removing servers without downtime.
• Password protection ensures secure access to connected systems.
• Compatible with Windows, Linux, Mac, and Sun operating systems.
• Metal housing for durability in demanding environments.

Specifications

• Display: 17-inch TFT LCD, SXGA (1280 x 1024)
• KVM Ports: 16 x RJ45 (CAT 5)
• Keyboard Layout: German (DE)
• Pointing Device: Touchpad
• Rack Height: 1U
• Max KVM Distance: 40 m via CAT 5
• Daisy Chain: Yes, up to 8 switches
• OSD: Yes
• Hot-Plug: Yes
• Security: Password protection
• Power Input: 100-240V AC, 50/60Hz
• Housing Material: Metal
• OS Compatibility: Windows, Linux, Mac, Sun
• Local Users: 1

Tips

To maximize the reach of your KVM setup, use high-quality CAT 5e or CAT 6 cables for connections up to 40 meters. When daisy chaining multiple switches, ensure each unit is assigned a unique address via the OSD to avoid conflicts. For enhanced security, regularly update the console's password and restrict physical access to the rack.
