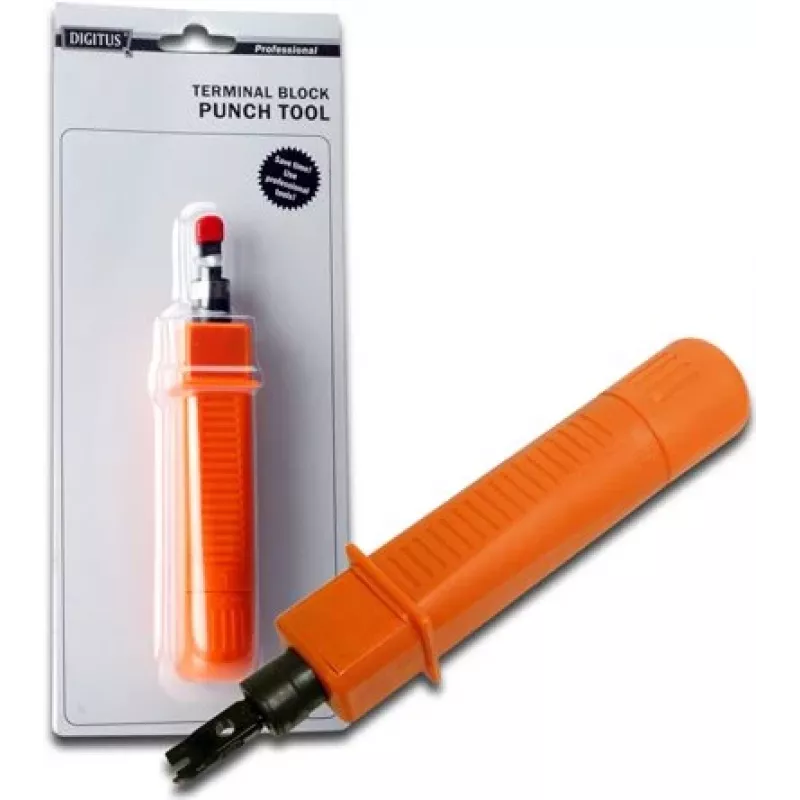

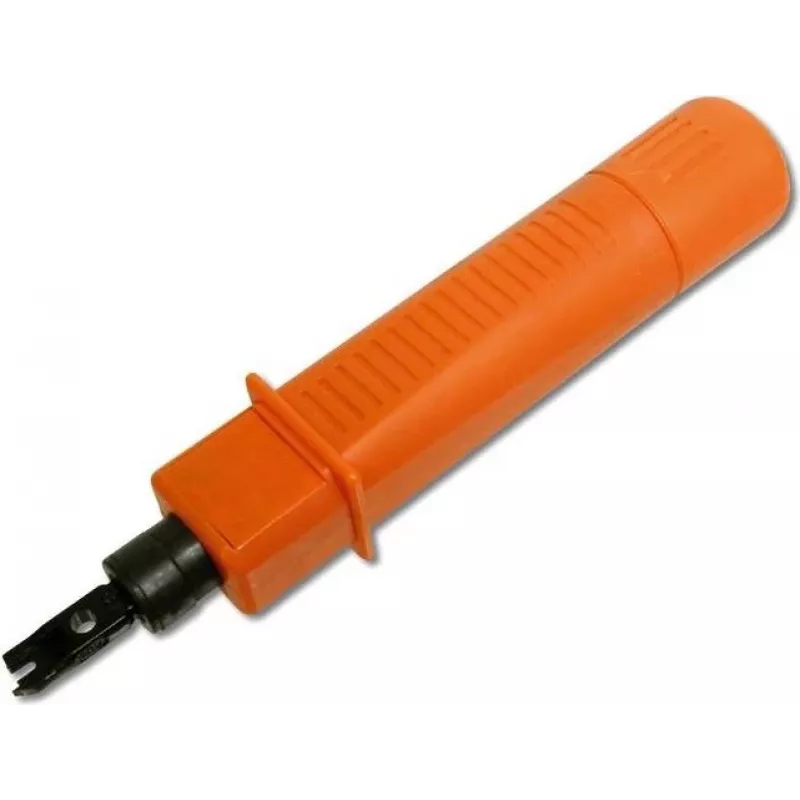

DIGITUS DN-94003 herramienta de inserción LSA para bloques de conexión Krone y LSA, 22-26 AWG

The DIGITUS DN-94003 is a professional LSA punch down tool engineered for fast, reliable termination of Krone-style and LSA-Plus IDC terminal blocks. Unlike basic insertion tools, it combines a spring-loaded impact mechanism with an integrated cutting blade, delivering consistent seating and clean wire trimming in a single motion. This makes it an essential instrument for structured cabling, patch panel installation, and telecommunication work.

Highlights

• Spring-loaded impact mechanism ensures uniform termination force
• Integrated hardened steel cutting blade trims excess wire automatically
• Ergonomic handle design reduces hand fatigue during repetitive use
• Compatible with LSA-Plus and Krone-style IDC terminal blocks
• Suitable for 22-26 AWG solid UTP/STP network cables

In daily use

Place the wire into the terminal block slot, position the tool over the contact, and press down. The spring mechanism drives the wire into the insulation displacement contact while the blade cuts the protruding end. The result is a secure, gas-tight connection ready for Cat.3 through Cat.7 installations. The robust metal body and durable plastic handle withstand the demands of daily field work.

Full specifications

• Tool type: LSA punch down tool
• Application: Termination of LSA-Plus / Krone-style IDC terminal blocks
• Cable compatibility: UTP/STP network cables
• Wire gauge compatibility: 22-26 AWG solid wire
• Functions: Presses wire into terminal block, cuts excess wire
• Cutting mechanism: Integrated cutting blade
• Blade material: Hardened steel
• Handle material: Durable plastic
• Body material: Metal
• Spring mechanism: Spring-loaded for consistent termination
• Connector standard: Compatible with LSA-Plus and similar IDC modules
• Network standard compatibility: Suitable for Cat.3, Cat.5, Cat.5e, Cat.6, Cat.6a, Cat.7 installations
• Usage environment: Telecommunications, network cabling, patch panel installation
• Colour: Black/Blue

Final note

A dependable punch down tool that combines precision, durability, and ergonomic comfort for professional network termination tasks.
