DIGITUS Inyector PoE+, 802.3at 10/100/1000 Mbps salida máx. 48V, 30W

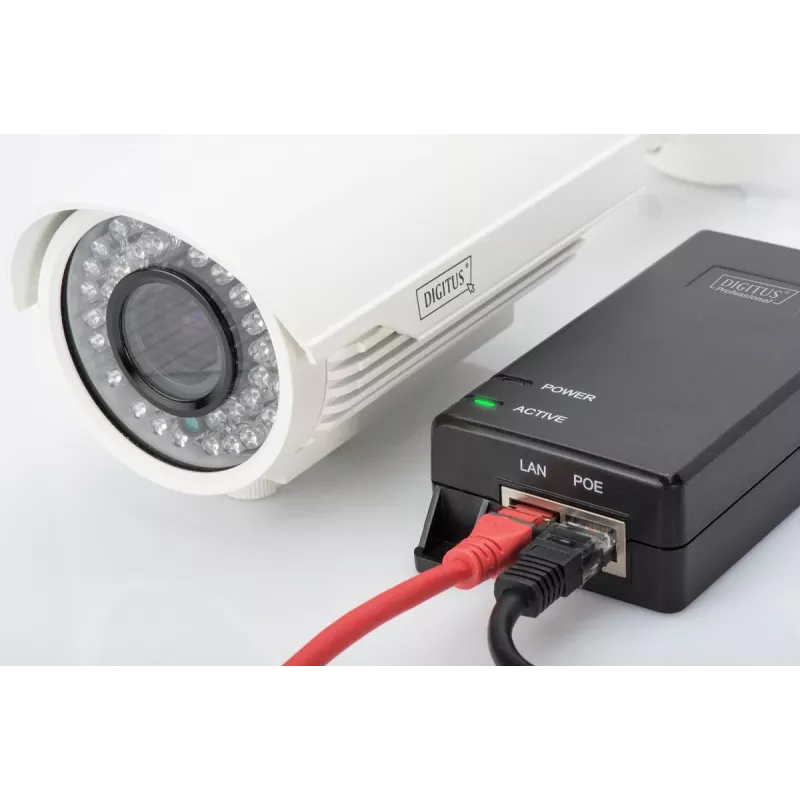

The PoE Injector Digitus DN-95103-2 supplies power and data over a single Ethernet cable to PoE-capable devices such as wireless access points, IP phones and network cameras. It is IEEE 802.3at (PoE+) and IEEE 802.3af compatible, delivers up to 30 W output power with an output voltage of 48 V, and supports Gigabit Ethernet data rates (10/100/1000 Mbit/s). With a compact form factor (140 x 63 x 32.5 mm) and low self-consumption (maximum 7 W), the injector enables clean installations and network extensions without additional power lines.

Advantages

The Digitus PoE injector combines power and data transmission in a single cable to reduce cabling effort and installation time. It supports common PoE standards (IEEE 802.3at/af) for broad device compatibility and provides an output power of 30 W and 48 V DC to power even more demanding devices. The device supports transmission distances up to 100 m over a standard Ethernet run and can be extended to up to 400 m with additional PoE extenders. Its plug-and-play design requires no configuration, and the compact, black housing ensures discreet installation.

Suitable for

• Wireless access points (Wi‑Fi APs)
• VoIP/IP telephones
• IP network cameras
• Other IEEE 802.3af/at PoE-capable devices

Key specifications

• Model: Digitus DN-95103-2
• PoE standards: IEEE 802.3at (PoE+) and IEEE 802.3af
• Output power: 30 W
• Output voltage: 48 V DC
• Data rates: 10/100/1000 Mbit/s (Gigabit Ethernet)
• Transmission range: up to 100 m (extendable to 400 m with extenders)
• Power consumption (self-consumption): max. 7 W

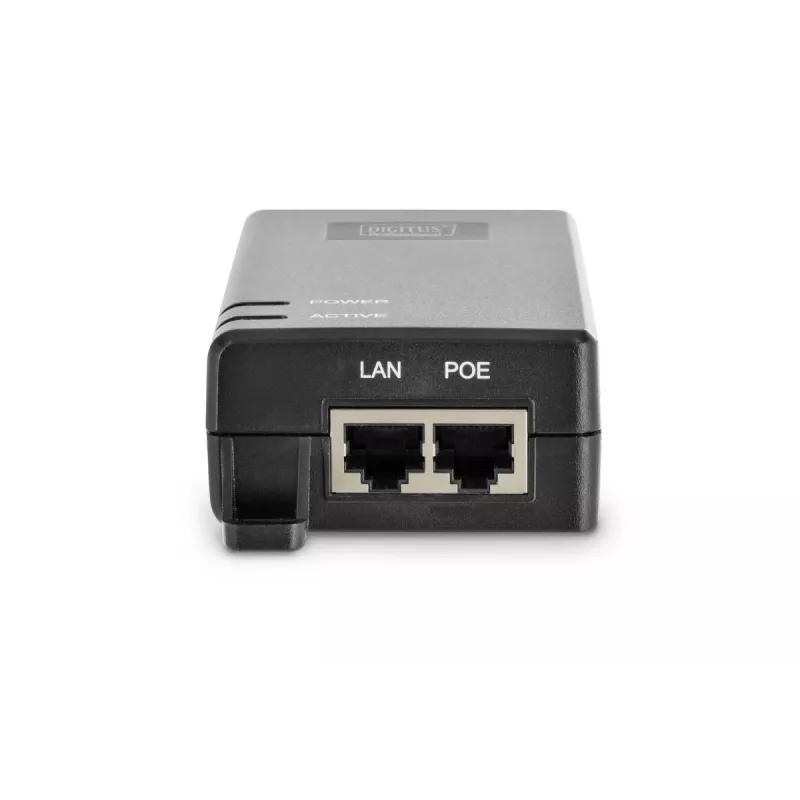

• Ethernet ports: 2 x RJ-45
• Dimensions: 140 x 63 x 32.5 mm
• Weight: 0.2 kg
• Color: Black

How to use

Connect one Ethernet cable from your network switch or router to the data input port of the PoE injector and connect the second Ethernet cable from the injector's PoE output to the PoE-capable device. Plug the injector into a mains outlet to power it. The injector operates in plug-and-play mode and requires no software configuration. For longer runs beyond 100 m, use compatible PoE extenders according to the extender manufacturer's instructions.

Recommendations

Install the injector in a ventilated, dry location and use quality Cat5e or Cat6 cables for Gigabit performance. Verify device PoE class and power requirements to ensure the 30 W output is sufficient. For distances over 100 m, plan and test with approved PoE extenders to maintain stable data and power delivery.
