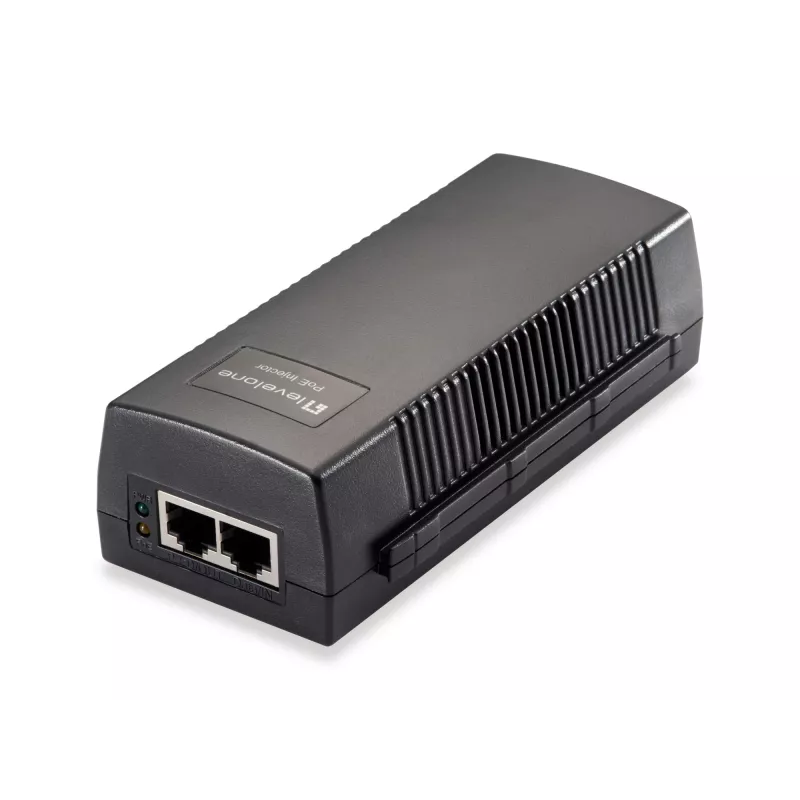

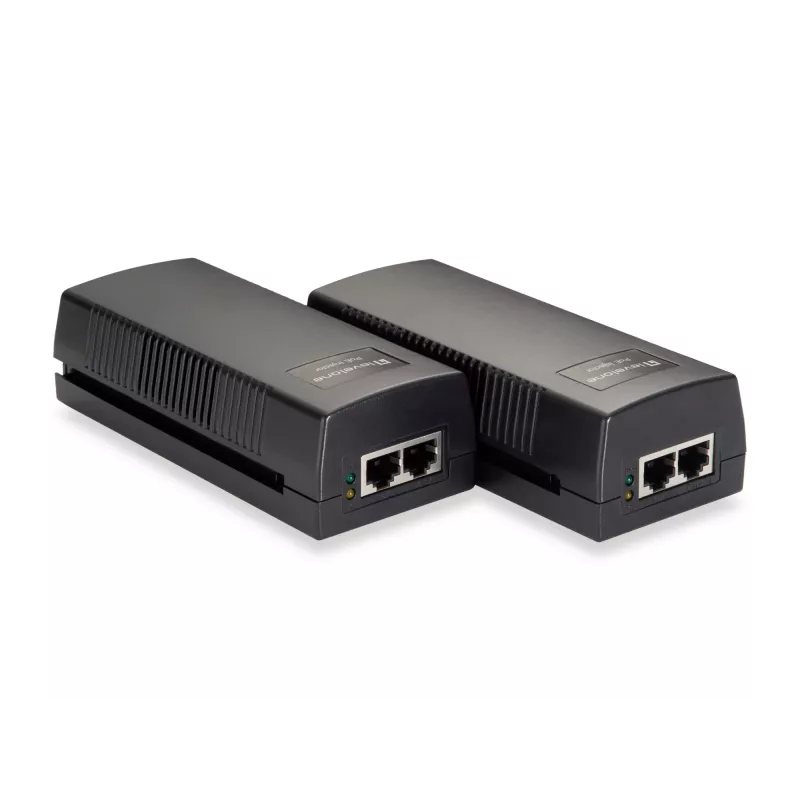

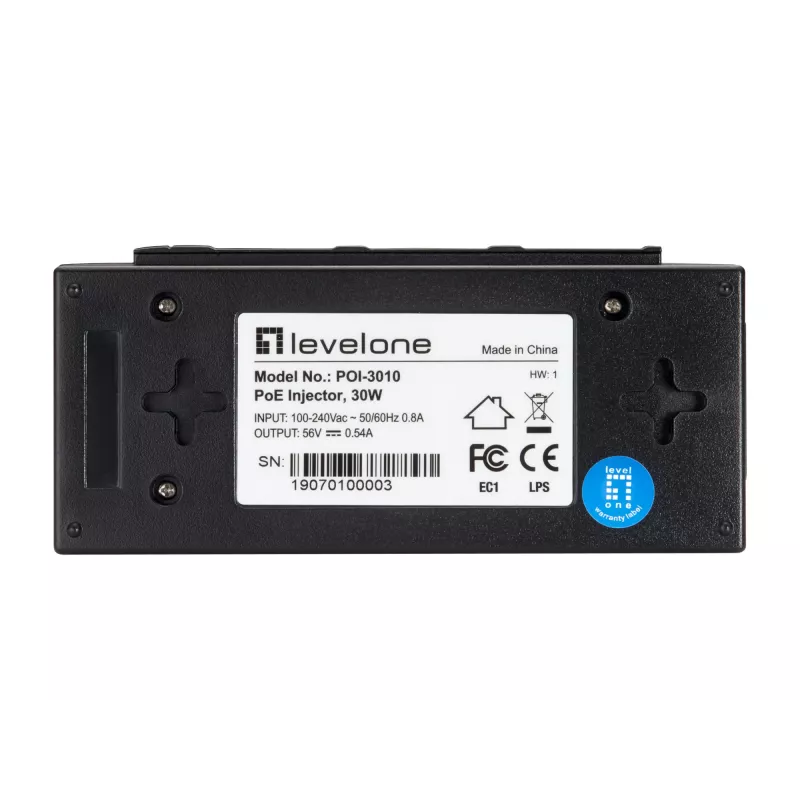

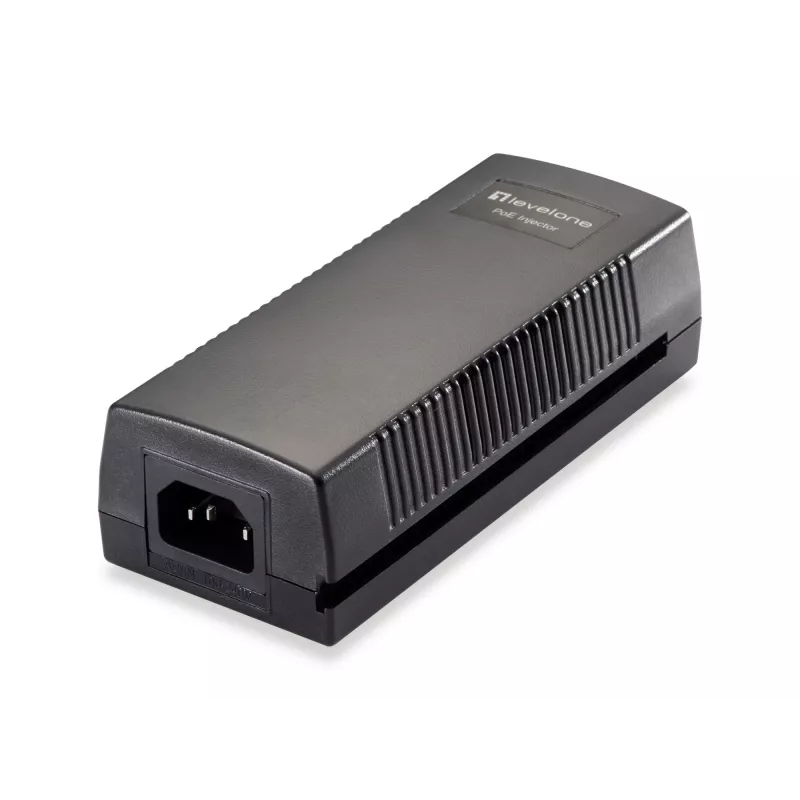

LevelOne POI-3010 Adaptador PoE Fast Ethernet, Gigabit Ethernet 52 V

The LevelOne POE-3010 is a single-port PoE adapter that supplies up to 30 W of power to remote Powered Devices (PD) while carrying network data. Compliant with IEEE 802.3at and backward compatible with IEEE 802.3af, the POE-3010 supports 10/100/1000 Mbit/s Ethernet links and operates at a PoE output voltage of 52 V. Its compact black housing includes LED indicators for PoE and power status and is designed for installations with a maximum cable distance of 100 m.

Advantages

The POE-3010 delivers high-power PoE in a single-port, compact form factor that is compatible with both Fast Ethernet and Gigabit Ethernet devices. It meets IEEE 802.3at standards for reliable power delivery and remains backward compatible with legacy PoE devices. Built-in LEDs provide simple status monitoring, and the adapter supports typical network cabling distances up to 100 m.

Suitable for

• Wireless access points, including IEEE 802.11ac models
• PTZ IP cameras and videophones
• Wi-MAX and other emerging 1000Base-T network equipment

Key specifications

• Model: POI-3010
• Brand: LEVELONE

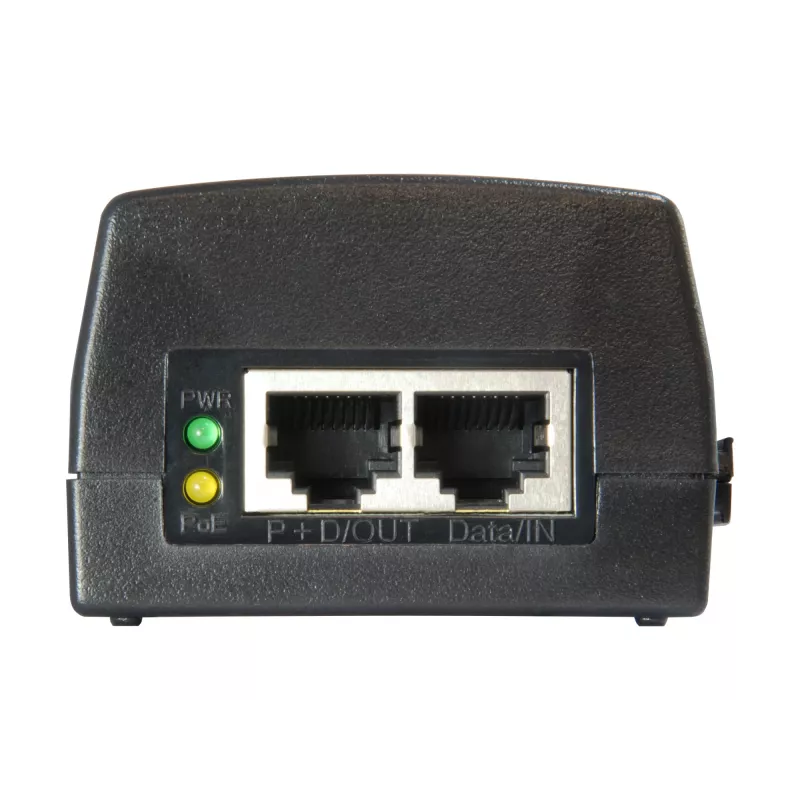

• Ports: 2 × RJ-45 (data + PoE pass-through and uplink)
• Data rates: 10/100/1000 Mbit/s
• PoE standard: IEEE 802.3at (compatible with IEEE 802.3af)
• PoE output voltage: 52 V
• Maximum PoE power: up to 30 W
• Cable distance: up to 100 m
• Color: Black
• Weight: 0.35 kg
• EAN: 4015867221815

How to use

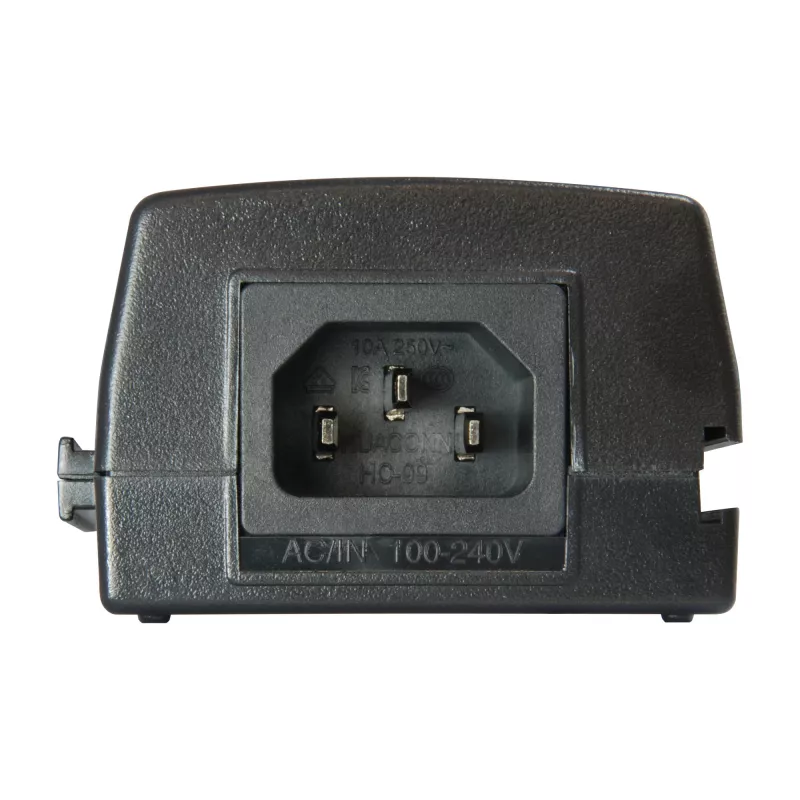

Connect the POE-3010 to a network switch or router using the uplink RJ-45 port, then attach the PoE-powered device (for example, an access point or IP camera) to the PoE output port. Ensure the connected PD supports IEEE 802.3at or 802.3af. Use standard Cat5e or better Ethernet cabling and keep the cable length within 100 m. Power the adapter from an appropriate AC source if required and verify operation using the PoE and power LEDs.

Recommendations

To ensure stable operation and safe power delivery, use certified Ethernet cables (Cat5e or higher), confirm device compatibility with IEEE 802.3at/802.3af standards, and observe the 100 m maximum cable length. For installations requiring more than 30 W, select a higher-power PoE source or a compatible PSE with sufficient budget.
