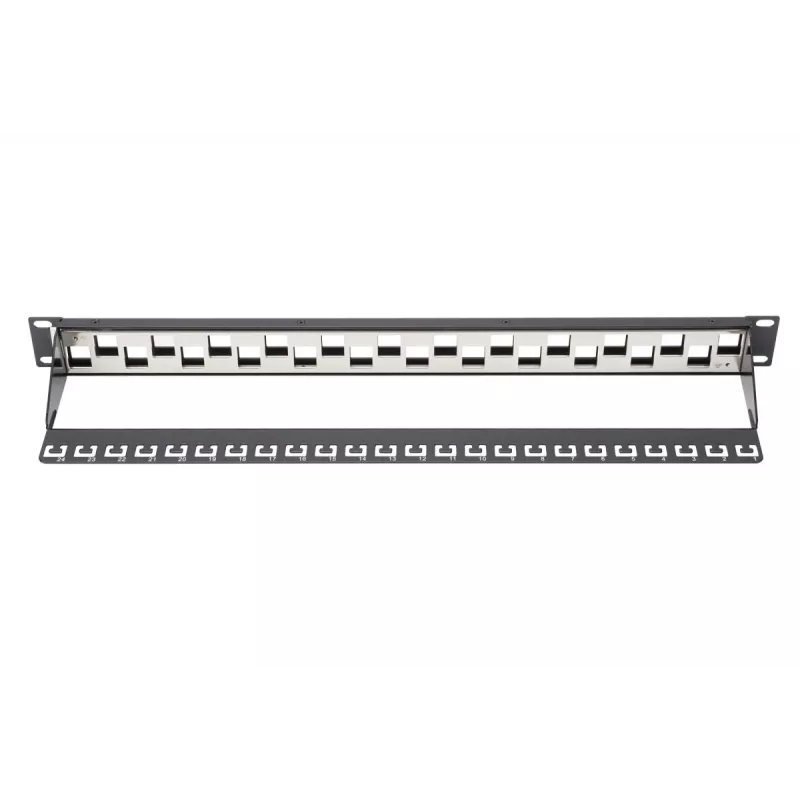

DIGITUS Modular Patch Panel, apantallado 24-Port, blank, 1HE, montaje en rack, desplazado, color negro RAL 9005

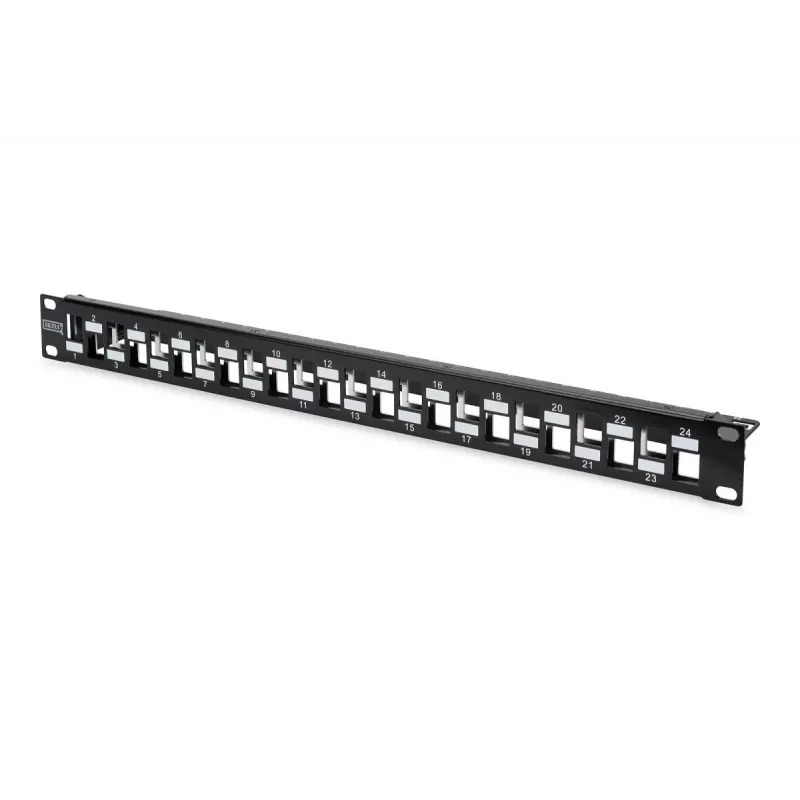

The DIGITUS Modular Patch Panel DN-91412 is a 24-port staggered keystone panel designed for 19" (483 mm) rack mounting. Constructed from 1.5 mm cold-rolled galvanized steel, it supports Cat6a cabling and 10 Gigabit Ethernet with a maximum data rate of 10000 Mbit/s. The staggered port arrangement improves attenuation between adjacent transmission channels and the panel is available in black (RAL 9005).

Advantages

The staggered layout reduces crosstalk and improves signal separation in high-density installations. Solid cold-rolled steel construction provides mechanical stability and reliable rack mounting. Compatibility with Cat6a keystone modules ensures support for 10 Gigabit Ethernet and future-proofed cabling infrastructure.

Suitable for

• Server rooms and data centers
• Network racks in offices and telecom closets
• Structured cabling installations using Cat6a

Key specifications

• Manufacturer: DIGITUS
• Model: DN-91412
• Ports: 24 staggered keystone ports
• Cable category: Cat6a
• Maximum data rate: 10000 Mbit/s (10 Gbps)
• Material: 1.5 mm cold-rolled galvanized steel
• Colour: Black (RAL 9005)
• Rack compatibility: 19" / 483 mm
• Dimensions (W×H×D): 482.6 × 43.6 × 92.7 mm
• MPN: DN-91412
• EAN: 4016032295105

How to use

Mount the patch panel into a 19" rack using the front mounting holes. Install Cat6a keystone modules into the staggered ports and terminate each cable according to the keystone module specifications and T568A/B wiring standard. Label ports for easy identification and route patch cords to switches or other network equipment to establish connections.

Recommendations

Ensure proper cable management and maintain specified bend radii for Cat6a cables to preserve 10 Gbps performance. Use compatible keystone jacks rated for Cat6a and test each link after installation to verify signal integrity.
