DIGITUS Patch Panel CAT6A EA apantallado, 24 puertos RJ45 protección antipolvo, 8P8C, 0,5U, gris RAL 7035

DIGITUS Patch Panel CAT6A EA apantallado, 24 puertos RJ45 protección antipolvo, 8P8C, 0,5U, gris RAL 7035
DIGITUS Patch Panel CAT6A EA apantallado, 24 puertos RJ45 protección antipolvo, 8P8C, 0,5U, gris RAL 7035
DIGITUS Patch Panel CAT6A EA apantallado, 24 puertos RJ45 protección antipolvo, 8P8C, 0,5U, gris RAL 7035
DIGITUS Patch Panel CAT6A EA apantallado, 24 puertos RJ45 protección antipolvo, 8P8C, 0,5U, gris RAL 7035
DIGITUS Patch Panel CAT6A EA apantallado, 24 puertos RJ45 protección antipolvo, 8P8C, 0,5U, gris RAL 7035
DIGITUS Patch Panel CAT6A EA apantallado, 24 puertos RJ45 protección antipolvo, 8P8C, 0,5U, gris RAL 7035
DIGITUS Patch Panel CAT6A EA apantallado, 24 puertos RJ45 protección antipolvo, 8P8C, 0,5U, gris RAL 7035
DIGITUS Patch Panel CAT6A EA apantallado, 24 puertos RJ45 protección antipolvo, 8P8C, 0,5U, gris RAL 7035
DIGITUS Patch Panel CAT6A EA apantallado, 24 puertos RJ45 protección antipolvo, 8P8C, 0,5U, gris RAL 7035
DIGITUS Patch Panel CAT6A EA apantallado, 24 puertos RJ45 protección antipolvo, 8P8C, 0,5U, gris RAL 7035
DIGITUS Patch Panel CAT6A EA apantallado, 24 puertos RJ45 protección antipolvo, 8P8C, 0,5U, gris RAL 7035
DIGITUS Patch Panel CAT6A EA apantallado, 24 puertos RJ45 protección antipolvo, 8P8C, 0,5U, gris RAL 7035
DIGITUS Patch Panel CAT6A EA apantallado, 24 puertos RJ45 protección antipolvo, 8P8C, 0,5U, gris RAL 7035
DIGITUS Patch Panel CAT6A EA apantallado, 24 puertos RJ45 protección antipolvo, 8P8C, 0,5U, gris RAL 7035
DIGITUS Patch Panel CAT6A EA apantallado, 24 puertos RJ45 protección antipolvo, 8P8C, 0,5U, gris RAL 7035
DIGITUS Patch Panel CAT6A EA apantallado, 24 puertos RJ45 protección antipolvo, 8P8C, 0,5U, gris RAL 7035
75,50 €
Very space-saving (only 0.5U) - With dust protection caps - Future-oriented standards and high-end quality for your network- Slim installation height of only 0.5 U- Up to 48 ports per U possible (2 x 24 port panels)- Dust protection flaps on the RJ45 sockets- 360° shield contacting- Cable clamp for ... Leer más
Stock 1 Código 116896 Marca DIGITUS Modelo DN-91624S-SL-EA-G Garantía 3 años

Envíos y devoluciones

Entrega estimada jueves, 29 de octubre
Te mantendremos informado a través de nuestro sistema de seguimiento detallado
Opciones de pago
Tarjeta bancariaVisaMastercardPayPalApple PayGoogle PayTransferencia bancaria

Very space-saving (only 0.5U) - With dust protection caps - Future-oriented standards and high-end quality for your network

- Slim installation height of only 0.5 U
- Up to 48 ports per U possible (2 x 24 port panels)
- Dust protection flaps on the RJ45 sockets
- 360° shield contacting
- Cable clamp for fixing and routing, reclosable
- Quick-release fastener to secure the housing cover

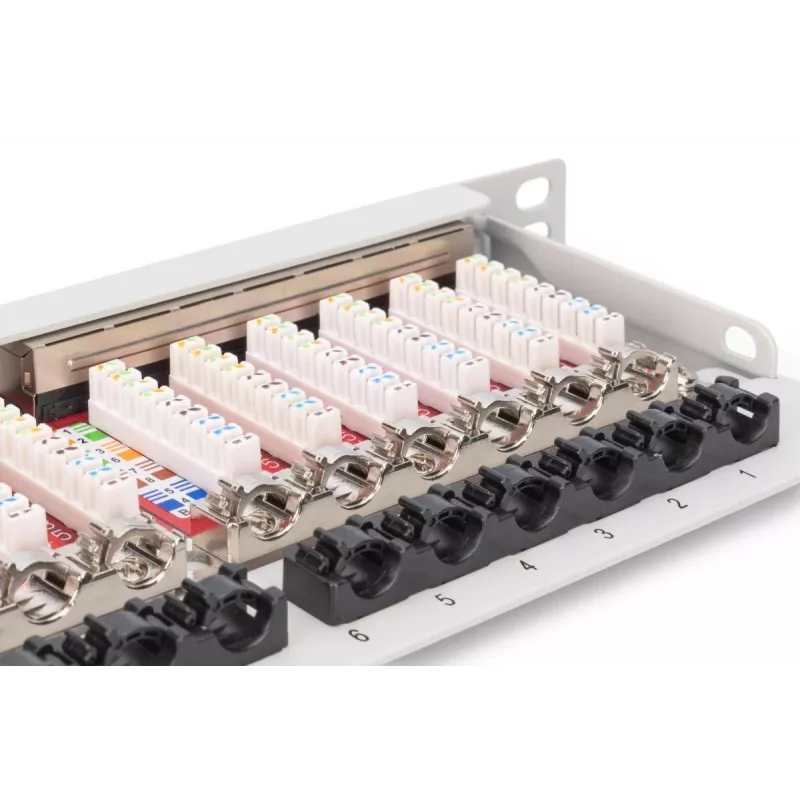

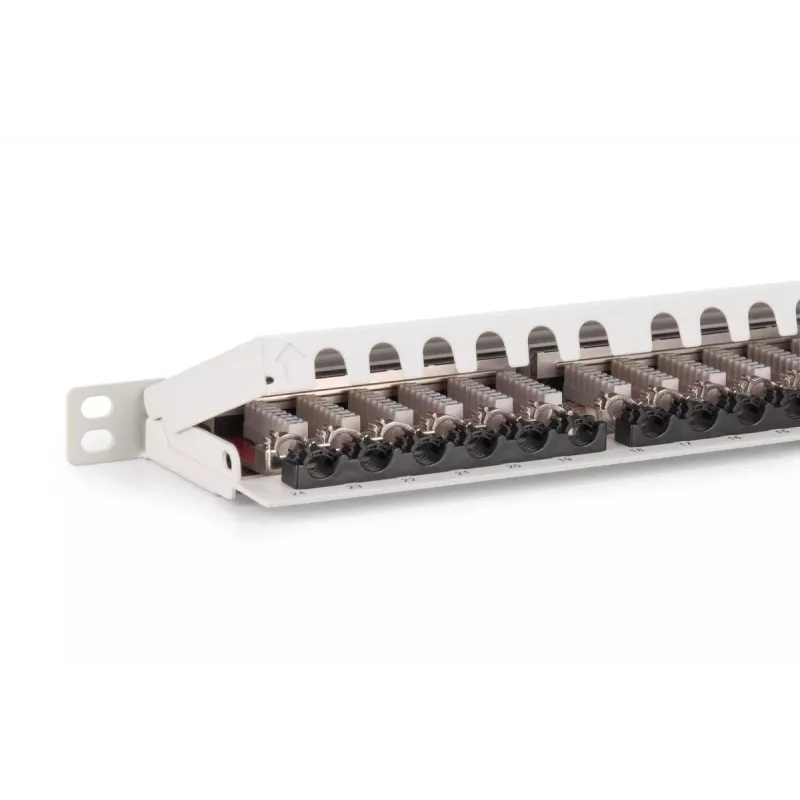

The DIGITUS® 24-port patch panel offers a very high packing density with only 0.5 U. This means that up to 48 ports can be implemented on 1 U with two 0.5 U panels. The patch panel is shielded and equipped with dust protection caps on the RJ45 sockets. The 360° shield contact of the cables ensures the best performance characteristics. The quick-release fastener on the housing ensures easy and tool-free access to the LSA cutting terminals.

Aspectos destacados
  • Transmission characteristics: Category 6A, class EA
  • Application areas: Up to 500 MHz, 10GBase-T
  • Standards: ISO/IEC 11801 2nd Ed., EN 50173-1, EIA/TIA 568-C, 802.3af, 802.3at PoE+
  • General properties:
  • Suitable for 483 mm (19") rack mounting
  • RJ45 sockets, 8P8C
  • Cable installation via LSA strips, color-coded according to EIA/TIA 568 A & B
  • Cable fixing by means of quick latches
  • Central earthing connection
  • 360° shield contacting
  • Integrated dust protection flap
  • Mechanical properties:
  • Housing material: 1.5 mm galvanized, cold-rolled steel according to EN1.4301, UNS S30400, AISI 304 and LMSAD110
  • RJ45 socket material: ABS UL 94V-0
  • Contact RJ45 socket: Nickel-plated phosphor bronze, 0.5 μ gold-plated contact
  • RJ-45 shielding: Nickel-plated bronze
  • LSA cutting clamp: Krone LSA+, UL 94V-2, galvanized phosphor bronze
  • Earthing wire: Not included in the scope of delivery
  • Printed circuit board: FR4, UL 94V-0
  • Physical properties:
  • Insertion force: 30N max. (IEC 60603-7-5)
  • Tensile load: 7.7 kg between socket and plug
  • Operating temperature: -20° C to +70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C)
  • Socket mating cycle: > 750 acc. to ISO/IEC 11801, IEC 60603-7-5
  • Terminal: > 200 acc. to ISO/IEC 11801, IEC 60603-7-5
  • Core receptacle: 22-26 AWG solid and stranded conductors
  • Insulation resistance: > 500 MOhm
  • Contact resistance: < 20 milliOhms
  • Dielectric strength: 1000 VDC (contact/contact), 1500 VDC (contact/ground)
  • HE: 0.5
Especificaciones
Ancho del embalaje
515 mm
Capacidad del rack
0.5U
Código del arancel comercial del Reino Unido
85369010
Código del Sistema Armonizado (HS)
85371098
Color del producto
Grey
Fuerza de retención del conector
30 N
Material
Steel
Montaje
Rack mounting
Número de puertos
24
País de origen
China
Peso del embalaje
980 g
Profundidad del embalaje
130 mm
Recubrimiento de los contactos del conector
Gold
Tapón antipolvo
Yes
Temperatura de funcionamiento (T-T)
-20 - 70 °C
Tipos de cable compatibles
Cat6a
Volumen del embalaje
2343.25 cm³
