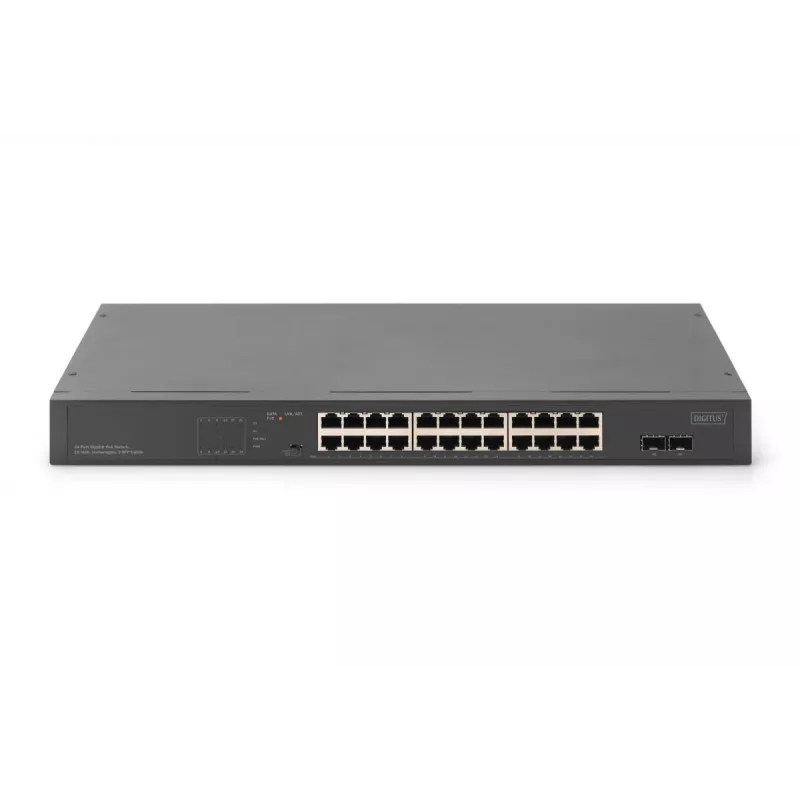

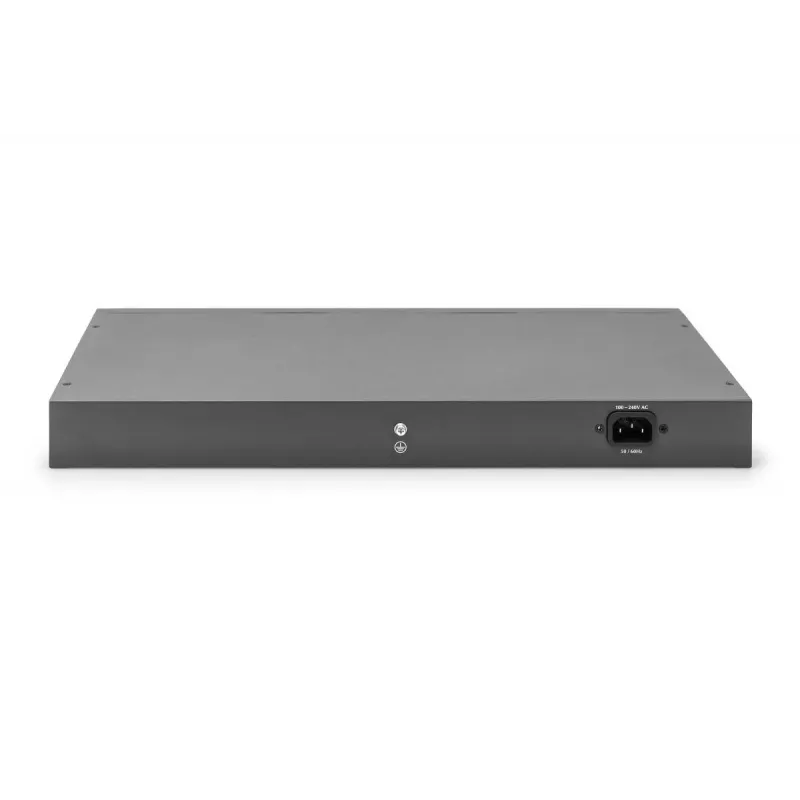

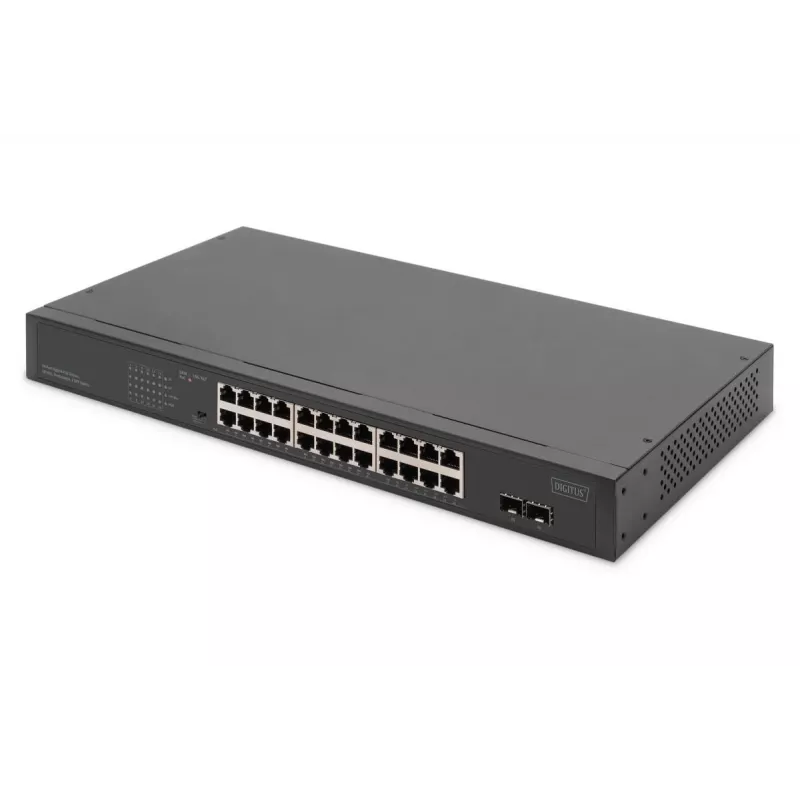

DIGITUS Switch PoE no gestionado - 24 puertos Gigabit + 2 puertos Gigabit SFP

DIGITUS Switch PoE no gestionado - 24 puertos Gigabit + 2 puertos Gigabit SFP
DIGITUS Switch PoE no gestionado - 24 puertos Gigabit + 2 puertos Gigabit SFP
DIGITUS Switch PoE no gestionado - 24 puertos Gigabit + 2 puertos Gigabit SFP
DIGITUS Switch PoE no gestionado - 24 puertos Gigabit + 2 puertos Gigabit SFP
DIGITUS Switch PoE no gestionado - 24 puertos Gigabit + 2 puertos Gigabit SFP
DIGITUS Switch PoE no gestionado - 24 puertos Gigabit + 2 puertos Gigabit SFP
358,28 €
Wire-speed forwarding, intelligent identification, PoE output power of a single port supports up to 30W each, total PoE budget: 370W- Support IEEE802.3af/at Standard- Single port output power up to 30W- Automatic detection and identification of standard PoE power receiving devices, intelligent power... Leer más
Stock 14 Código 116844 Marca DIGITUS Modelo DN-95348-2 Garantía 2 años

Envíos y devoluciones

Entrega estimada Miércoles, Octubre 28
Te mantendremos informado a través de nuestro sistema de seguimiento detallado
Opciones de pago
Tarjeta bancariaVisaMastercardPayPalApple PayGoogle PayTransferencia bancaria

Wire-speed forwarding, intelligent identification, PoE output power of a single port supports up to 30W each, total PoE budget: 370W

- Support IEEE802.3af/at Standard
- Single port output power up to 30W
- Automatic detection and identification of standard PoE power receiving devices, intelligent power supply, will not burn non-standard PoE power receiving devices or common devices
- Support port power supply prioritization, guarantee the continuous power supply of key nodes
- Panel indicators monitor working status and help fault analysis
- Support VLAN and CCTV function
- Flow Control for Full Duplex operation and back pressure for Half Duplex Operation
- Support Energy-Efficient Ethernet (EEE) function (IEEE802.3az)

The DN-95348-2 PoE switch offers an outstanding solution for the efficient power supply of network components that support the IEEE802.3af/at standard. With an impressive single port output power of up to 30W, it enables the reliable supply of PoE-enabled devices. The automatic detection and identification of standard PoE receiving devices makes the power supply intelligent and prevents potential damage from non-standard or conventional devices. By prioritising the port power supply, the module ensures the module ensures a continuous power supply for critical network nodes. The panel indicators allow convenient monitoring of the working status and assist in fault analysis. The module also supports VLAN and CCTV functions to maximise flexibility in network applications. With flow control for full-duplex operation and back pressure for half-duplex operation, the module optimises data transmission efficiency. Overall, the DN-95348-2 PoE switch offers a powerful, intelligent and reliable solution for powering network components that meets today's requirements for modern network infrastructures.

Aspectos destacados
  • Support IEEE802.3af/at Standard
  • Single port output power up to 30W
  • Automatic detection and identification of standard PoE power receiving devices, intelligent power supply, will not burn non-standard PoE power receiving devices or common devices
  • Support port power supply prioritization, guarantee the continuous power supply of key nodes
  • Panel indicators monitor working status and help fault analysis
  • Support VLAN and CCTV function
  • Flow Control for Full Duplex operation and back pressure for Half Duplex Operation
  • Support Energy-Efficient Ethernet (EEE) function (IEEE802.3az)
  • Mainboard, Power supply, PoE (three in one)
  • PoE Standard: IEEE802.3af/at
  • PoE Port: Port 1~24
  • PSE Power on RJ-45: Mode A 1/2(+),3/6(-)
  • PoE Port Output, Voltage: 55V DC, 30W max
  • PoE Power Budget: 370W
  • Power supply: 400W
  • Input Power Supply:AC 100-240V, 50/60Hz
  • Key supply: CCTV&VLAN
  • Forwarding Mode: Storage-and-Forward
  • Switching Capacity: 52 Gbps
  • MAC address table: 8K, Auto--learning, Auto-aging
  • Jumbo frames: 9216Byte
  • Packet Buffer: 4.1Mbit
  • Forwarding Rate: 38,69 Mpps
  • Operation Temperature: 0℃~40℃
  • Storage Temperature: -40℃~70℃
  • Operation Humidity: 10%~90% RH
  • Storage Humidity: 5%~90% RH
  • Dimensions(L*W*H): 440*207*44mm
  • Fan Qty:2
Especificaciones
Almacenamiento y reenvío
Yes
Altura
44 mm
Altura del embalaje
75 mm
Ancho
440 mm
Ancho del embalaje
320 mm
Apilable
No
Cables incluidos
AC
Capacidad de conmutación
52 Gbit/s
Color del producto
Grey
Compatibilidad con 10G
No
Compatibilidad con control de flujo
Yes
Compatibilidad con tramas jumbo
Yes
Compatibilidad con VLAN
Yes
Compatible con aprendizaje automático de direcciones MAC
Yes
Compatible con envejecimiento automático de direcciones MAC
Yes
Conector de alimentación
AC-in jack
Consumo de energía (máx.)
400 W
Dúplex completo
Yes
Estándares de red
IEEE 802.3af, IEEE 802.3at, IEEE 802.3az
Formato
1U
Frecuencia de entrada de CA
50/60 Hz
Fuente de alimentación
AC
Fuente de alimentación incluida
Yes
Guía de inicio rápido
Yes
Humedad relativa de almacenamiento (H-H)
5 - 90%
Humedad relativa de funcionamiento (H-H)
10 - 90%
Indicadores LED
Yes
Material de la carcasa
Metal
Memoria búfer de paquetes
4.1 MB
Montaje en rack
Yes
Número de puertos Ethernet RJ-45 de conmutación básica
24
Número de puertos Gigabit Ethernet (cobre)
24
Número de puertos uplink
2
Número de ranuras para módulos SFP
2
Número de ventiladores
2 fan(s)
País de origen
China
Peso del embalaje
3.57 kg
Potencia por puerto de Power over Ethernet (PoE)
30 W
Potencia total Power over Ethernet (PoE)
370 W
Power over Ethernet (PoE)
Yes
Profundidad
207 mm
Profundidad del embalaje
500 mm
Semidúplex
Yes
Tabla de direcciones MAC
8000 entries
Temperatura de almacenamiento (T-T)
-40 - 70 °C
Temperatura de funcionamiento (T-T)
0 - 40 °C
Tensión de entrada de CA
100 - 240 V
Tensión de Power over Ethernet (PoE)
55 V
Tipo de interfaz Ethernet
Gigabit Ethernet
Tipo de puertos Ethernet RJ-45 de conmutación básica
Gigabit Ethernet (10/100/1000)
Tipo de switch
Unmanaged
Tramas jumbo
9216
Velocidad de reenvío
38.69 Mpps
Velocidades de datos de Ethernet LAN
10,100,1000 Mbit/s
