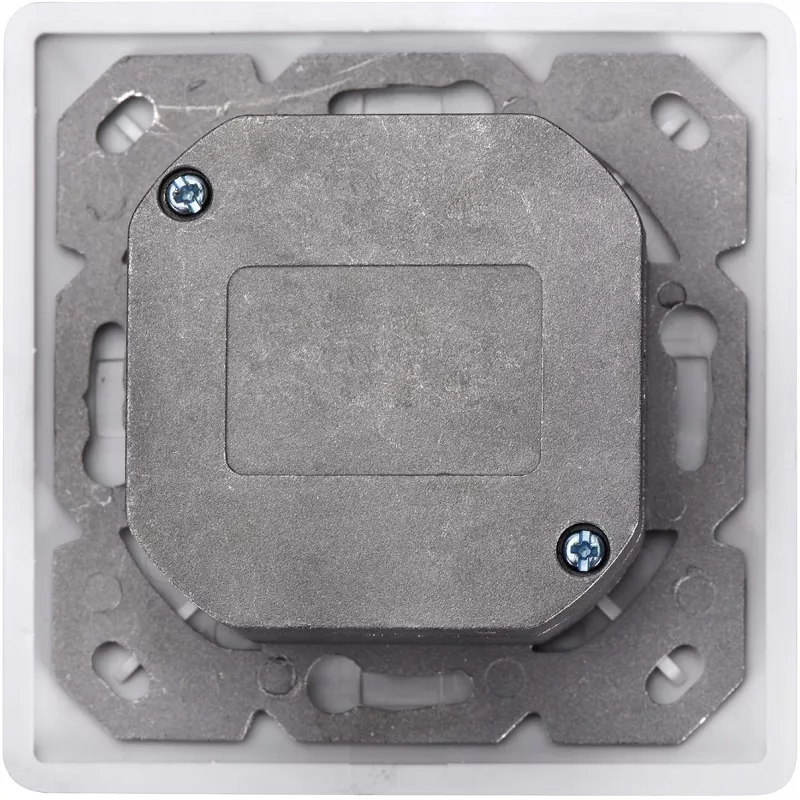

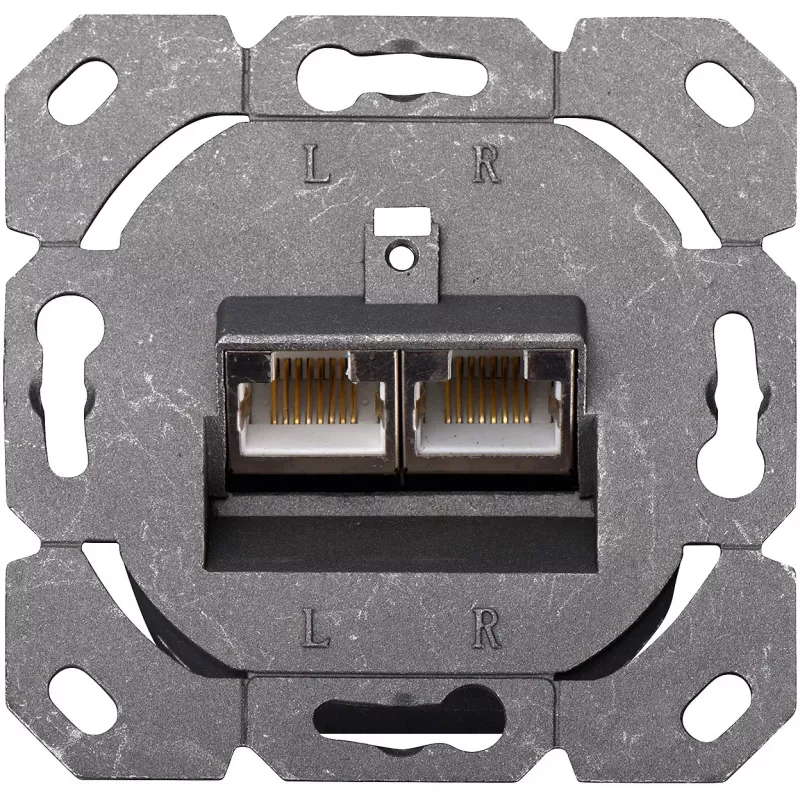

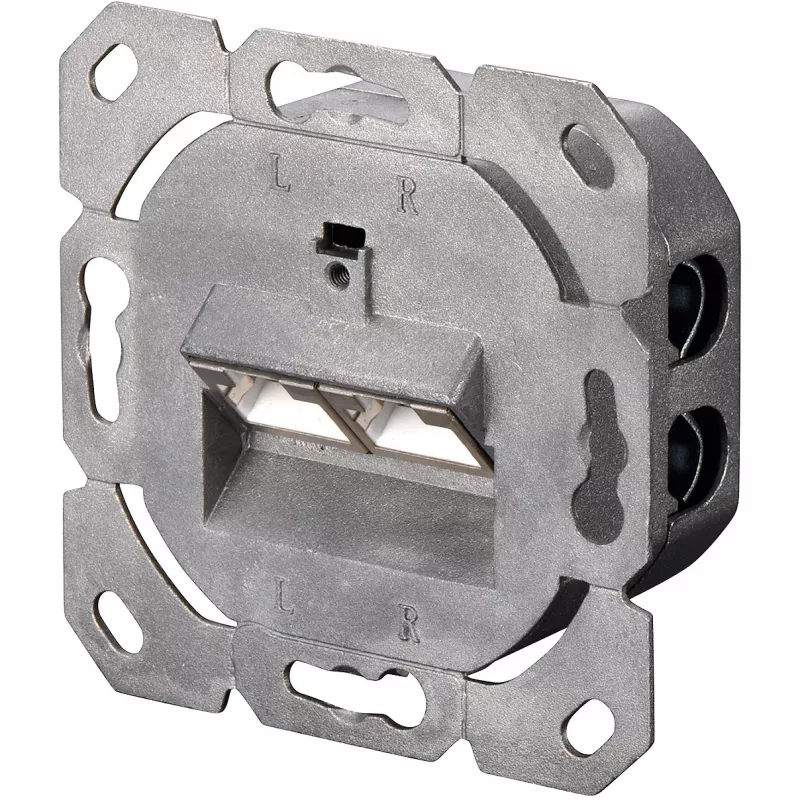

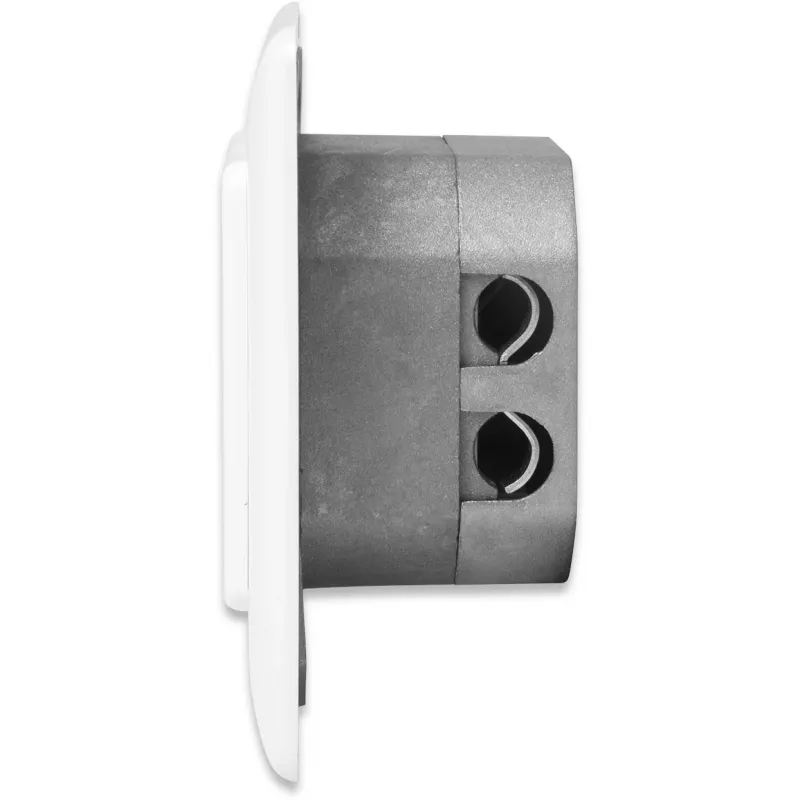

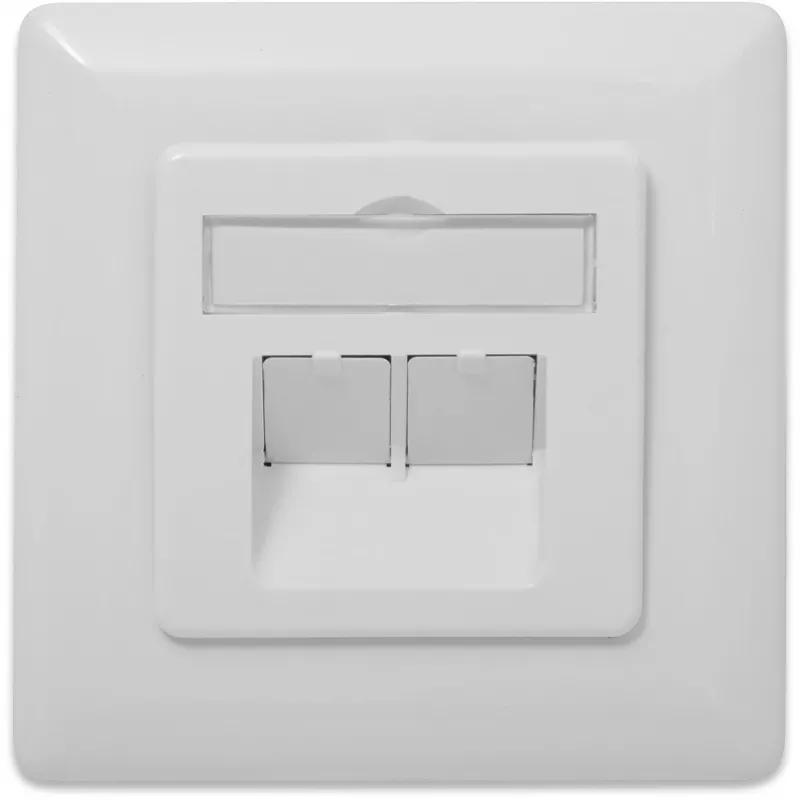

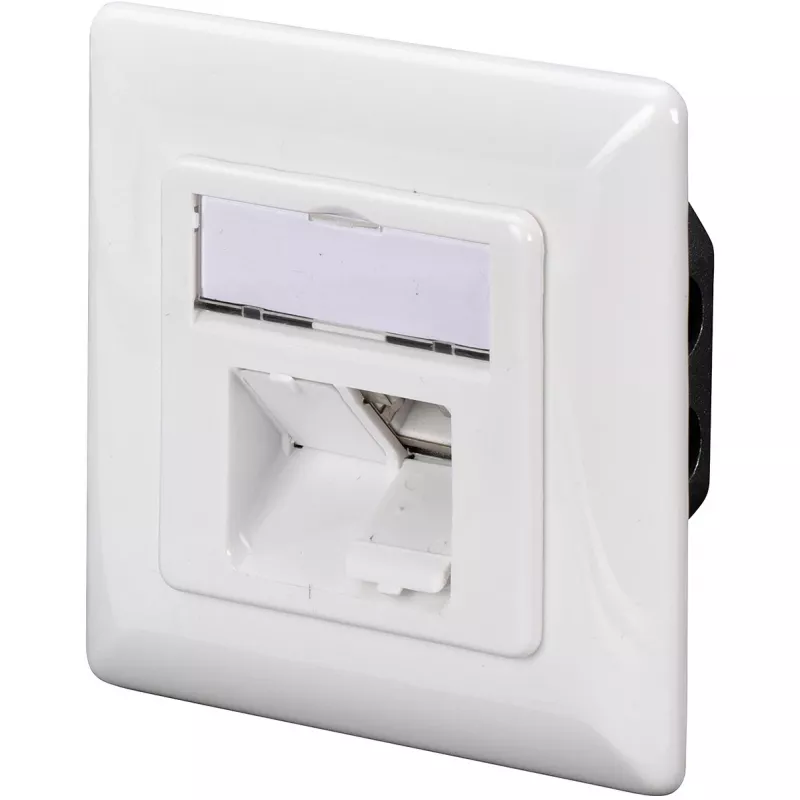

Toma de red digital CAT 6A DN-9008-1

The Digitus CAT 6A Class EA network outlet (DN-9008-1) is a shielded, flush-mount wall socket designed for high-performance network connections. It offers two shielded RJ45 ports in a compact white housing (80 × 80 mm) and is compatible with standard switch programme faceplates. The outlet is certified to CAT 6A ANSI/TIA-568, ISO/IEC 11801 and EN 50173 standards and supports installation via LSA strips with color coding according to EIA/TIA 568 A & B.

Advantages

The outlet provides shielded connections for improved protection against electromagnetic interference and supports CAT 6A Class EA performance for 10 Gigabit Ethernet environments. Its compatibility with common switch programmes allows flexible aesthetic integration, while the LSA strip termination simplifies structured cable installation and ensures reliable wiring according to industry color codes.

Suitable for

• Office LANs and structured cabling installations
• Data centers and server rooms requiring CAT 6A performance
• Professional Ethernet installations supporting 10 Gigabit speeds
• Environments where shielded outlets are preferred for EMI protection

Key specifications

• Model: Digitus DN-9008-1
• Standard: CAT 6A (Class EA), ANSI/TIA-568, ISO/IEC 11801, EN 50173
• Ports: 2 × shielded RJ45

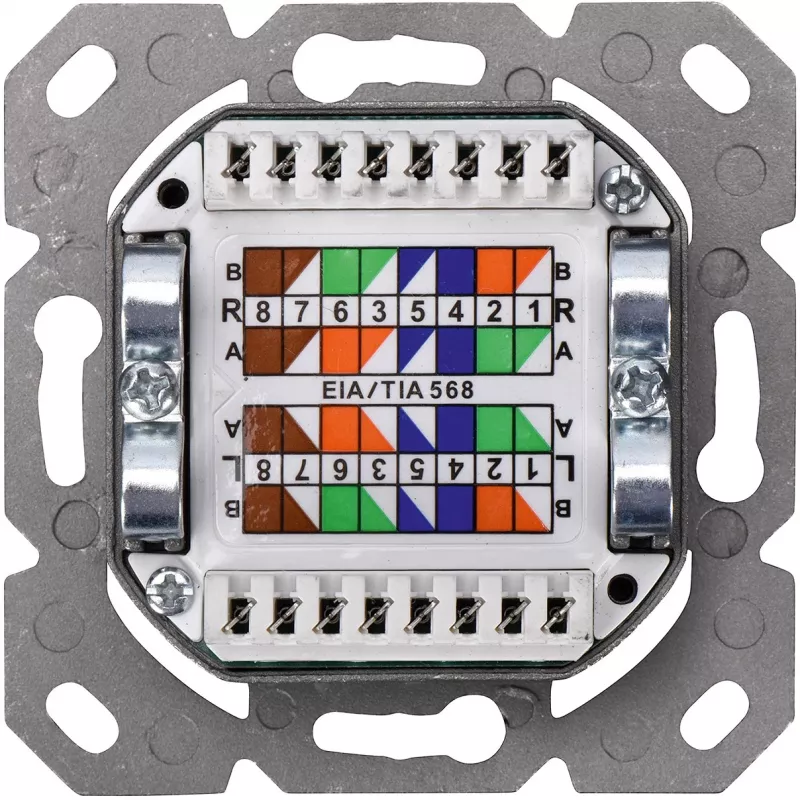

• Termination: LSA strips, color coded per EIA/TIA 568 A & B
• Mounting: Flush mount
• Dimensions: 80 mm × 80 mm
• Colour: White
• Country of manufacture: China

How to use

Install the network outlet into a compatible flush-mount back box and secure it according to local electrical and building codes. Terminate the incoming shielded twisted-pair cables on the integrated LSA strips following the EIA/TIA 568 A or B color code, ensuring that the shield is properly connected to the outlet housing. After termination, fit the faceplate to the chosen switch programme frame and test each RJ45 port with a suitable cable tester to verify continuity and Cat 6A performance.

Recommendations

For optimal performance, use shielded Cat 6A cabling and maintain proper grounding of the shield. Verify installation with a Category 6A certification tester if deploying in high-speed or mission-critical networks. Follow local standards and the manufacturer’s installation guidelines.
