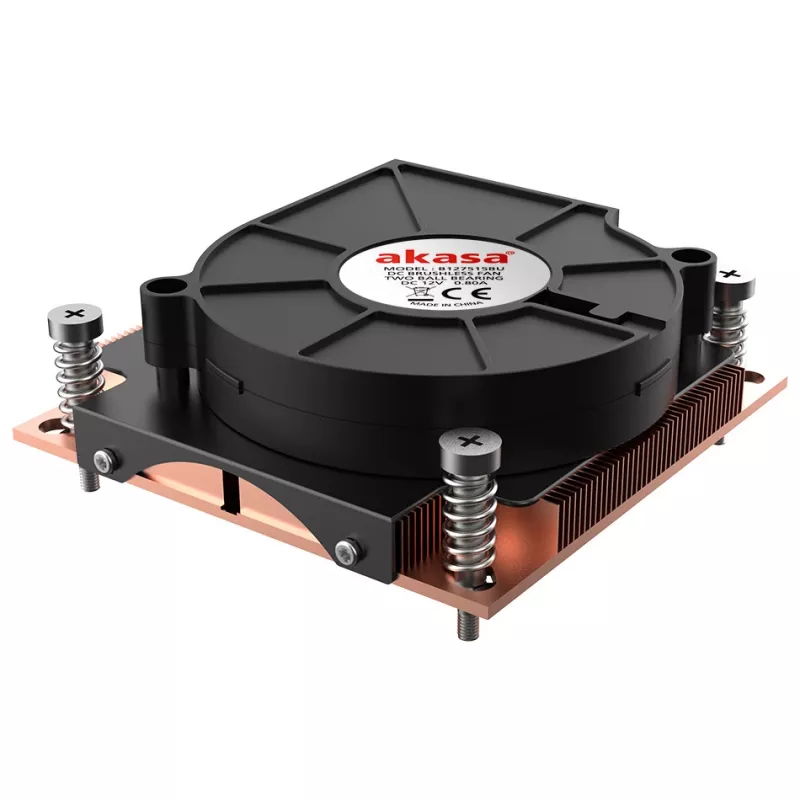

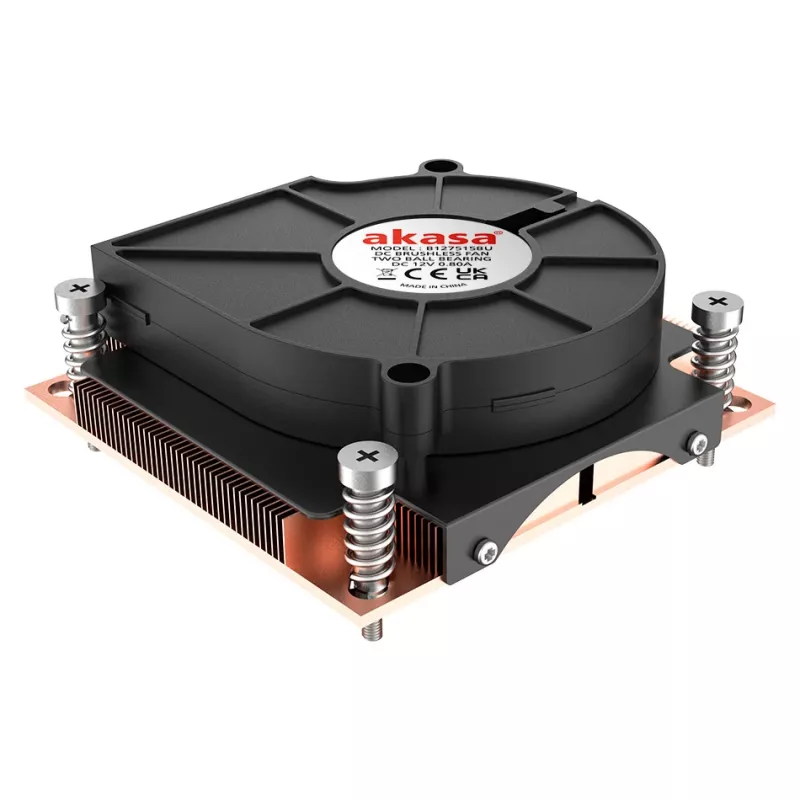

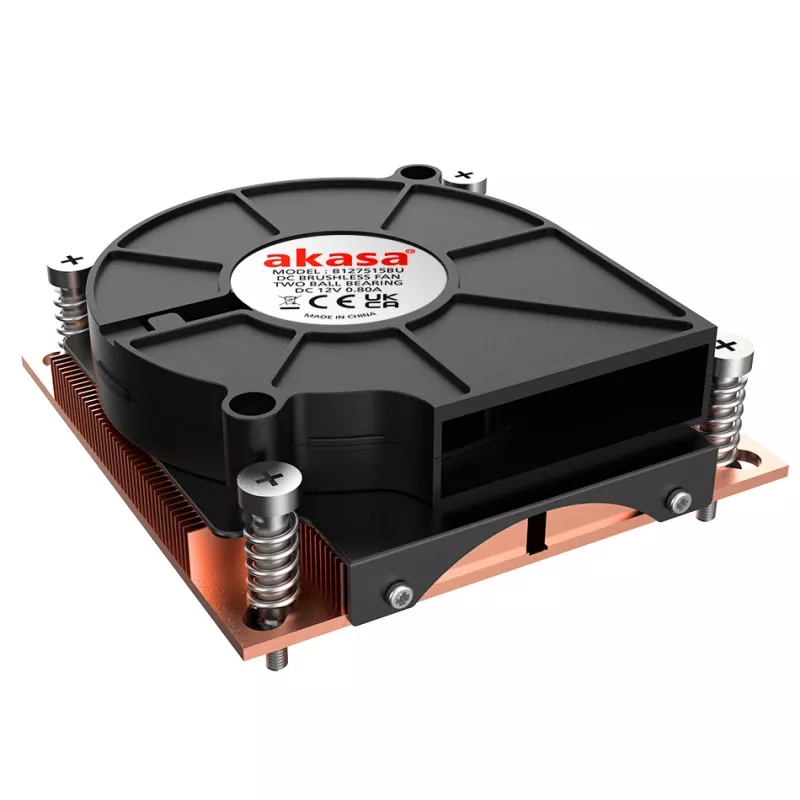

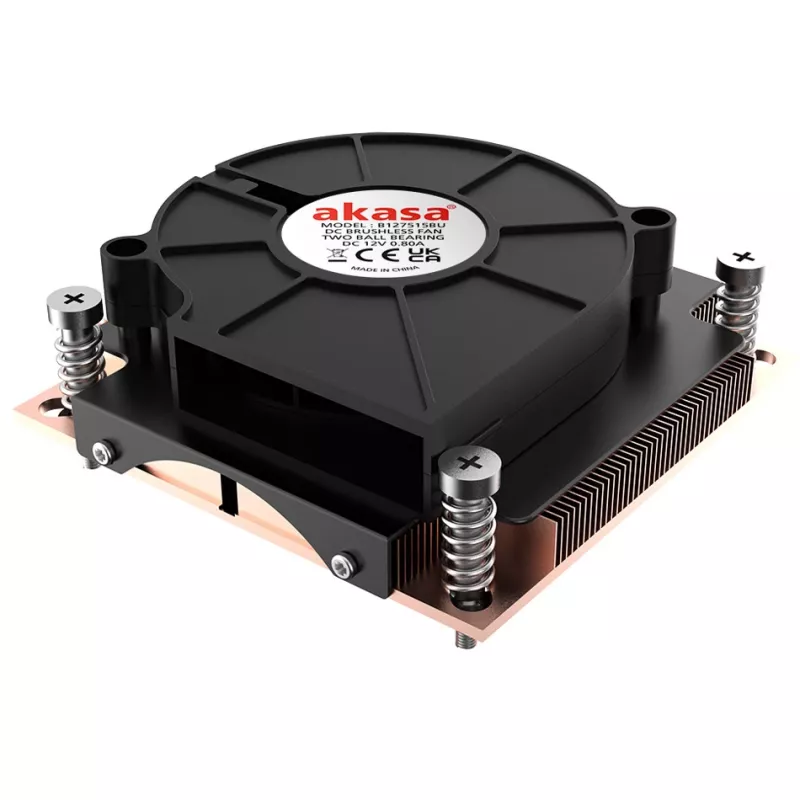

Disipador de aire Akasa AK-CC7401BP01 7,5 cm Negro Doble rodamiento a bolas

The Akasa AK-CC7401BP01 is a compact air cooler with a 75 mm side-blowing fan and a solid copper heatsink, designed for constrained server and small-form-factor PC layouts. Its low-profile 1U height minimizes occupied space while the side-blowing airflow directs CPU heat out of the heatsink. The cooler uses a dual ball bearing fan and spring-loaded mounting screws to provide reliable operation and stable attachment.

Advantages

The solid copper heatsink improves thermal transfer from the processor, helping dissipate heat more efficiently. The 75 mm side-blowing fan with twin ball bearings offers increased durability and lower friction for a longer service life. Spring-loaded screws ensure consistent, balanced mounting with higher tolerance to vibration, preserving contact between the cooler and CPU in server or compact PC environments.

Suitable for

• Small-form-factor desktops and HTPCs where vertical clearance is limited
• Server racks and 1U-style or compact chassis with cramped configurations
• Systems requiring a low-profile CPU cooler compatible with LGA 1700 and older LGA sockets

Key specifications

• Type: Air cooler
• Fan diameter: 75 mm
• Bearing type: Dual (twin) ball bearing
• Minimum air pressure: 20.66 mmH2O
• Thermal Design Power (TDP): 95 W
• Dimensions (W×D×H): 88 × 87 × 30.5 mm
• Weight: 0.447 kg
• Colour: Black
• Supported sockets: LGA 1700, LGA 1200, LGA 1156, LGA 1155, LGA 1151, LGA 1150, LGA 775

How to use

Position the cooler over the CPU socket according to the motherboard and case layout so the side-blowing fan exhausts hot air toward an appropriate case vent or out of the chassis. Attach the cooler using the supplied spring-loaded screws, tightening evenly to maintain balanced pressure on the CPU. Connect the fan to the motherboard fan header and verify spin and airflow before closing the chassis. Ensure thermal paste is applied between the CPU and heatsink according to the thermal paste manufacturer’s instructions.

Recommendations

Use in systems with limited vertical clearance and ensure the fan exhaust aligns with case airflow paths. Periodically clean dust from the heatsink and fan to maintain performance; replace the fan if unusual noise or reduced RPMs are observed.
