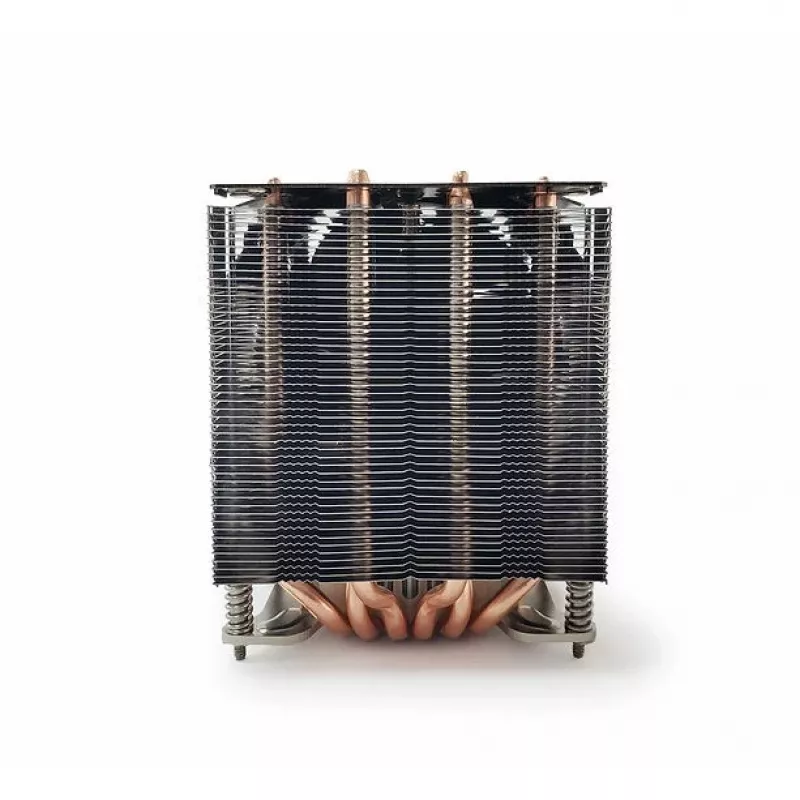

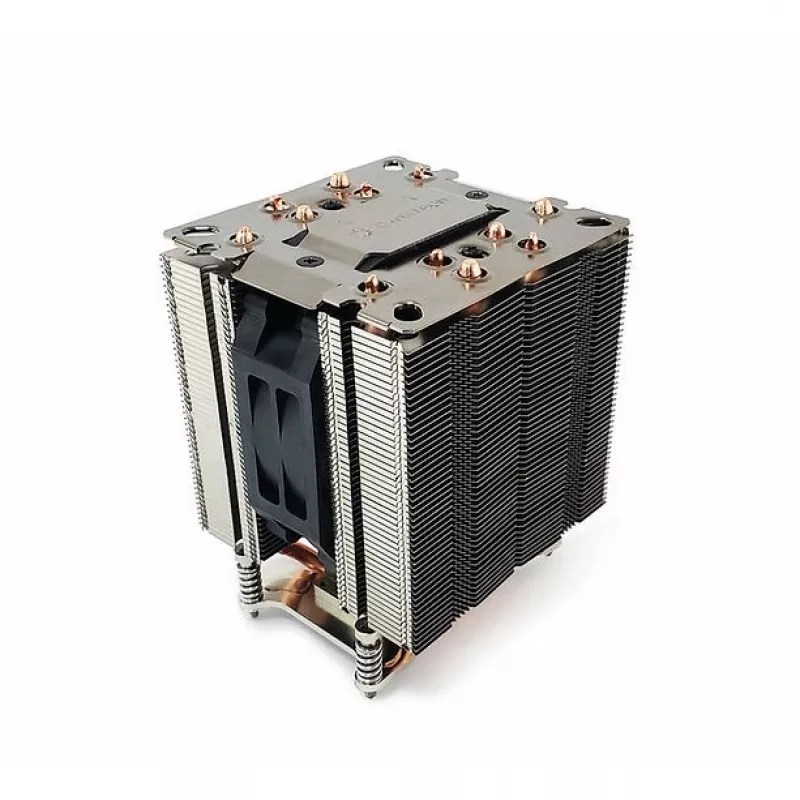

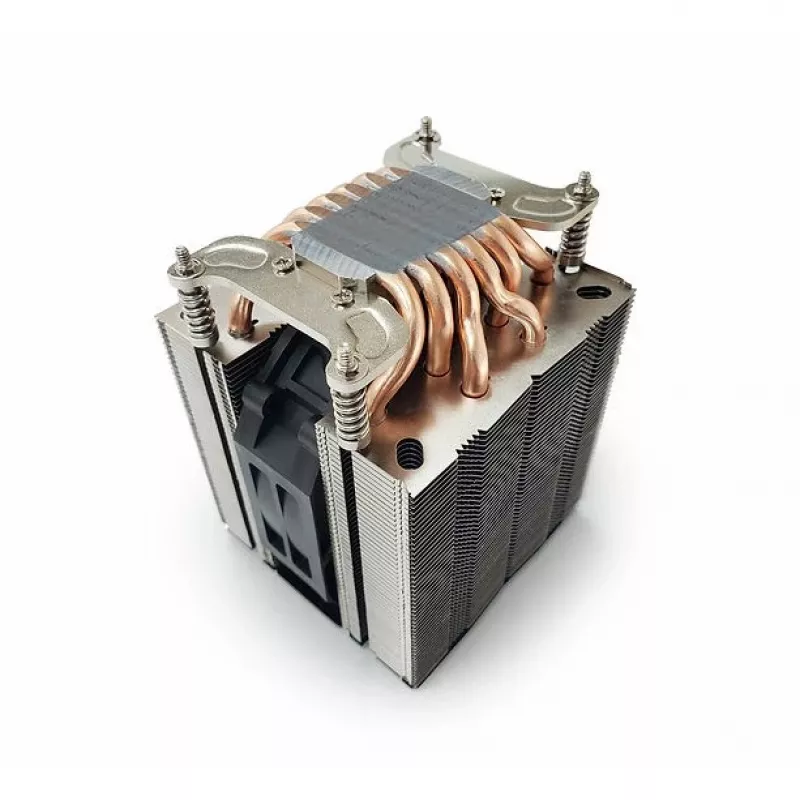

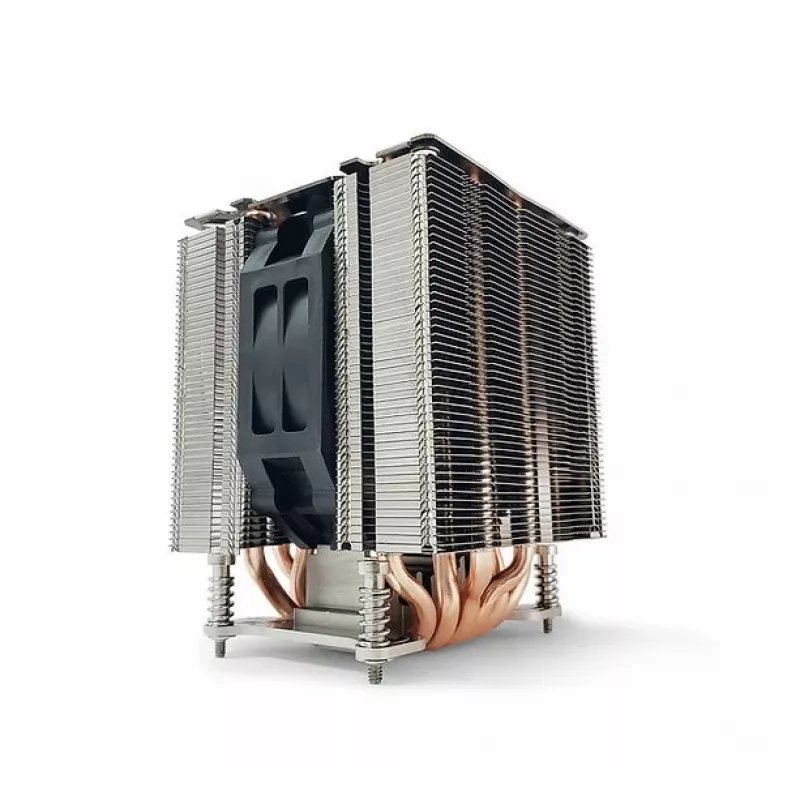

Disipador de aire Dynatron A49 Sistema de refrigeración de procesador Negro Plata 800–1800 rpm

The Dynatron A49 Processor Cooling System in Black Silver is an air cooler engineered to provide effective CPU thermal management for desktop systems. Designed with a dual ball bearing fan, it delivers variable rotational speeds from 800 to 1800 RPM to balance cooling performance and acoustic output. The cooler is specified to handle up to 175 W thermal design power, while its fan airflow characteristics provide a minimum air pressure of 0.44 mmH2O and a maximum of 2.06 mmH2O. The cooler’s combination of silver and black finishes suits a range of PC builds and helps integrate the unit into modern system aesthetics.

Advantages

The Dynatron A49 combines a compact air-cooling architecture with a dual ball bearing fan for extended operating life and stable rotation. Variable fan speed allows modulation between quieter operation and higher airflow when processor load increases. With support for common AM4 and AM5 sockets and a TDP rating of 175 W, the cooler is compatible with a wide range of mainstream desktop processors. The unit’s weight of 0.71 kg and its streamlined color scheme simplify installation and visual integration into most chassis layouts.

Suitable for

• Cooling mainstream desktop CPUs with up to 175 W TDP
• Systems using Socket AM5 or Socket AM4 processors
• PC builds where a balance of low noise and adequate airflow is required
• Upgrades to improve stock cooler performance in compact or mid-tower cases

Key specifications

• Type: Air cooler
• Fan speed range: 800–1800 RPM
• Fan bearing type: Dual ball bearing
• Air pressure: 0.44–2.06 mmH2O
• Thermal Design Power (TDP): 175 W
• Supported processor sockets: Socket AM5, Socket AM4
• Product colour: Silver, Black
• Weight: 0.71 kg

How to use

Mount the Dynatron A49 onto a compatible motherboard following the socket-specific mounting procedure for AM4 or AM5. Apply a thin, even layer of thermal paste between the CPU heatspreader and the cooler base before seating the heatsink. Fasten the cooler securely using the supplied mounting hardware to ensure even contact pressure. Connect the fan cable to the CPU fan header on the motherboard and configure fan curves in BIOS or using motherboard software to match desired noise and cooling performance.

Recommendations

For reliable operation, ensure adequate case airflow by maintaining unobstructed intake and exhaust paths. Clean dust from fins and the fan periodically to preserve thermal performance. When targeting lower noise, set the fan profile to a conservative curve and monitor CPU temperatures under load to confirm safe operating margins.
