MIBOXER Cable de conexión LED DMX M12 0,3m conector macho 5 pines a extremos abiertos para MiLight/MiBoxer

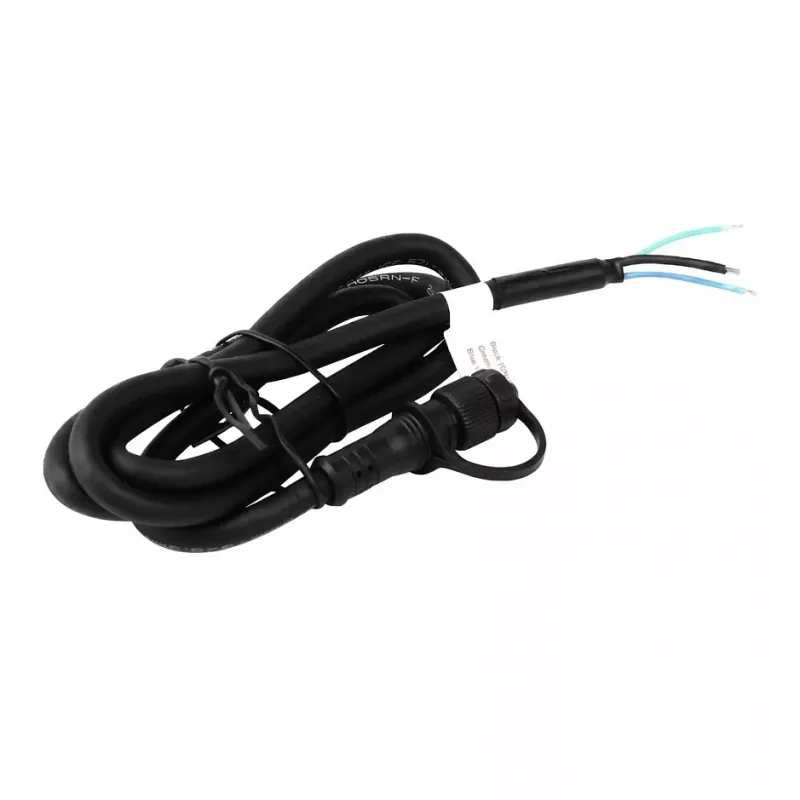

The MIBOXER AM-DM-12FN5C is a high-quality LED DMX M12 connection cable designed for reliable signal transmission in DMX512 lighting control systems. This 0.3-meter (30 cm) cable features a 5-pin M12 A-coded male connector on one end and bare wire ends on the other, making it ideal for connecting MiLight/MiBoxer DMX512 master controllers to LED fixtures or other DMX devices. The cable is constructed with tinned copper conductors, foil shielding with a drain wire, and a durable PVC jacket, ensuring excellent signal integrity and noise rejection. With an IP67-rated connector, it is suitable for both indoor and outdoor applications where protection against dust and temporary immersion is required.

Advantages

This cable offers a robust and flexible solution for DMX512 installations. The M12 connector provides a secure screw-on connection that withstands vibration and harsh environments. The bare wire termination allows for easy soldering or connection to terminal blocks, giving installers maximum flexibility. The foil shielding minimizes electromagnetic interference, ensuring stable data transmission over the short cable length. The IP67 rating on the connector side adds durability for outdoor or industrial use.

Suitable for

• Connecting MiLight/MiBoxer DMX512 master controllers to LED drivers or fixtures
• DMX512 lighting control systems in architectural, stage, or landscape lighting
• Applications requiring a short, shielded DMX cable with a waterproof connector
• Custom wiring projects where bare wire ends are preferred

Key specifications

• Connector 1: M12 A-Coded Male, 5-Pin
• Connector 2: Bare Wire Ends (5 conductors)
• Cable Length: 0.3 m (30 cm)
• DMX Standard: DMX512
• Conductor Material: Tinned Copper
• Jacket Material: PVC
• Shielding: Foil with Drain Wire
• IP Rating (Connector): IP67
• Wire Gauge: 24 AWG
• Operating Temperature: -25°C to +85°C
• Colour: Black
• Cable Diameter: Approx. 5.5 mm
• Voltage Rating: 30V (Signal)
• Current Rating: 1A per pin

Recommendations

For best performance, use this cable with compatible MiLight/MiBoxer DMX512 controllers and ensure proper termination of the bare wire ends. The IP67 connector should be tightened securely to maintain the waterproof seal. This cable is not intended for power transmission; use only for DMX signal.
