Disipador DeLOCK disipador de calor con ventilador para M.2 SSD 2280 negro aluminio

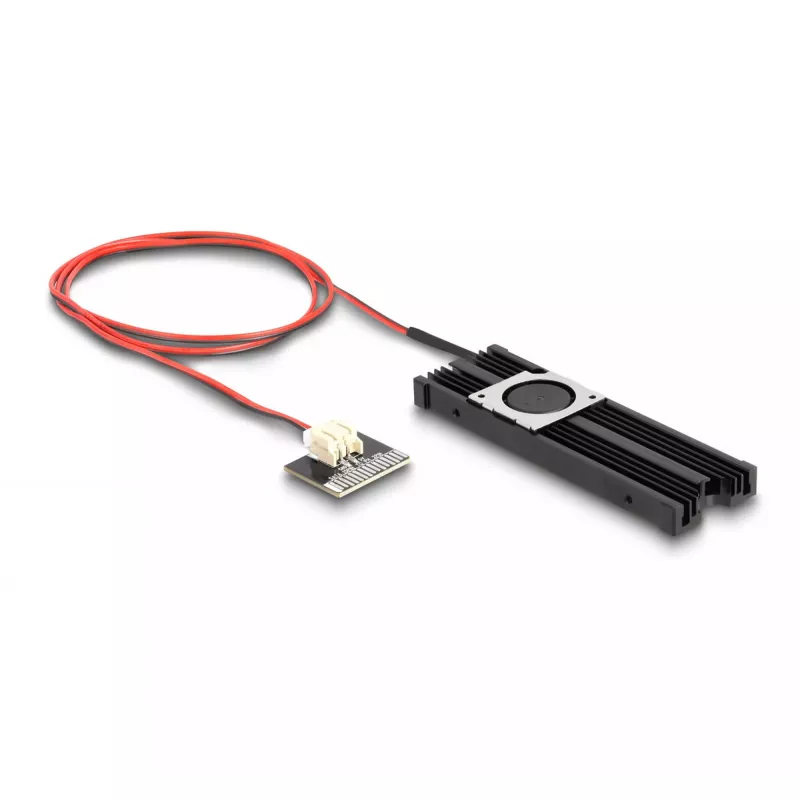

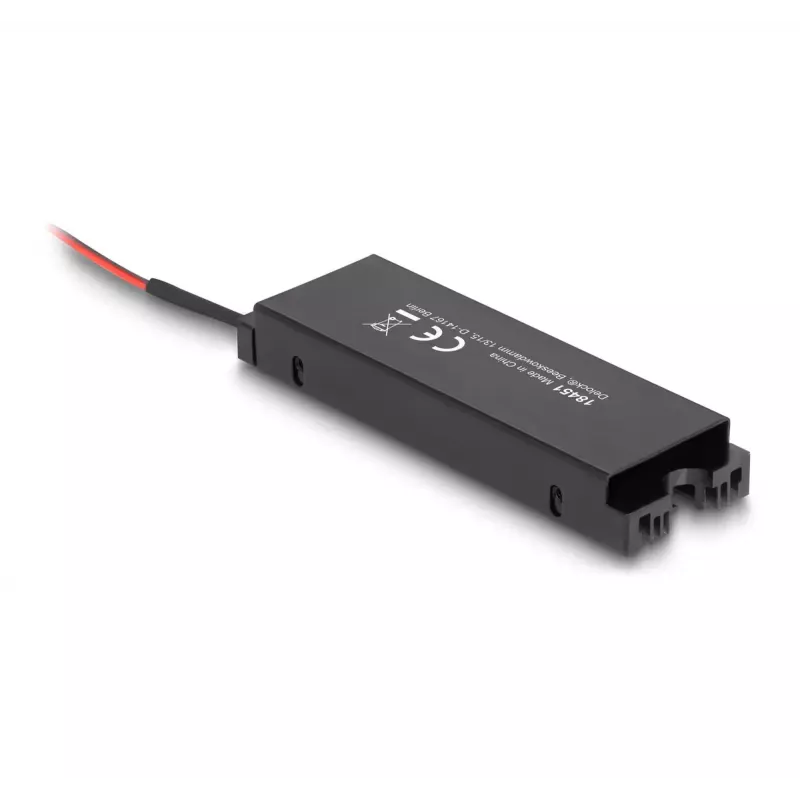

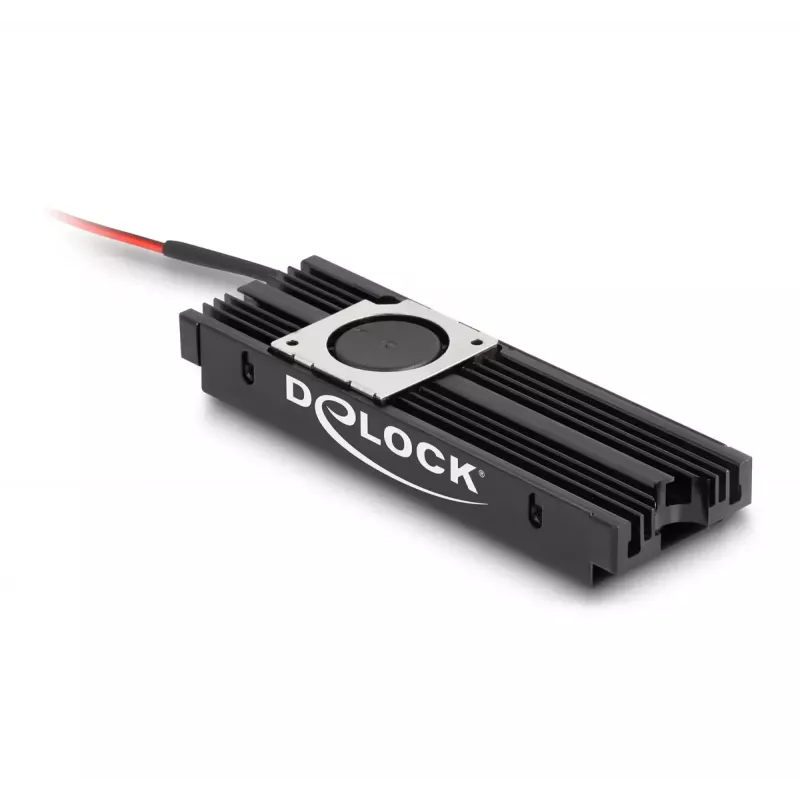

The DeLOCK heat sink with fan is designed for cooling M.2 SSDs in 2280 format. Manufactured from aluminium, the compact cooler wraps around the SSD and conducts heat away using thermal conductive pads. An integrated fan in the robust metal housing provides active cooling to maintain lower operating temperatures for the drive.

Advantages

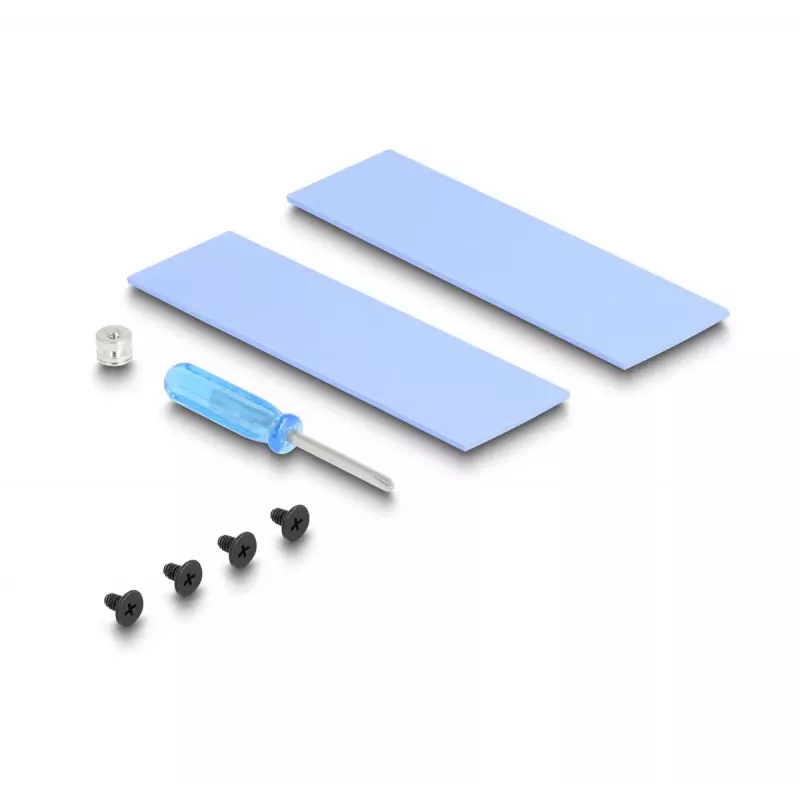

The aluminium construction offers efficient heat conduction while the included fan increases overall cooling performance compared with passive only solutions. The compact form factor (23 mm x 76 mm x 10 mm) makes it suitable for tight installations and the thermal pads ensure direct heat transfer from the SSD to the heat sink.

Suitable for

• Cooling M.2 PCIe/NVMe SSDs in 2280 form factor
• Small form-factor PC builds where space is limited
• Systems requiring active cooling to stabilize SSD temperatures

Key specifications

• Brand: DELOCK
• Model / MPN: 18451
• EAN: 4043619184514
• Compatible size: M.2 2280
• Material: Aluminium
• Dimensions: 23 mm (W) x 76 mm (D) x 10 mm (H)
• Color: Black
• Cooling: Active (integrated fan) with thermal conductive pads

How to use

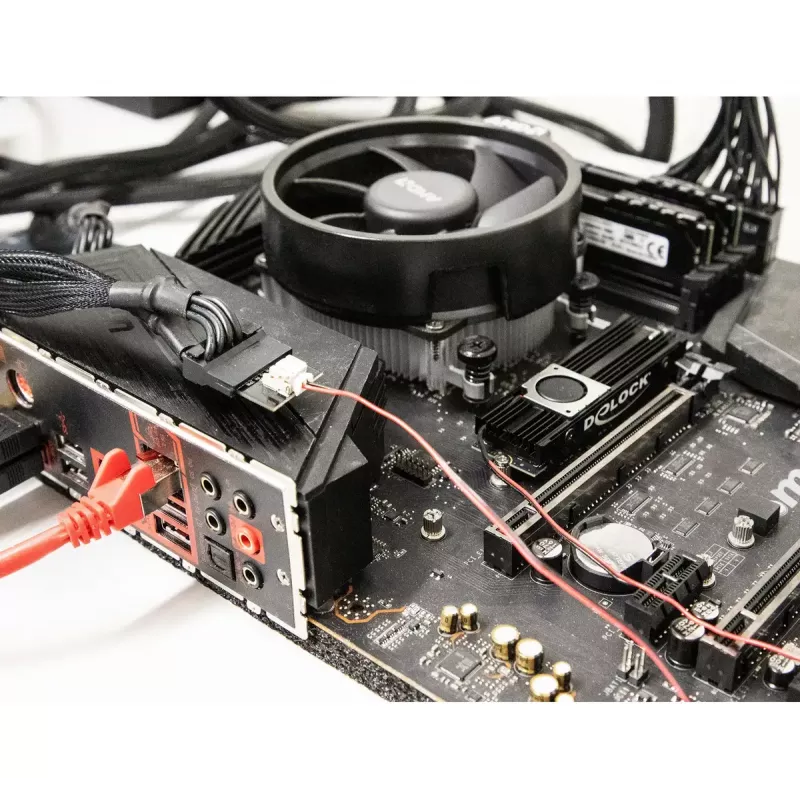

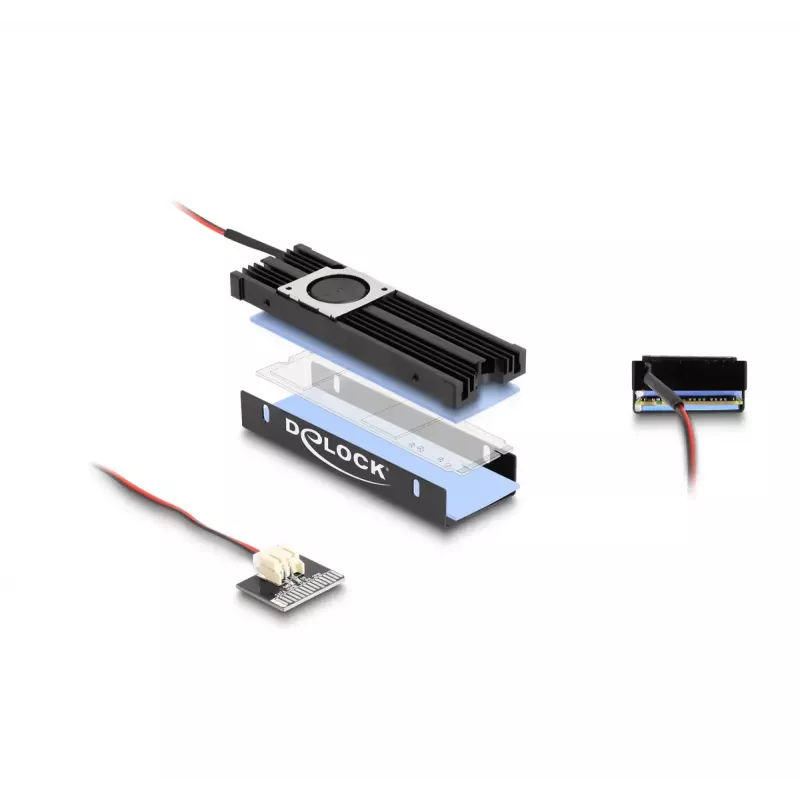

Place the thermal conductive pads on the M.2 SSD according to the heat sink instructions, then mount the aluminium housing around the drive so that the pads align with the heat sink surfaces. Secure the assembly as specified by the manufacturer and connect the fan to the appropriate power source or header. Verify clearance inside the case before reinserting other components.

Recommendations

For optimal results, ensure the fan is connected to a motherboard fan header or a stable 5–12 V power source as specified, keep airflow unobstructed, and periodically clean the fan and heatsink surfaces from dust to maintain cooling efficiency.
