Disipador híbrido Akasa Intel LGA1700 7,5 cm Aluminio Negro

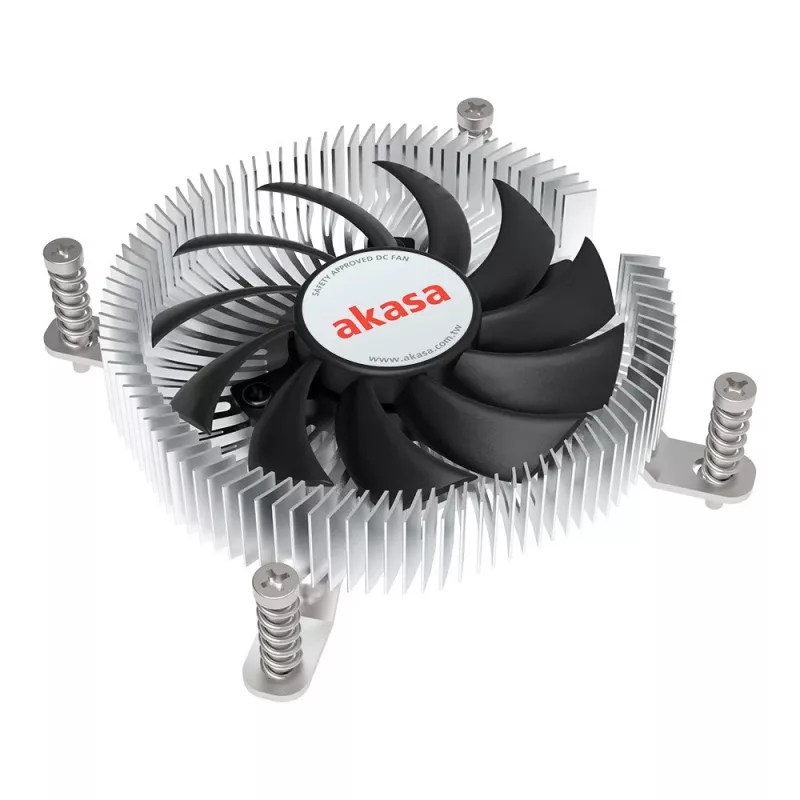

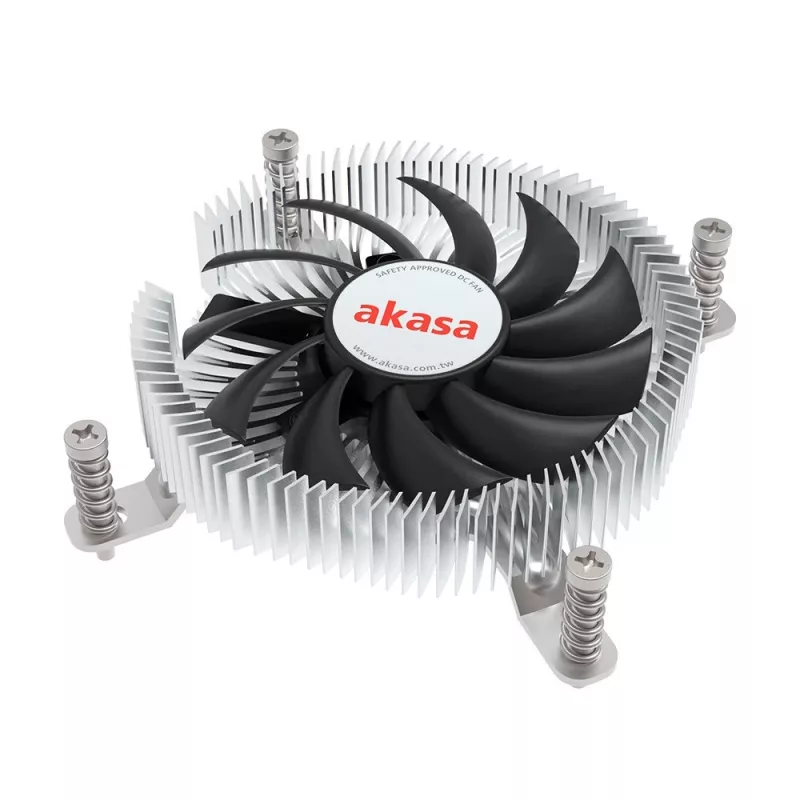

Ultra low-profile 21.8 mm aluminium heatsink with an embedded 75 mm fan provides a compact, low-noise cooling solution for Intel LGA1700 processors up to 35 W TDP in thin mini-ITX and other small form factor (SFF) chassis. The cooler features an extra-large core contact area to match the larger LGA1700 package, a pre-applied high-grade thermal interface, and an updated mounting system with a retention plate and metal screws for secure installation.

Advantages

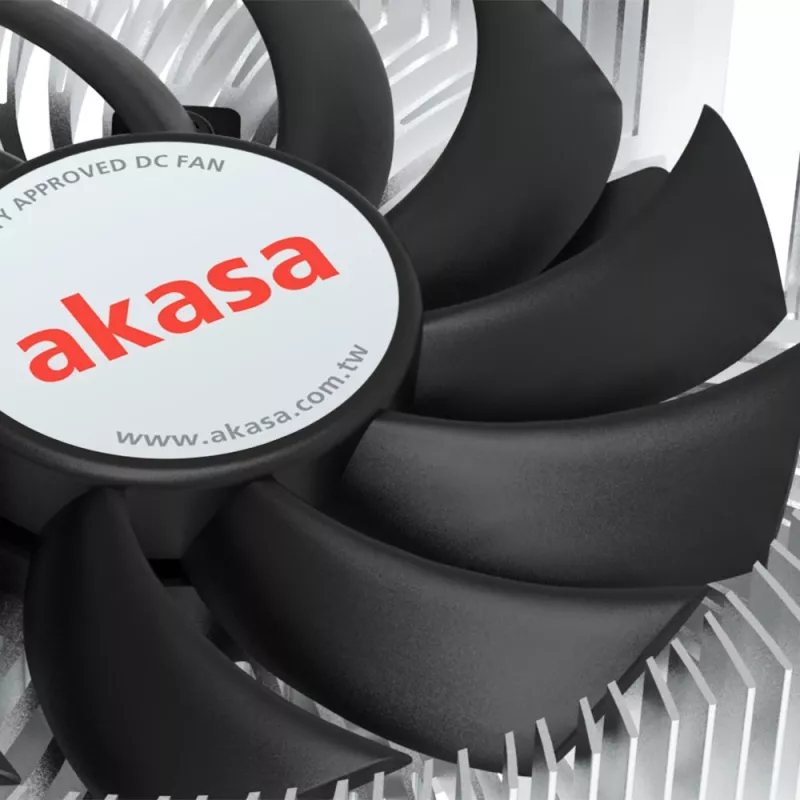

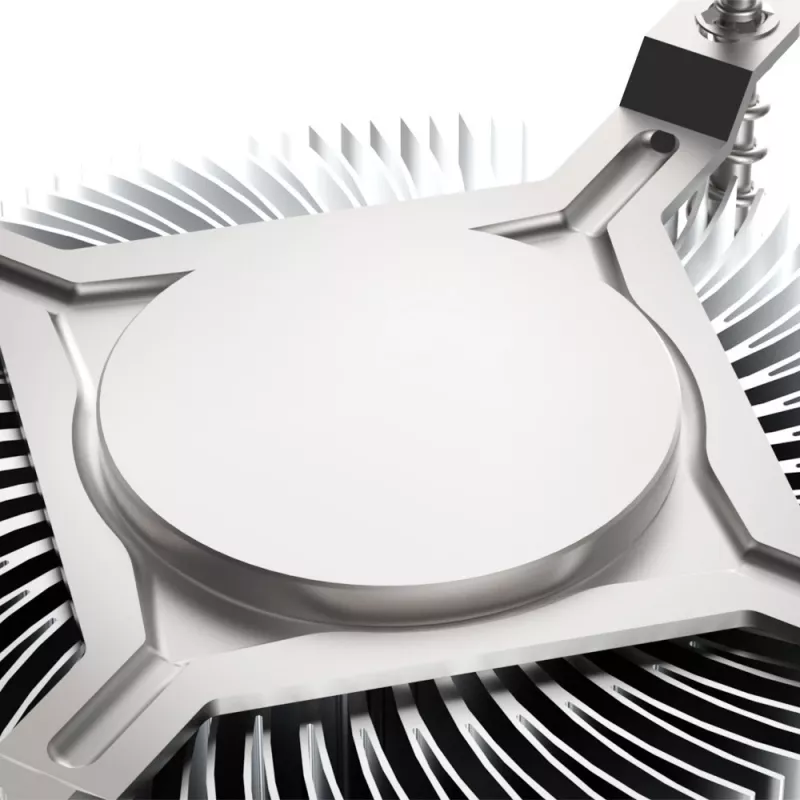

The Akasa hybrid cooler combines a high-performance aluminium heatsink and an intelligent PWM 75 mm fan to deliver targeted airflow while keeping acoustic levels low. Its enlarged core shape increases contact with the CPU package for improved thermal transfer. The very low 21.82 mm total height makes it suitable for thin and cramped cases, and the pre-applied thermal interface and easy-to-use mounting hardware simplify installation.

Suitable for

• Thin Mini-ITX and other low-profile mini-ITX builds
• Small form factor (SFF) systems such as HTPC and compact desktop cases
• Intel LGA1700 processors up to 35 W TDP

Key specifications

• Type: Hybrid cooler
• Fan diameter: 75 mm
• Maximum height: 21.82 mm
• Supported socket: Intel LGA1700
• Bearings: Ball bearing
• Weight: 0.1288 kg
• Colour / material: Black, aluminium
• MPN / EAN: AK-CC6609EP01 / 4710679552194

How to use

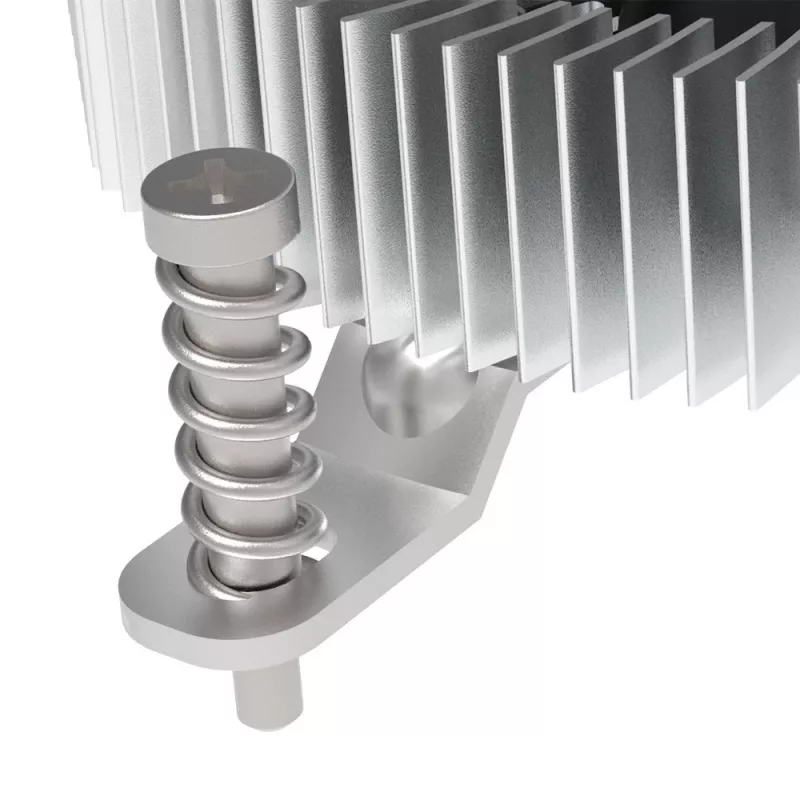

Place the cooler onto the Intel LGA1700 CPU so the enlarged core area aligns with the processor package. Secure the retention plate and tighten the metal screws according to the motherboard mounting pattern. Connect the fan header to a PWM-capable CPU fan connector on the motherboard to allow automatic fan speed control. Ensure the pre-applied thermal interface is cleanly making contact and that the cooler is firmly seated before powering the system.

Recommendations

For reliable thermal performance, use this cooler with processors that have a TDP up to 35 W and in chassis that provide at least minimal airflow. Periodically check and clean the 75 mm fan to maintain cooling efficiency and low noise levels.
