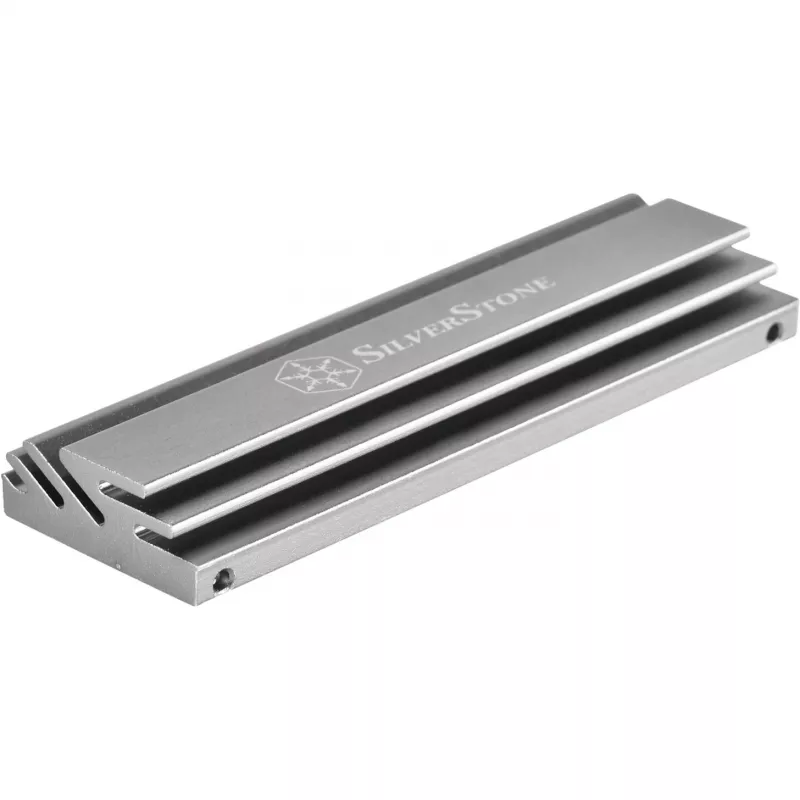

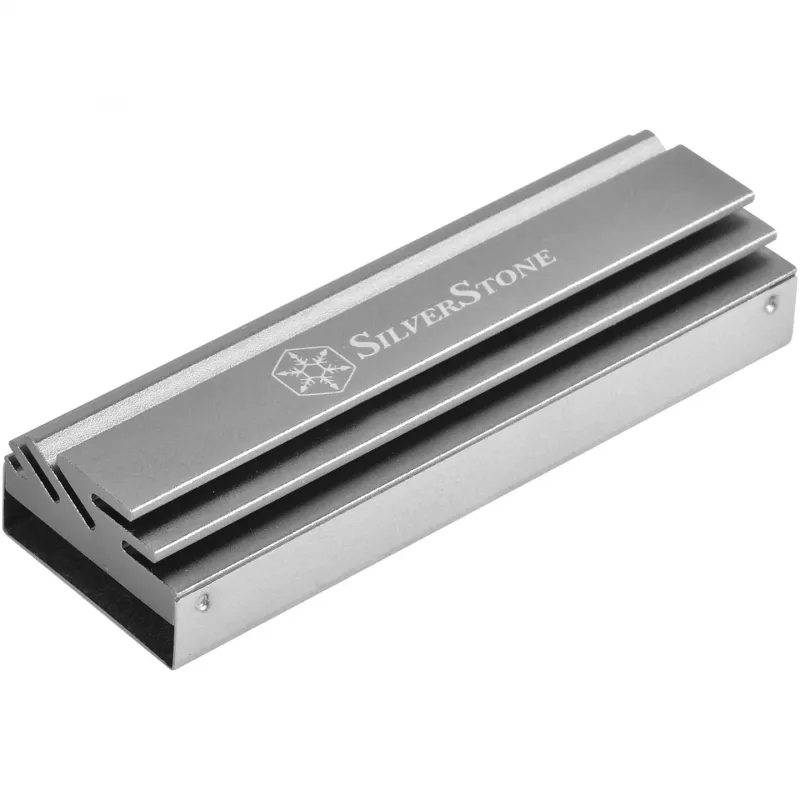

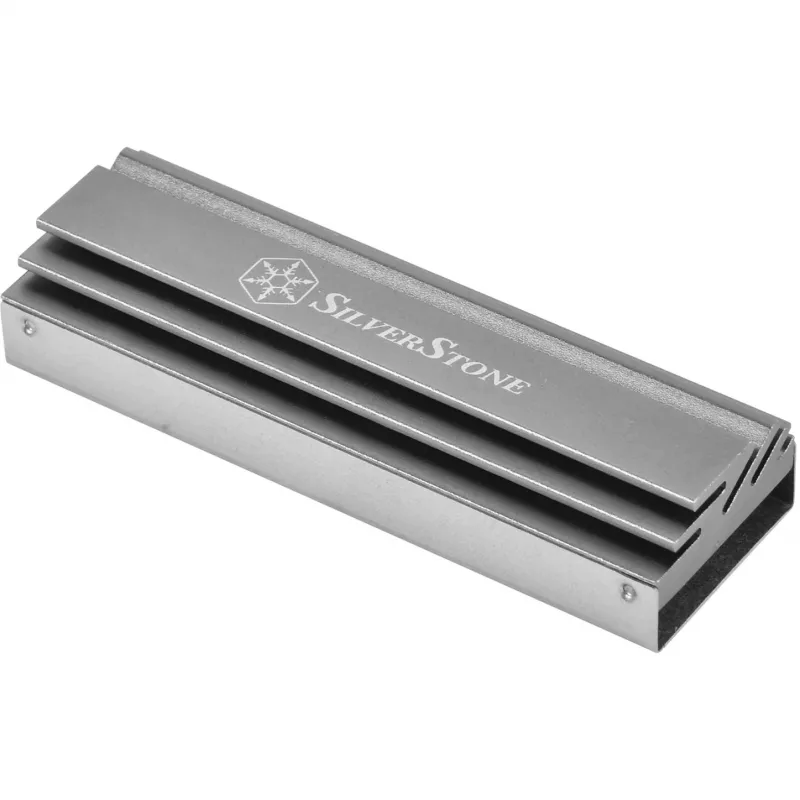

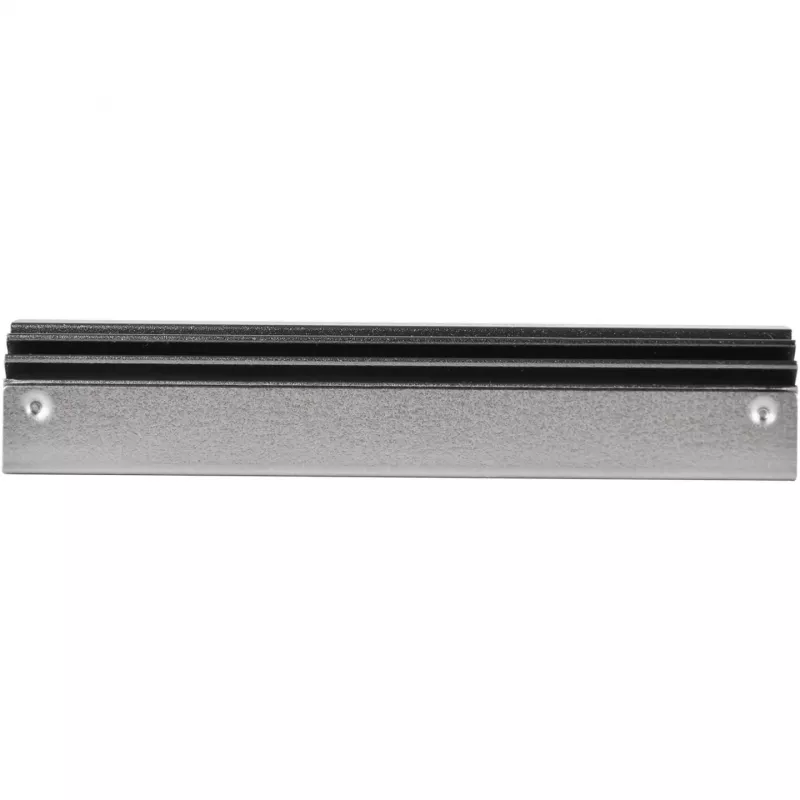

Disipador pasivo M.2 SILVERSTONE TP04 — disipador de aluminio para SSD M.2 (SST-TP04)

SILVERSTONE TP04 is a passive M.2 cooler featuring an aluminium heatsink engineered to reduce operating temperatures of M.2 SSDs without the use of fans. The low-profile design mounts directly onto the M.2 drive surface to conduct and dissipate heat, improving thermal stability and supporting reliable performance in compact or quiet systems where active cooling is impractical.

Advantages

The aluminium construction provides good thermal conductivity while keeping weight and thickness to a minimum, enabling installation in cramped spaces and low-clearance enclosures. Passive operation eliminates noise and mechanical components, reducing maintenance and potential failure points. Direct contact with the SSD surface helps to lower peak temperatures, which can prevent thermal throttling and contribute to longer drive life in constrained airflow environments.

Suitable for

• Mini-ITX and small-form-factor (SFF) PC builds
• Silent or fanless systems and home media centres
• Laptops or compact desktops with limited internal airflow (where compatible)
• Workstations and servers that require additional passive M.2 cooling

Key specifications

• Material: aluminium heatsink for passive heat dissipation
• Form factor: low-profile design compatible with M.2 SSD surfaces
• Attachment: direct mount to M.2 drive surface using included mounting method
• Cooling type: passive (fanless) operation
• Intended use: thermal management for single-sided or double-sided M.2 SSDs depending on clearance

How to use

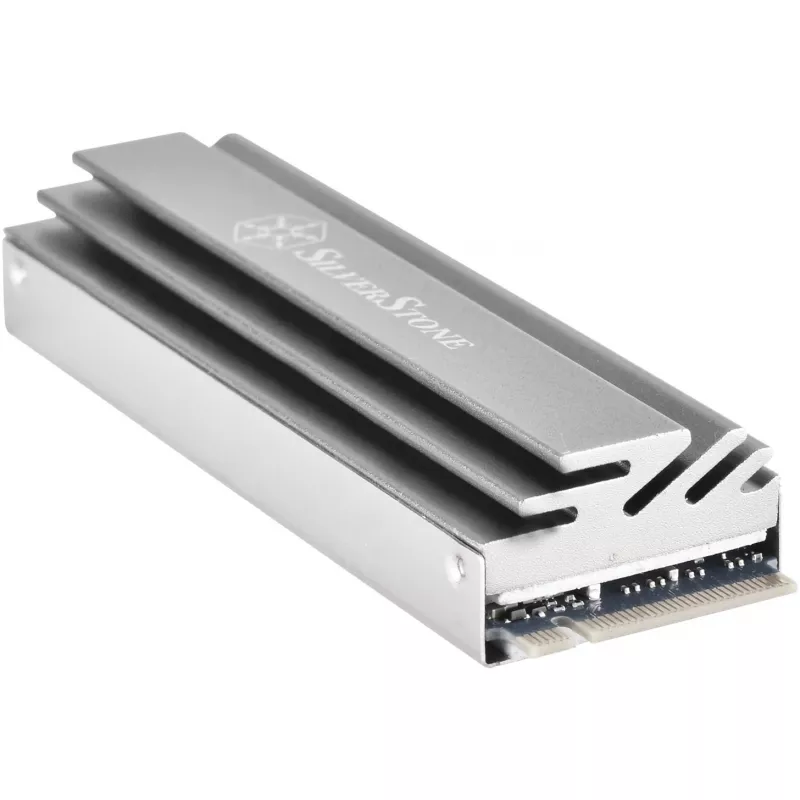

Turn off the system and disconnect power before installation. Remove any existing thermal pads or covers from the M.2 SSD if necessary, then align the SILVERSTONE TP04 heatsink with the drive surface. Attach the heatsink according to the included mounting instructions, ensuring firm contact between the aluminium base and the SSD controller/heat-producing components. Reinstall the M.2 module into its slot if removal was required and restore system power. After installation, verify that the drive is properly seated and that the heatsink does not obstruct adjacent components or slots.

Recommendations

For best results, use the TP04 in systems with limited airflow or where silent operation is important. Confirm physical clearance in your case or laptop before purchase, and follow the manufacturer’s mounting instructions to ensure proper thermal contact. If the M.2 slot is located under other components, check for potential interference and avoid overtightening to prevent damage to the drive or connector.
