Distribuidor de empalmes de fibra óptica para carril DIN DIGITUS DN-96893 — en ángulo, 6 SC DX / LC Quad, aluminio, gris

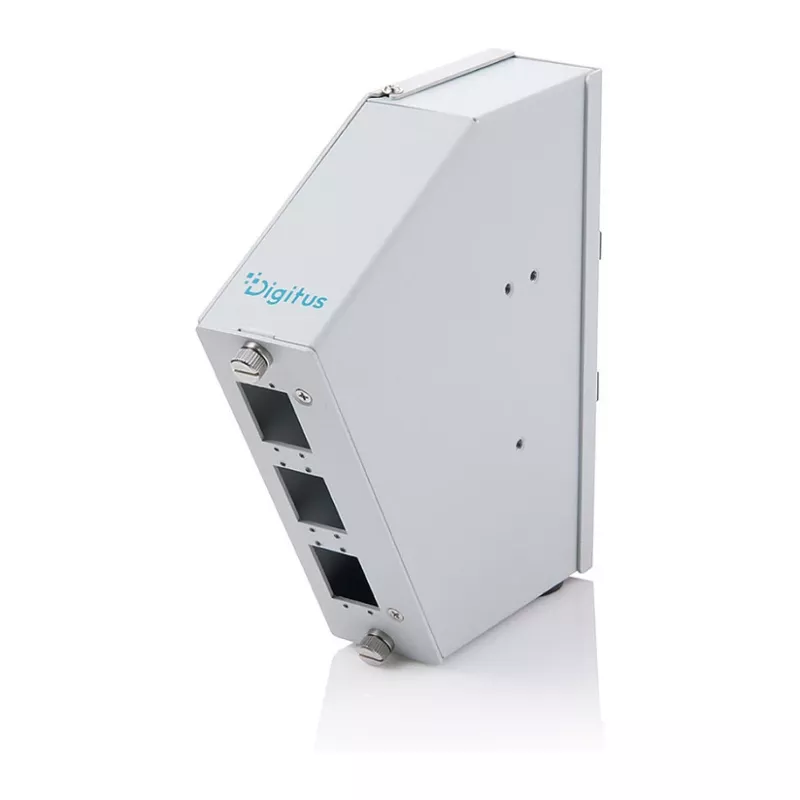

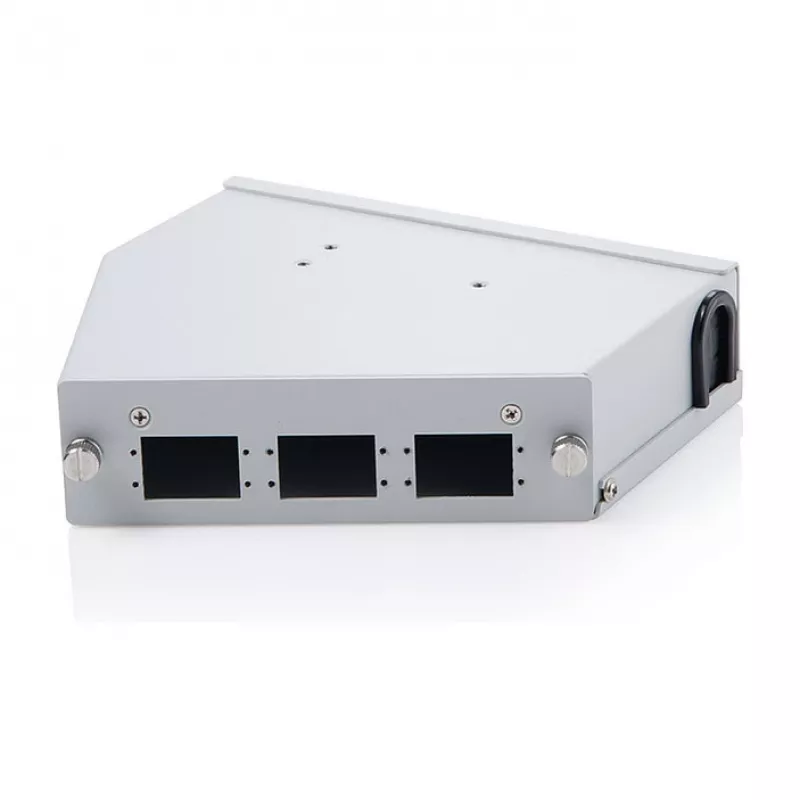

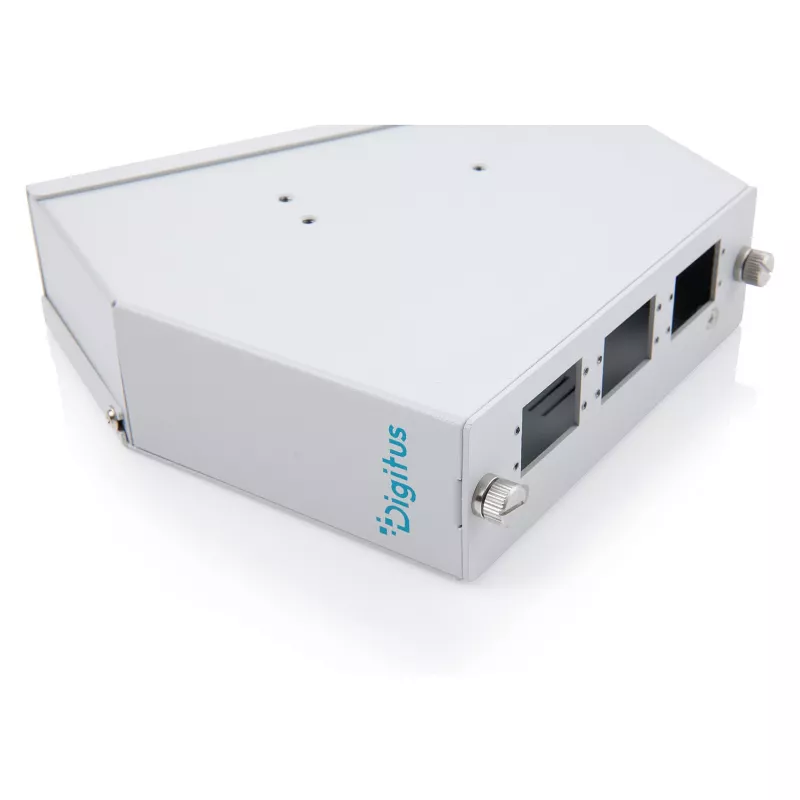

DIN rail fiber optic splice distributor DIGITUS DN-96893 is an angled, compact enclosure for splicing and distributing up to 6 SC DX or LC Quad connectors. Constructed from aluminium in grey, the unit is designed for mounting on standard TS35 DIN rails in distribution cabinets, industrial racks and control enclosures. The angled front improves access to connector ports and helps maintain proper bend radius in confined spaces. Integrated cable entries and internal routing channels support structured cable management and reduce mechanical stress on fibres.

Advantages

The aluminium housing provides mechanical stability while remaining lightweight. Its angled design increases accessibility to the connector panel and simplifies installation in tight cabinet layouts. Built-in U-shaped cable entries with closed membranes offer organised cable entry points and protection against dust ingress. The internal splice cassette supports both crimp and heat-shrink tubing splices, and the product supports a compact arrangement of up to six SC DX or LC Quad adapters for space-efficient distribution.

Suitable for

• FTTH termination and distribution in multi-dwelling or single-family installations
• Industrial network cabinets and automation control enclosures
• Telecom distribution racks and small patch panels
• Building infrastructure backbones and consolidation points
• Field or workshop installations that require DIN-rail mounting

Key specifications

• Configuration: angled DIN-rail mounted splice distributor for up to 6 adapters
• Adapter types supported: SC DX and LC Quad
• Material: aluminium housing with grey finish

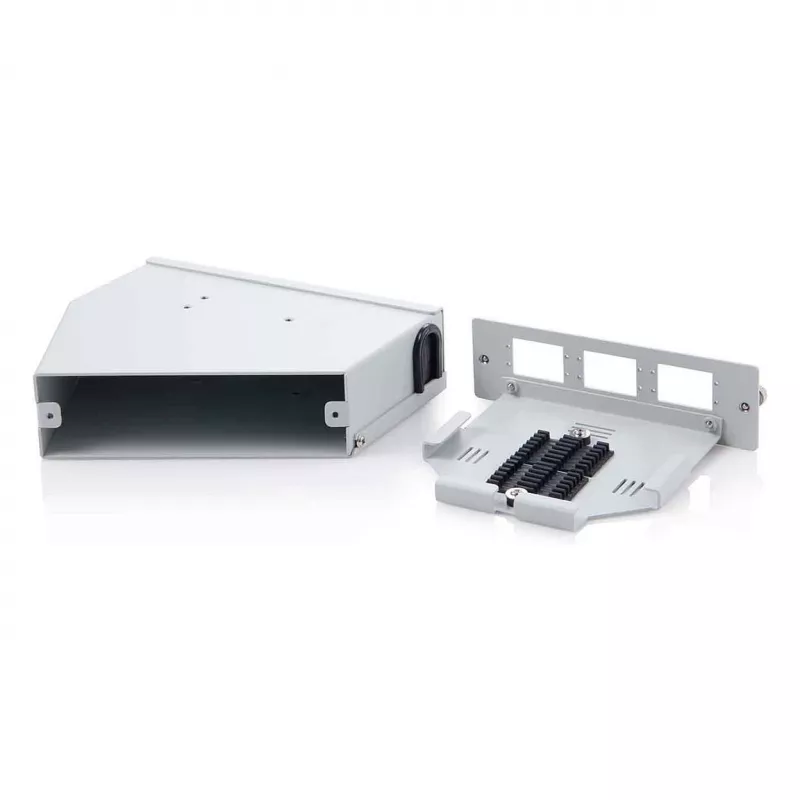

• Internal splice support: cassette for crimp and heat-shrink tubing
• Splice positions: capacity for SC splice comb (12 positions) or LC splice comb (24 positions)
• Cable diameter compatibility: from 5 mm (minimum) up to 14 mm
• Cable entry: U-shaped cable entry with closed membrane for organised routing

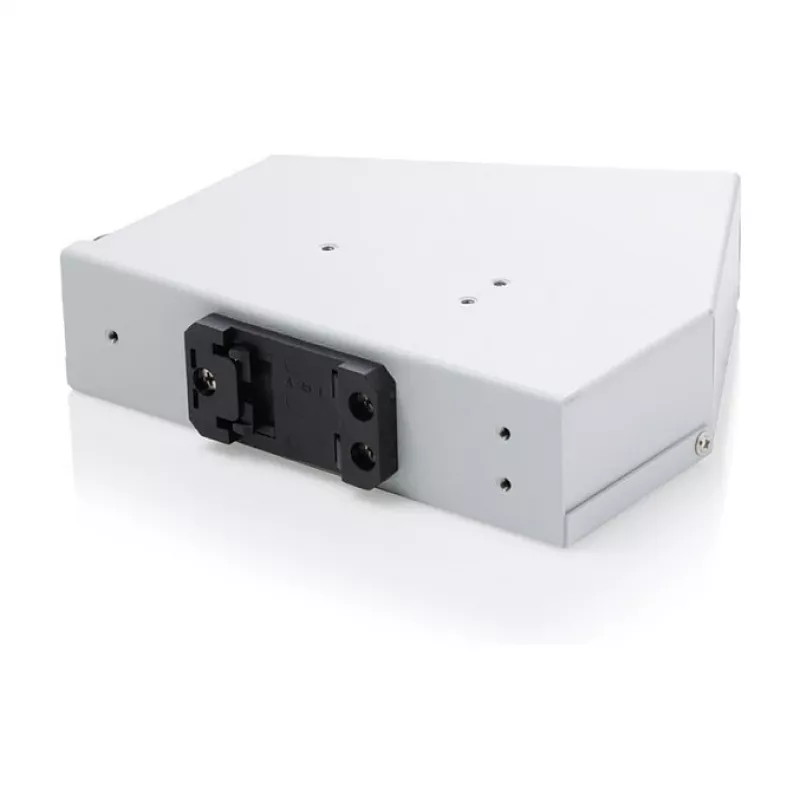

• Mounting: clip for TS35 DIN rail installation
• Dimensions (W × D × H): 45 × 161 × 177 mm
• Colour: grey

How to use

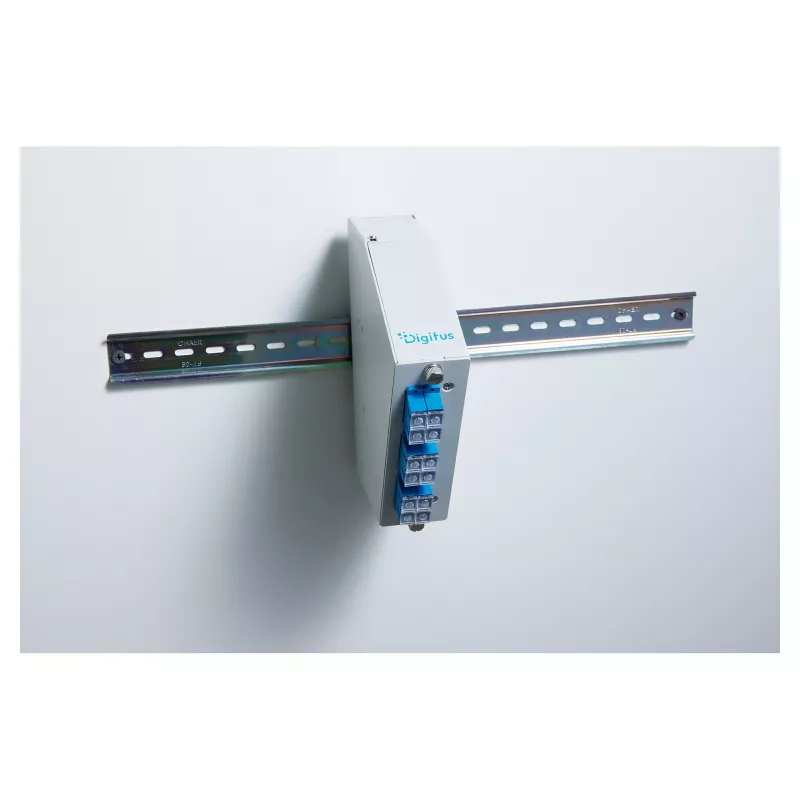

Mount the enclosure on a standard TS35 DIN rail using the integrated DIN clip. Open the front panel to access the adapter ports and the internal splice cassette. Route incoming fibre cables through the U-shaped cable entries, remove the membrane where needed and secure cables to the internal routing channels to maintain correct bend radius. Prepare and terminate fibres according to the chosen splice method (crimp or heat-shrink), place splices into the cassette and organise excess fibre in the storage area. Install SC DX or LC Quad adapters in the adapter positions and close the front panel to secure the connections.

Recommendations

Ensure fibres are handled in a clean environment and that bending radii are not exceeded during installation. Use appropriate strain relief and secure cable glands where required. For long-term reliability in industrial environments, verify that cable entry seals are correctly closed to protect against dust and contaminants.
