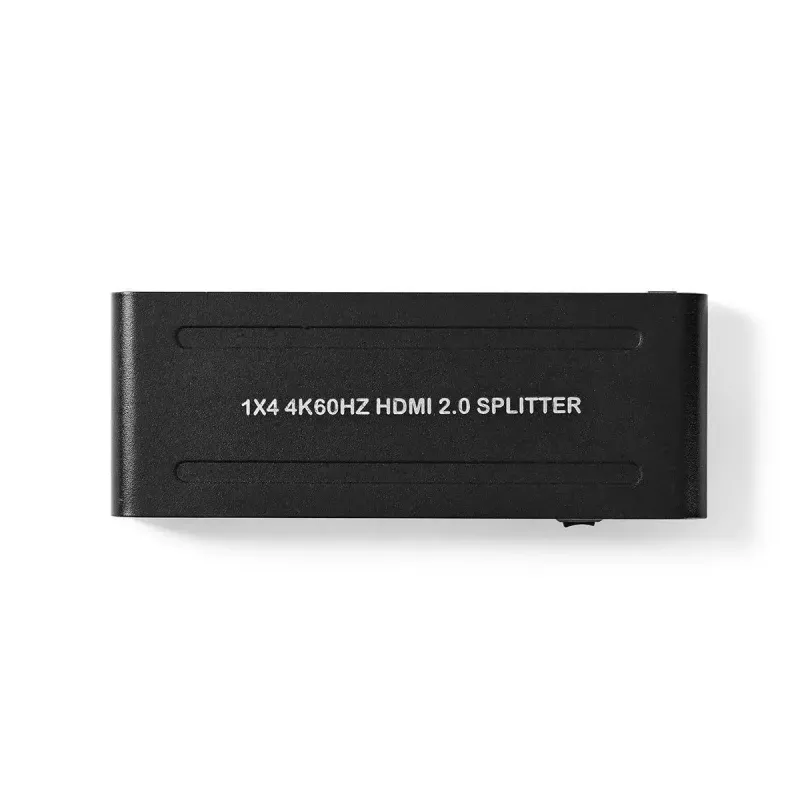

Divisor de vídeo Nedis VSPL3474AT

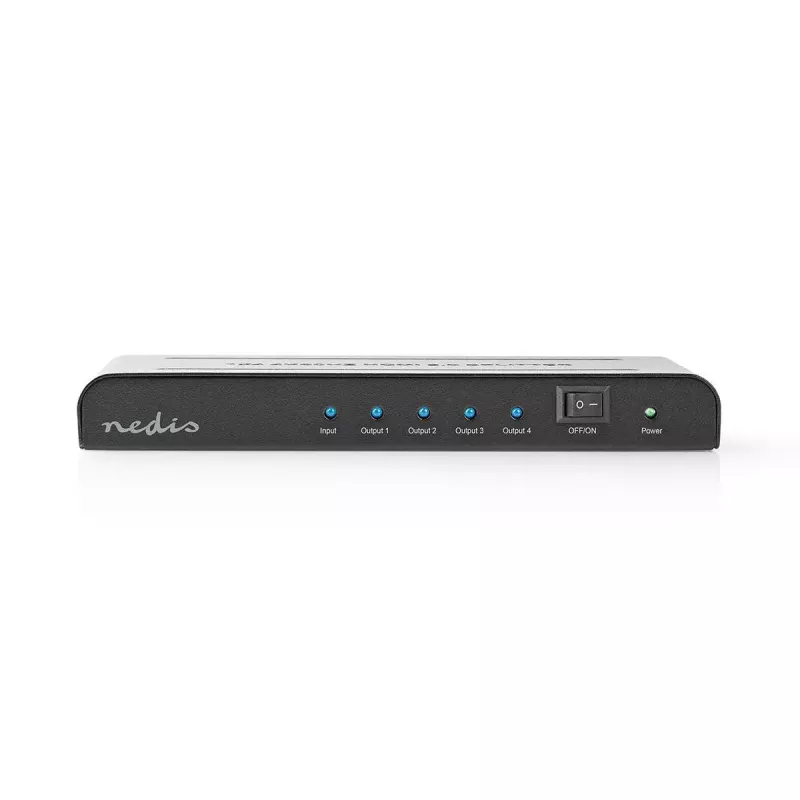

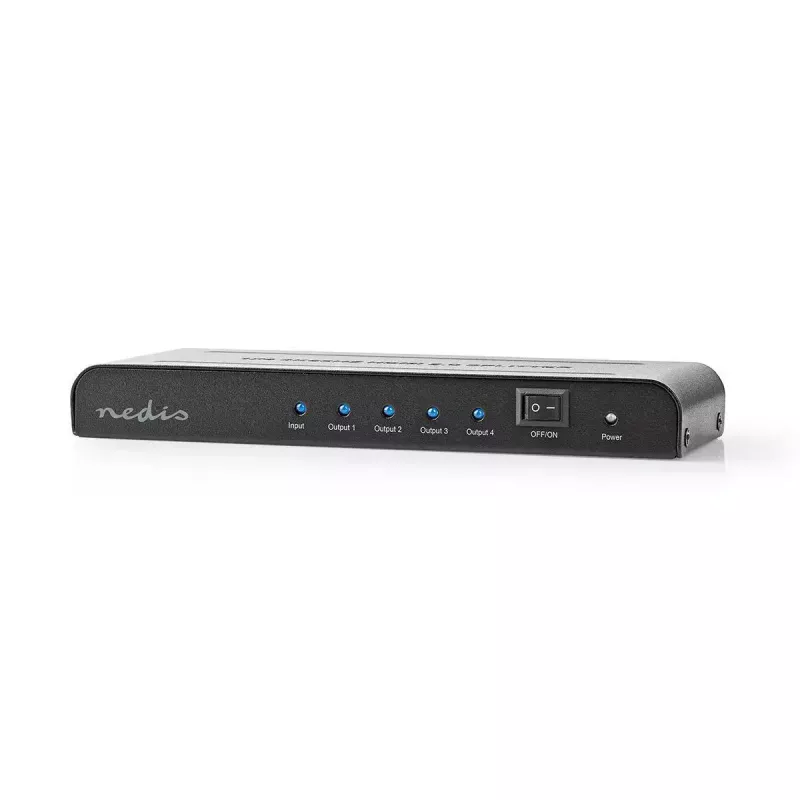

The Nedis VSPL3474AT is a 4x HDMI video splitter that distributes a single HDMI source to up to four displays while maintaining 4K Ultra HD resolution at 60 Hz. Its compact metal housing (67 mm x 178 mm x 21.2 mm) and fanless design make it suitable for desktop installations and shallow AV racks. The unit supports automatic EDID management and standard HDMI signal formats to ensure consistent image quality across connected screens with minimal configuration.

Advantages

The splitter offers four HDMI outputs so the same video and audio signal can be shown on multiple screens simultaneously without noticeable latency. Support for 4K@60 Hz preserves high-resolution content and motion clarity. The compact footprint and low typical power consumption (10 W; 4 W in standby) reduce energy use and make the device easy to place in confined spaces. Plug-and-play operation simplifies setup in meeting rooms, retail displays, or control environments.

Suitable for

• Meeting rooms and presentation systems
• Retail digital signage and multi-screen displays
• Educational environments and lecture halls
• Exhibition booths and trade shows
• Home media centers and multi-TV setups

Key specifications

• Inputs: 1 × HDMI

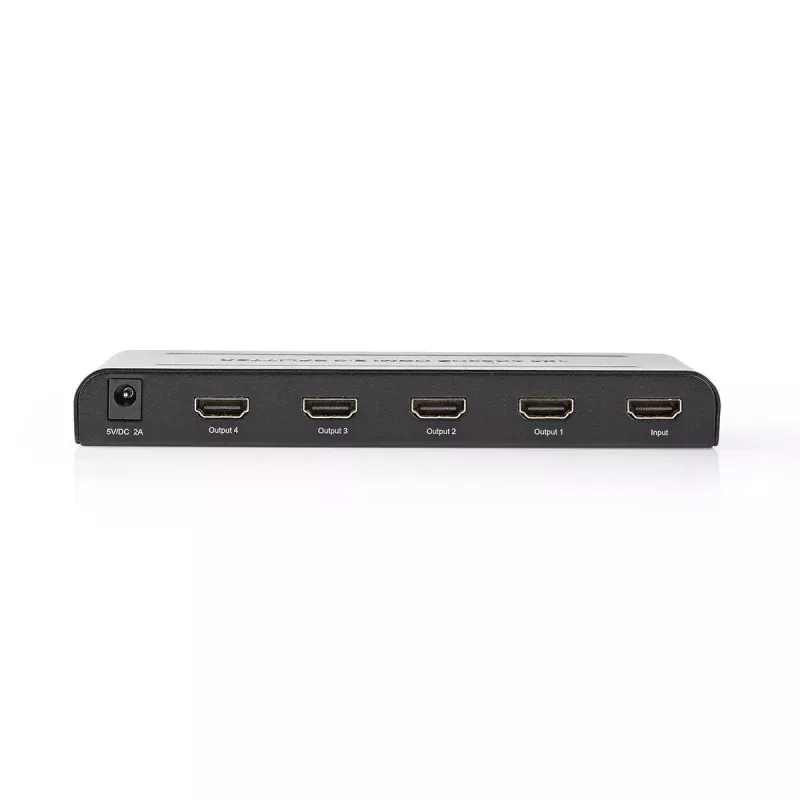

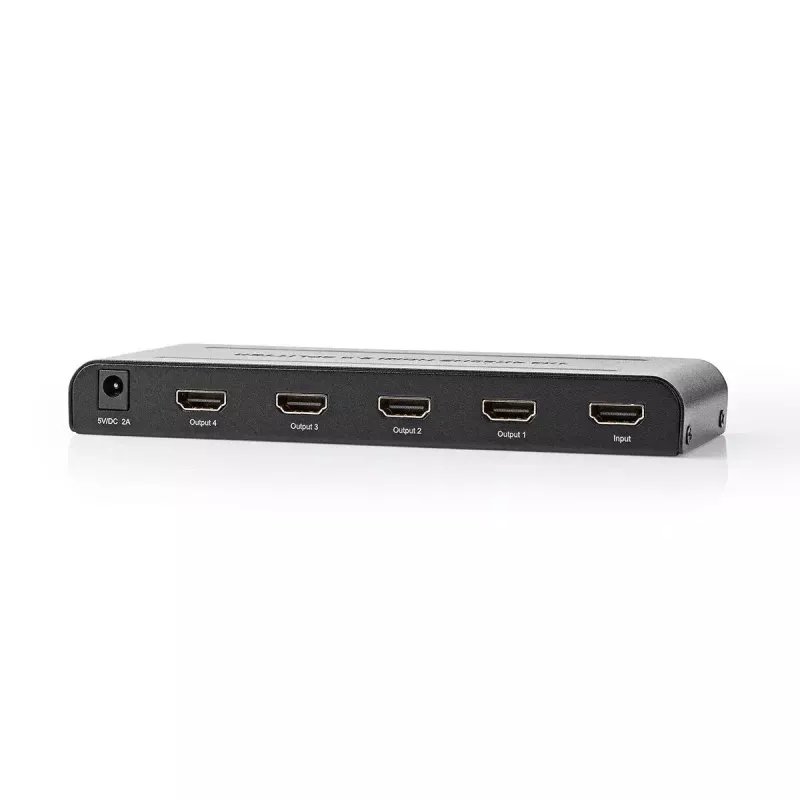

• Outputs: 4 × HDMI
• Maximum resolution: 4K Ultra HD (3840 × 2160) at 60 Hz
• Audio support: HDMI embedded audio (standard formats supported)
• Power consumption: typical 10 W, standby 4 W
• Housing dimensions: 67 mm × 178 mm × 21.2 mm
• Cooling: passive, fanless design

How to use

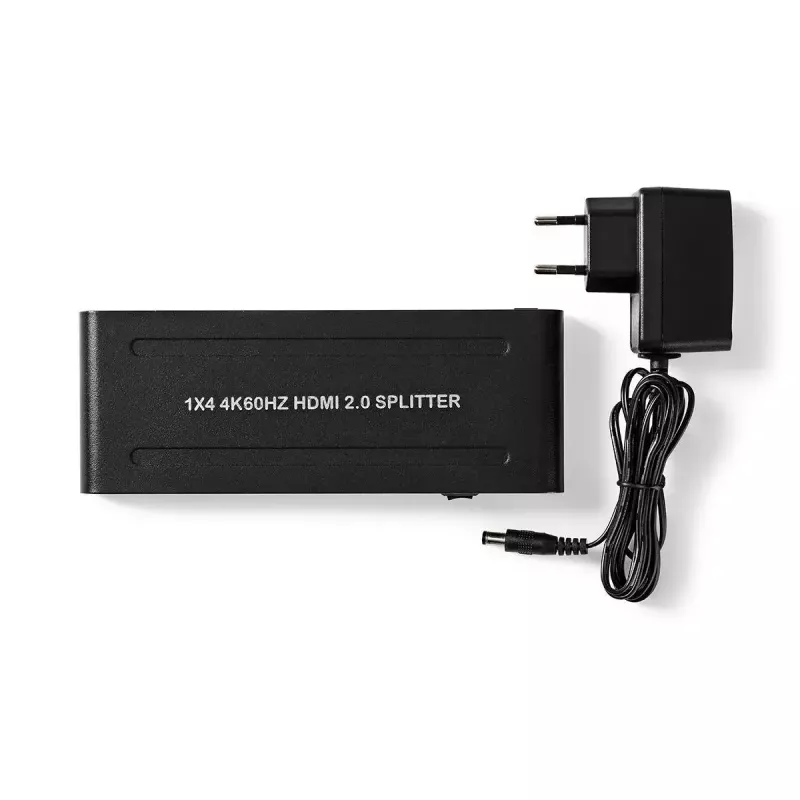

Place the Nedis VSPL3474AT on a stable surface close to your HDMI source and displays. Connect the HDMI output of your source device to the splitter's HDMI input, then connect the four HDMI outputs to the respective displays using high-quality HDMI cables rated for the required resolution. Connect the supplied power adapter and switch the unit on. The device will automatically manage EDID and synchronize the signal across all connected outputs; no additional drivers are required for standard setups.

Recommendations

For reliable 4K@60 Hz operation use HDMI cables certified for high-speed or Premium HDMI performance and keep cable runs within recommended lengths. If displays have different native resolutions, set the source or displays to a common resolution to avoid scaling artifacts. Ensure the splitter is placed in a ventilated area to maintain passive cooling performance.
