Conmutador de vídeo MicroConnect MC-HDMISWITCH0301-4K 4K 60Hz Metal Negro

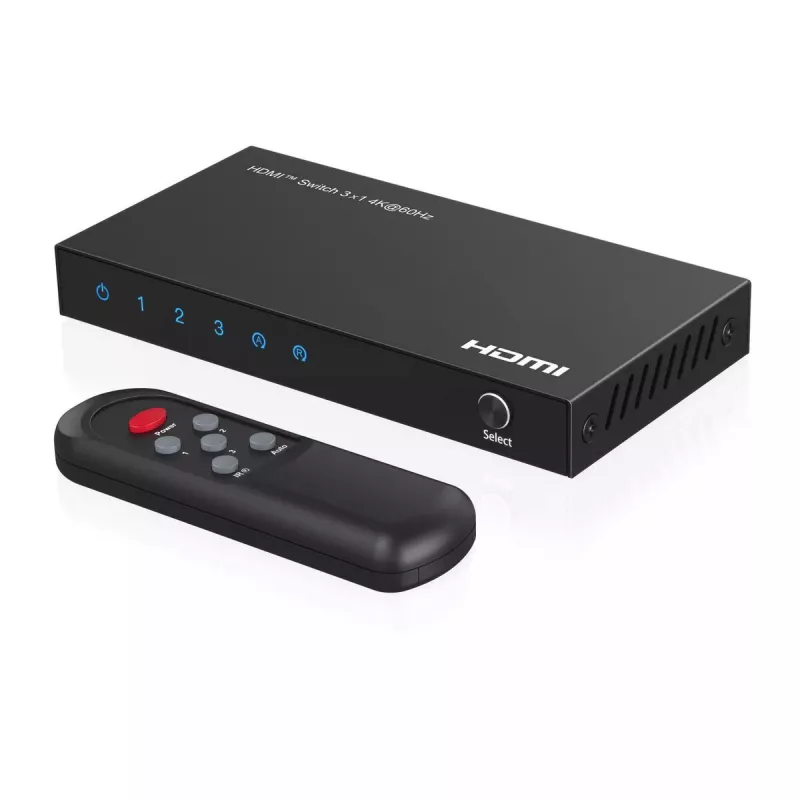

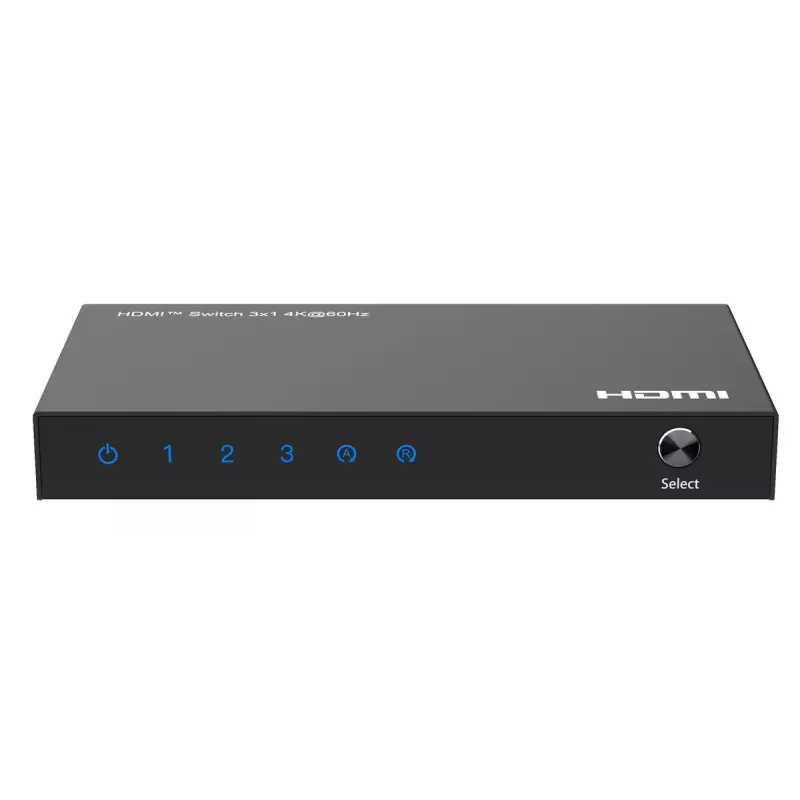

The MicroConnect MC-HDMISWITCH0301-4K is a compact metal HDMI video switch that lets you connect up to three HDMI sources to a single TV or monitor. It supports 4K resolution at 60Hz and is HDCP compliant for secure playback of protected content. The unit is powered via a Micro-USB port (5V input) and has a slim profile (112.3 mm × 56.6 mm × 14.5 mm), making it easy to place in a home theatre or gaming setup. FCC, CE and RoHS certifications ensure compliance with common safety and environmental standards.

Advantages

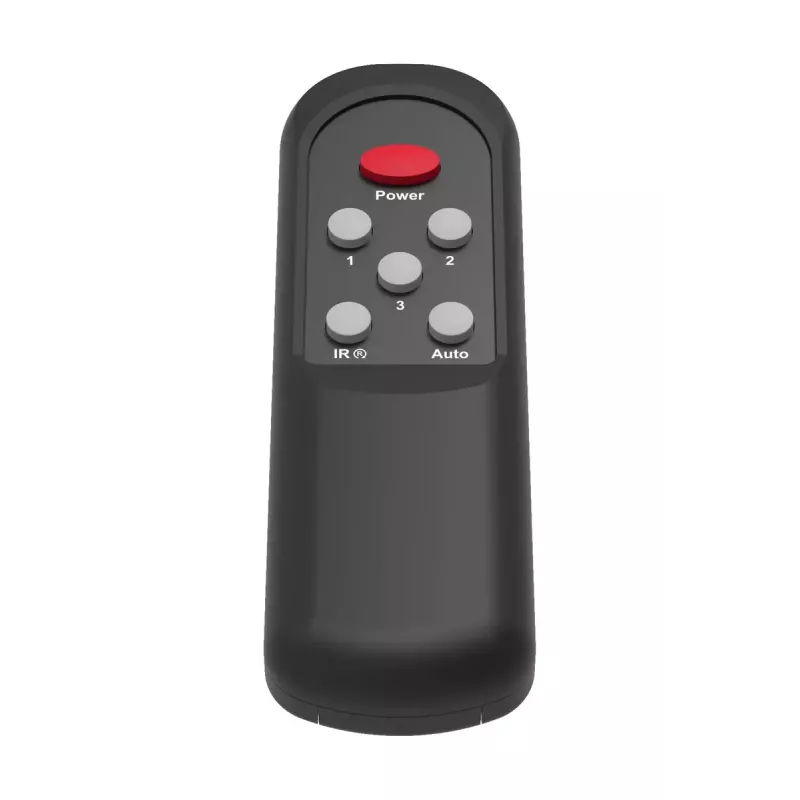

The switch simplifies multi-device connectivity by eliminating cable swapping and provides smooth 4K@60Hz video performance. Its metal housing offers durability while the included remote control enables convenient switching from a distance. The compact dimensions and simple Micro-USB power input make installation straightforward in most entertainment setups.

Suitable for

• Home theatre systems with multiple HDMI sources
• Gaming consoles requiring 4K@60Hz output
• Monitors or TVs with a single HDMI input
• Setups where remote-controlled source switching is needed

Key specifications

• Model: MicroConnect MC-HDMISWITCH0301-4K
• Inputs: 3 × HDMI
• Output: 1 × HDMI
• Supported resolution: up to 4K Ultra HD at 60Hz
• HDCP: compliant
• Power: Micro-USB, 5V input (power adapter sold separately)
• Material: metal housing
• Dimensions: 112.3 mm × 56.6 mm × 14.5 mm
• Certifications: FCC, CE, RoHS
• Brand: MicroConnect
• MPN: MC-HDMISWITCH0301-4K
• EAN: 5715063148730

How to use

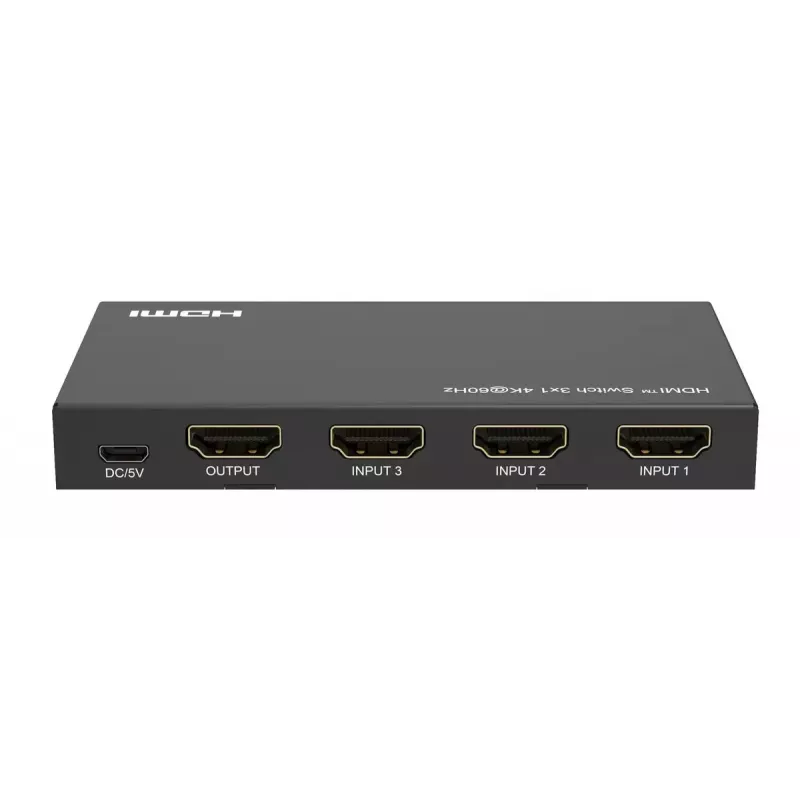

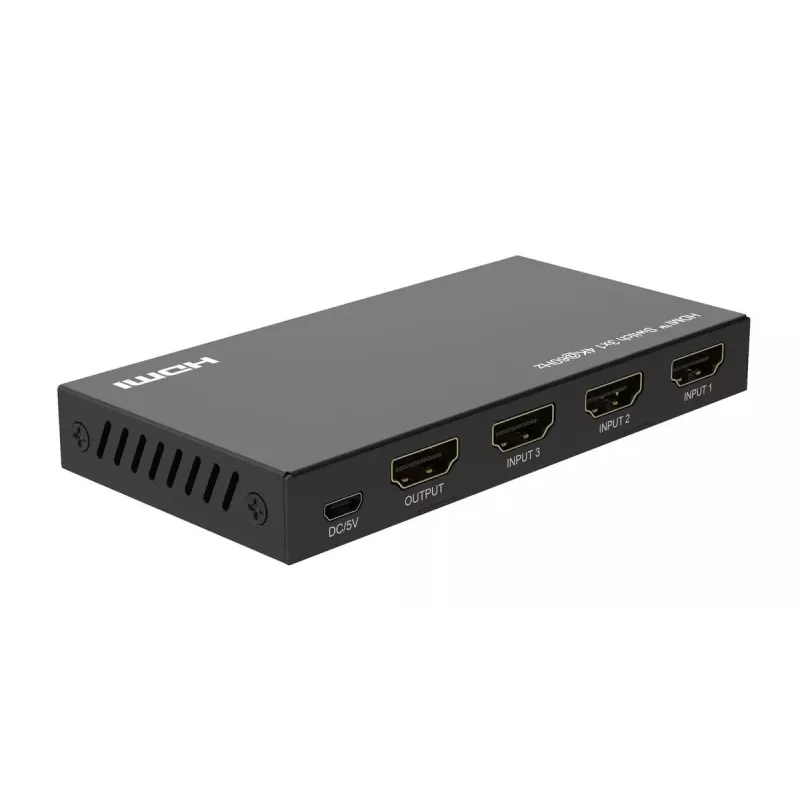

Connect up to three HDMI source devices (for example a game console, Blu-ray player and streaming box) to the switch’s HDMI input ports and connect the switch’s HDMI output to your TV or monitor. Provide power to the unit using a Micro-USB cable and a suitable 5V power adapter (sold separately). Use the included remote control or the device’s manual selector (if available) to switch between connected sources.

Recommendations

For optimal performance use high-quality HDMI cables rated for 4K@60Hz and a stable 5V power adapter. Check that connected source devices and the display support 4K@60Hz and HDCP when playing DRM-protected content.
