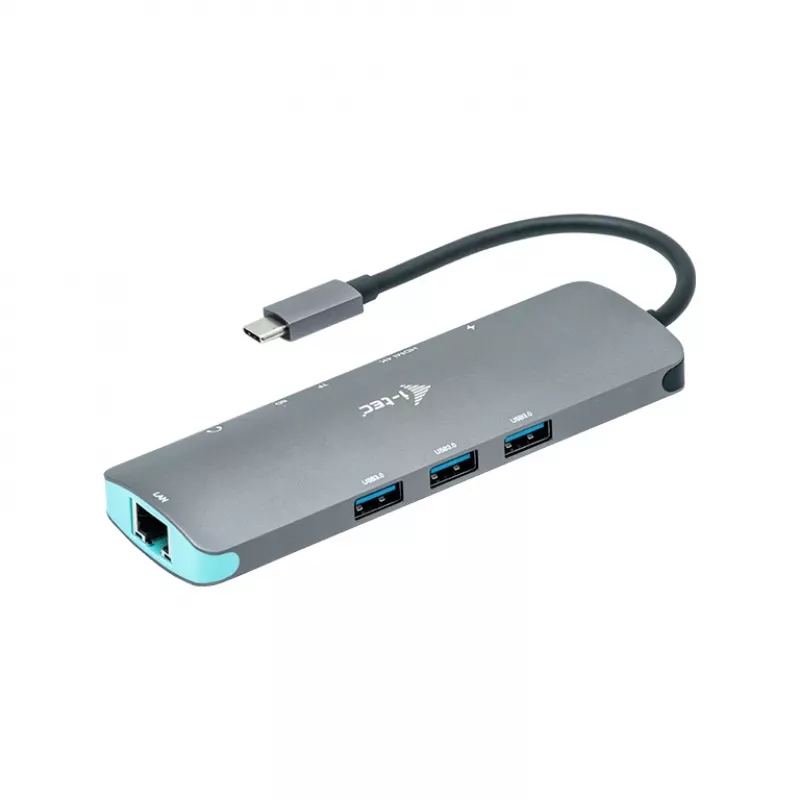

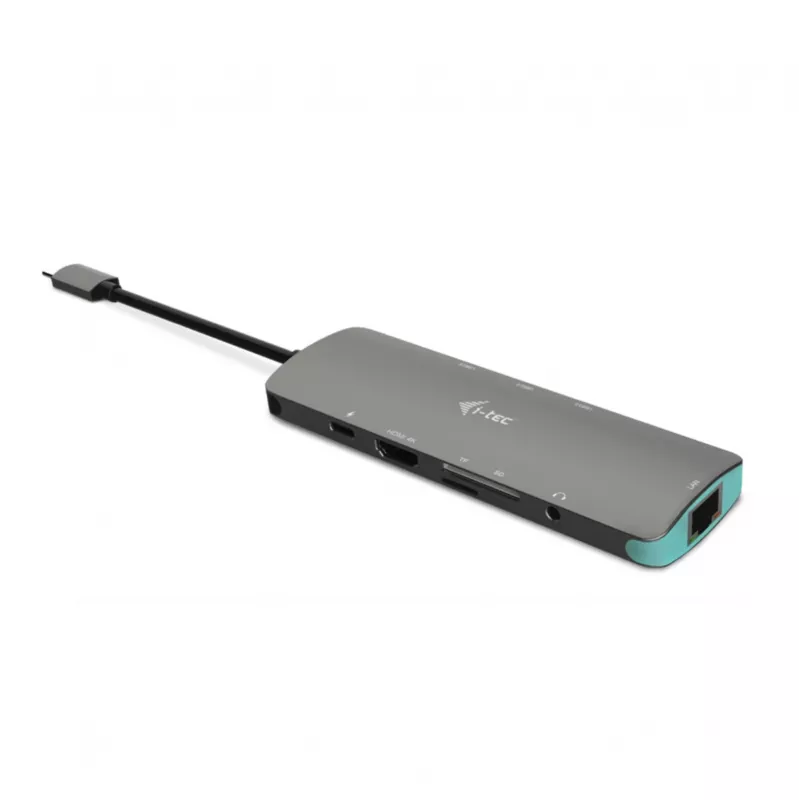

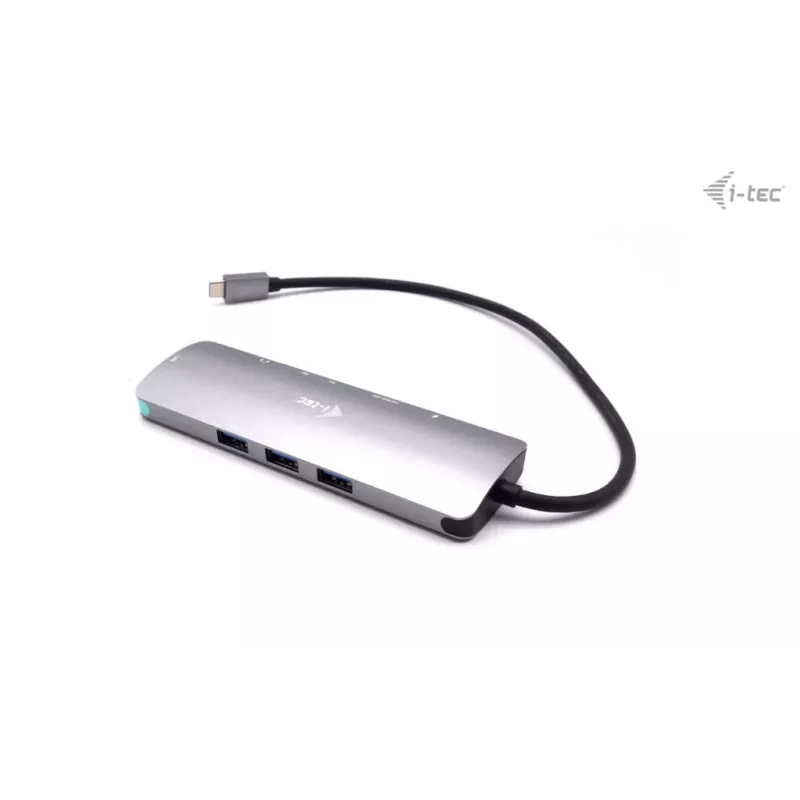

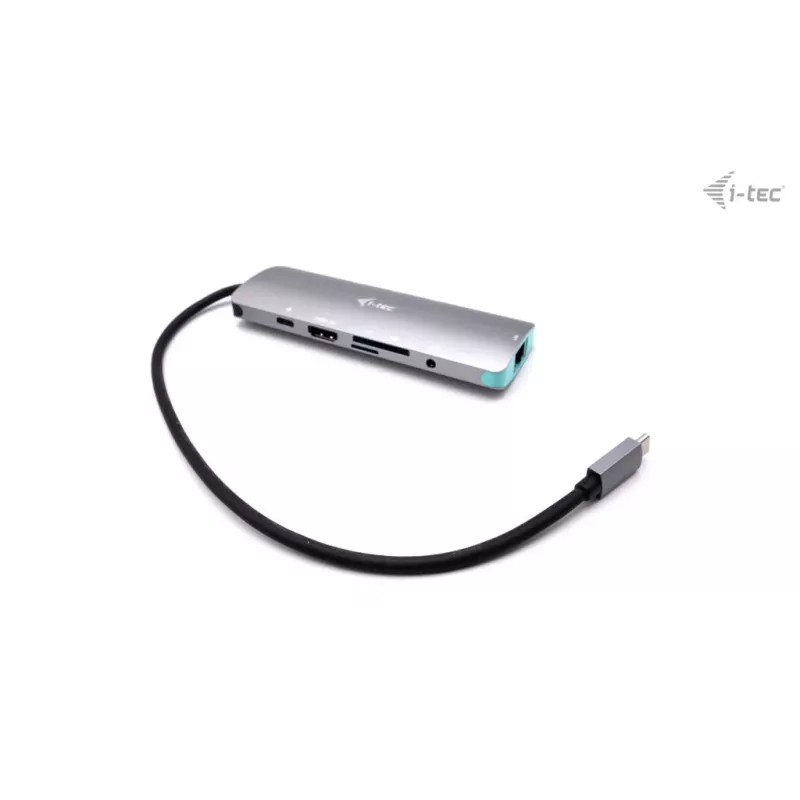

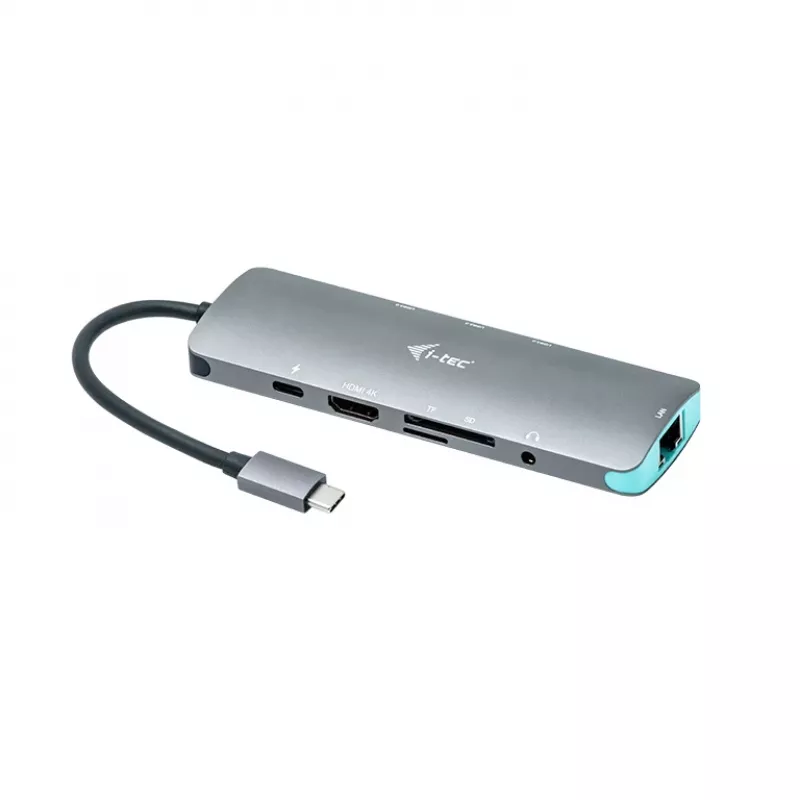

Docking Station i-tec Metal USB-C Nano Docking Station 4K HDMI LAN Power Delivery 100 W

Extend your desktop by connecting an external HDMI monitor, projector or TV via the docking station. The i-tec USB-C Metal Nano Docking Station supports Ultra HD 4K video output up to 3840×2160 @ 60Hz with audio and provides a single-cable connection to computers with a USB-C or Thunderbolt 3 port. The station includes USB-C Power Delivery up to 100 W to power a connected laptop or tablet using its original AC adapter and also supports charging of USB mobile devices.

Advantages

The docking station delivers 4K@60Hz HDMI video, integrated audio, wired Gigabit Ethernet, fast data transfer via three USB 3.0 ports, and dual SD/microSD card readers. A dedicated USB-C Power Delivery port supplies up to 100 W for laptop charging while maintaining full functionality of the other ports. The compact metal design and plug-and-play USB-C/Thunderbolt 3 connection allow quick setup with automatic driver installation from the operating system.

Suitable for

• Expanding a laptop workspace with an external HDMI monitor or TV
• Connecting to projectors for presentations
• Wired network access via Gigabit Ethernet
• Transferring data from USB devices and SD/microSD memory cards
• Charging laptops and mobile USB devices while using peripherals

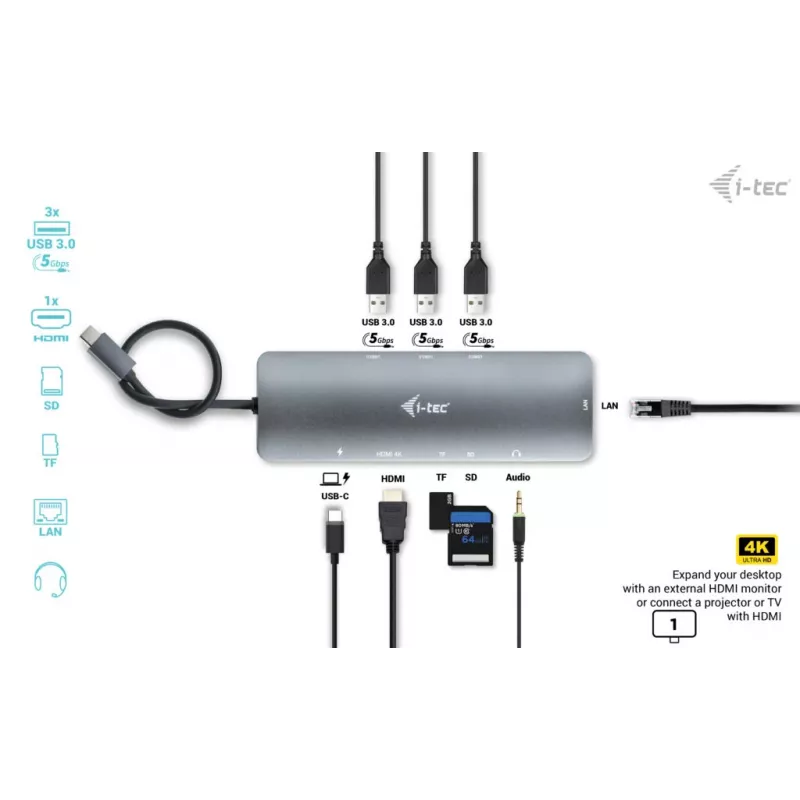

Key specifications

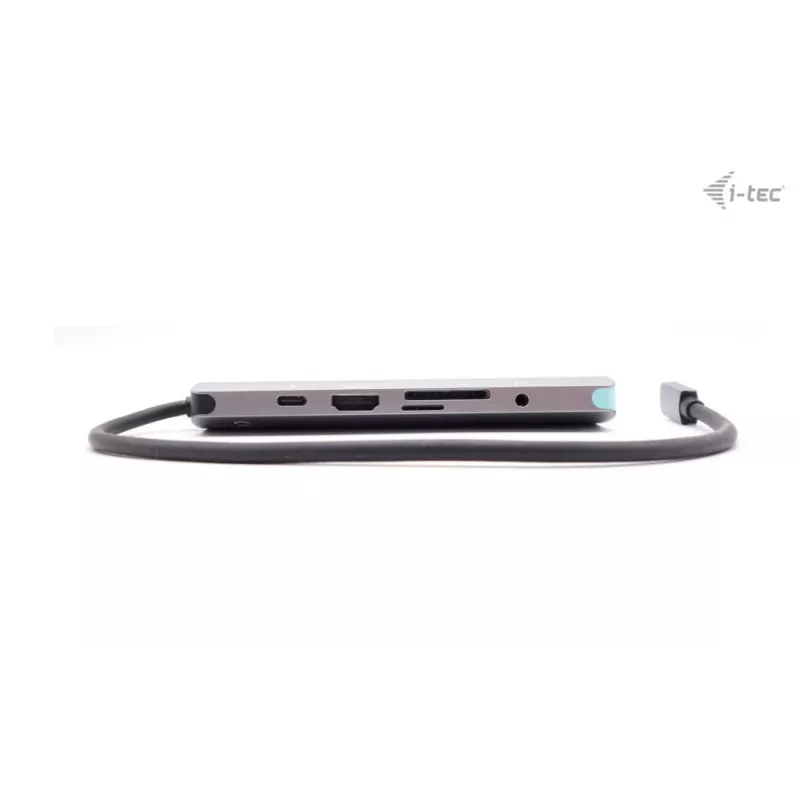

• Video output: 1× HDMI, up to 3840×2160 @ 60Hz (4K Ultra HD) with audio
• Power Delivery: 1× USB-C PD port, up to 100 W

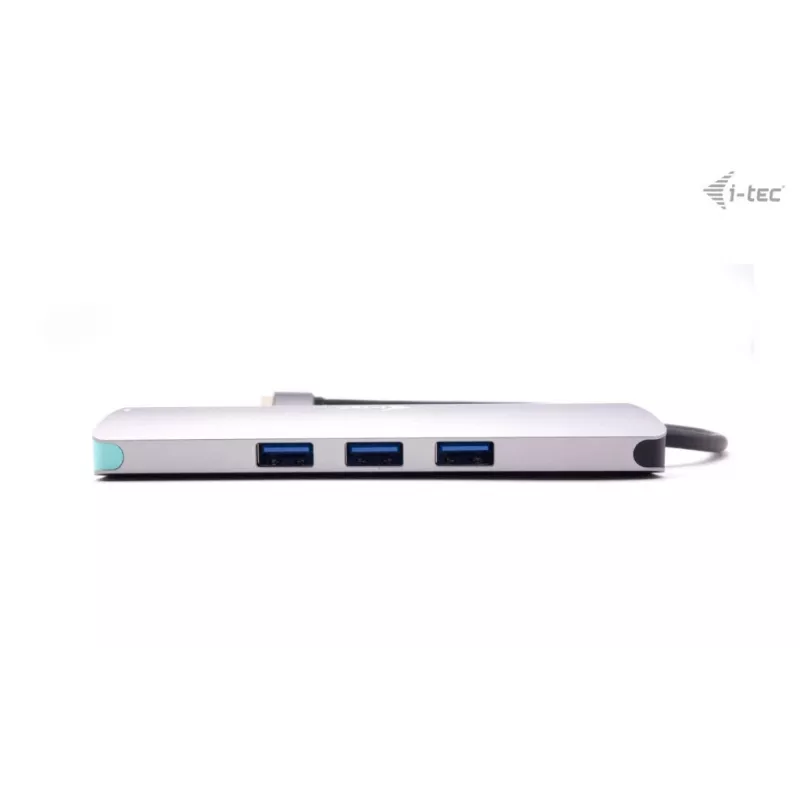

• USB: 3× USB 3.0 ports
• Network: 1× RJ-45 Gigabit Ethernet (GLAN)
• Audio: 1× combo audio jack (headphones + microphone)
• Card readers: 1× SD card reader, 1× microSD card reader
• Host connection: 30 cm cable to USB-C / Thunderbolt 3 port

How to use

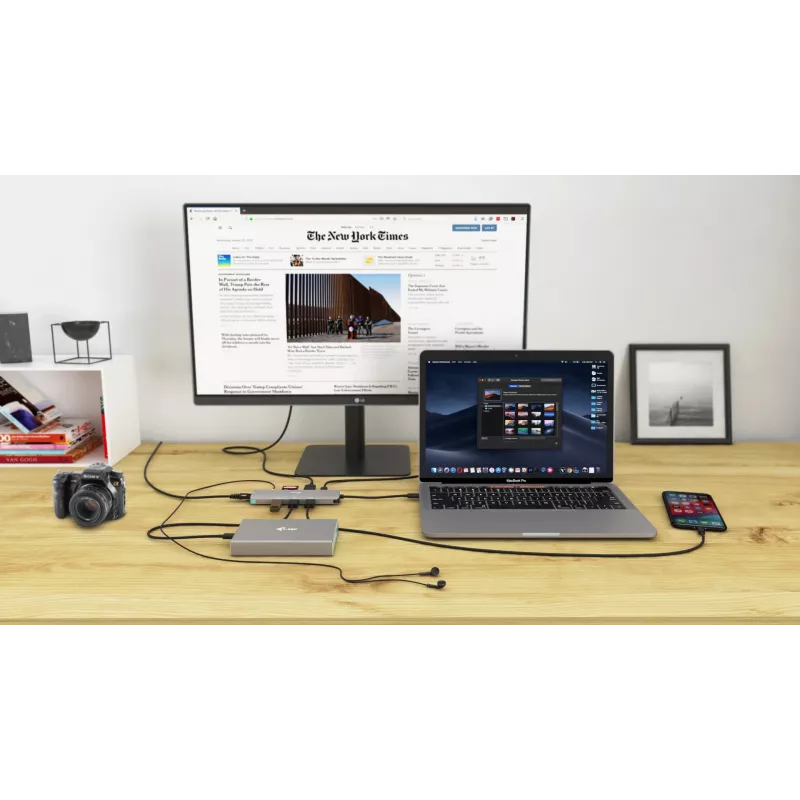

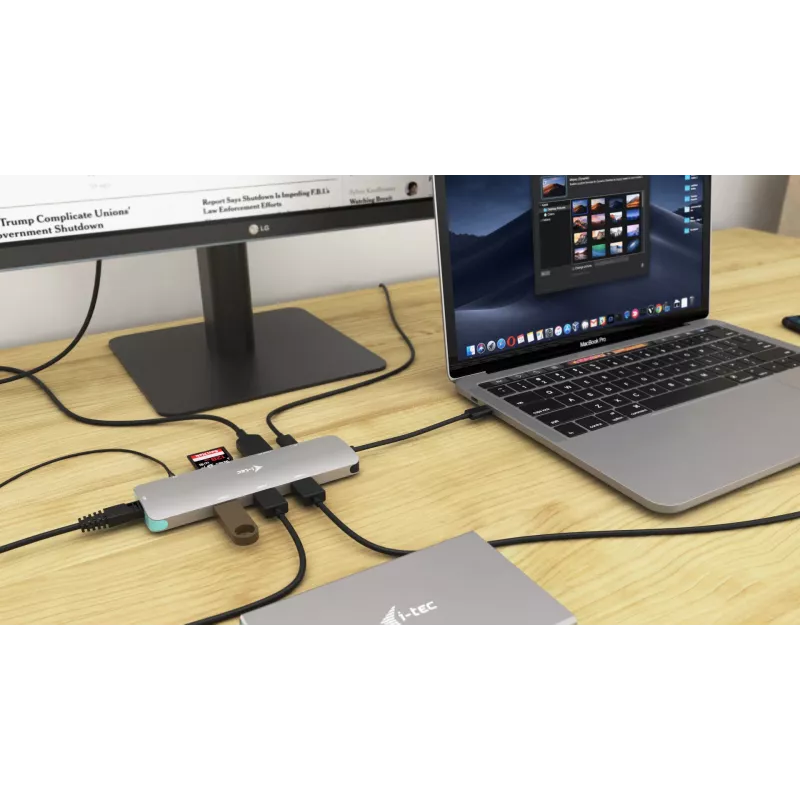

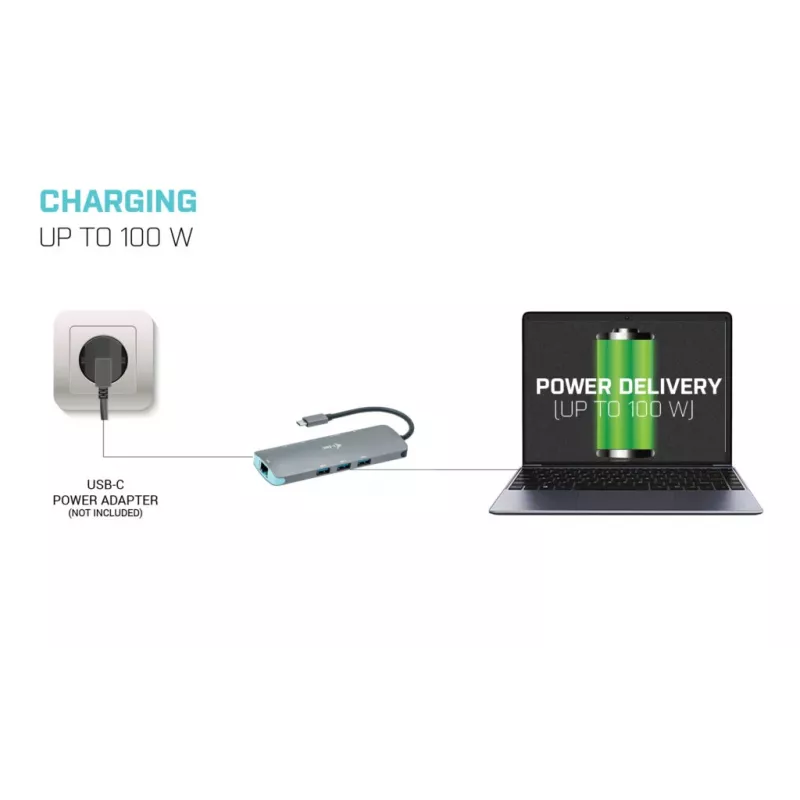

Connect the docking station to your computer’s USB-C or Thunderbolt 3 port using the integrated 30 cm cable. Attach your HDMI monitor, projector or TV to the HDMI port and any USB devices, SD or microSD cards, Ethernet cable, and audio headset to the corresponding ports. Plug the original AC adapter into the docking station’s USB-C Power Delivery port to power and charge a connected laptop or tablet. The system will install drivers automatically where supported by the operating system.

Recommendations

If your device’s USB-C port does not support video output (DisplayPort Alt Mode), some functions of the docking station may not be available. If you disconnect the USB-C power adapter, the docking station may restart and temporarily disconnect and reconnect attached devices. For device-specific compatibility details, consult your laptop/tablet/smartphone manual or contact the device manufacturer. For additional assistance, contact i-tec technical support at [email protected].
