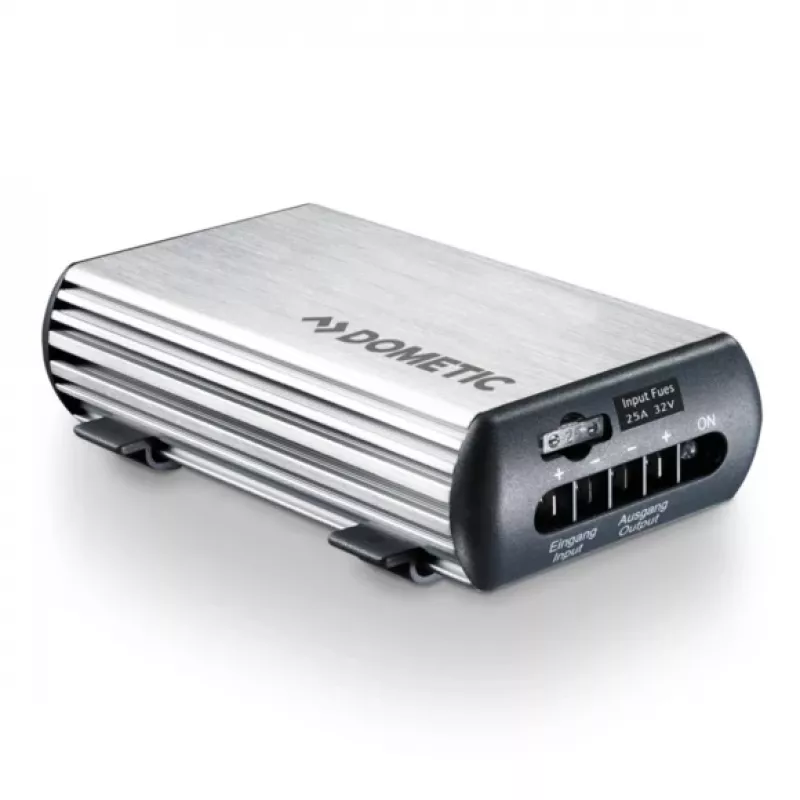

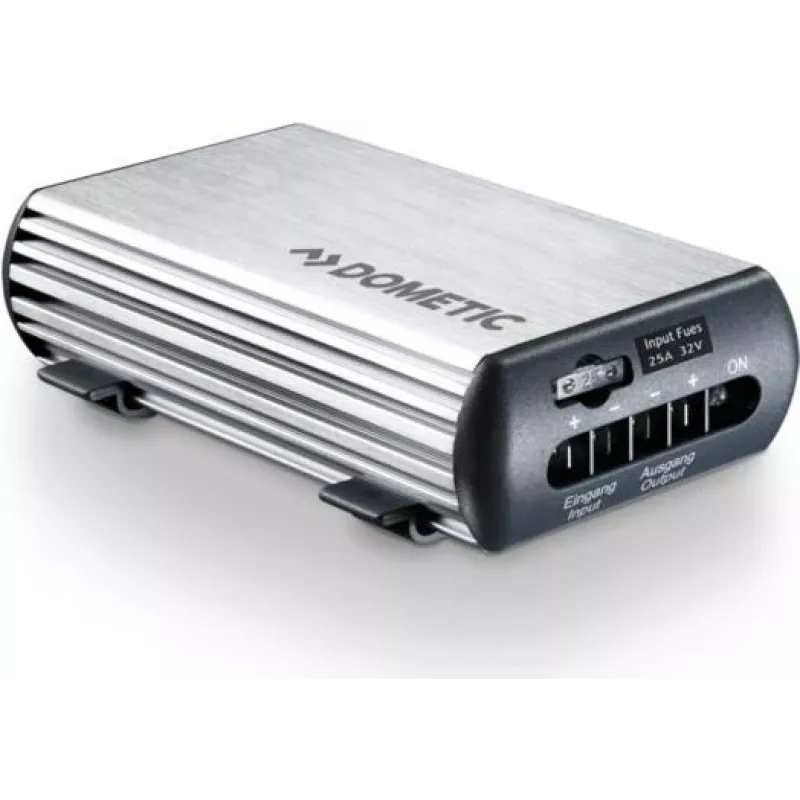

Dometic PerfectCharge DCDC 24 fuente de alimentación y convertidor de tensión para interior plata (9600000040)

In vehicle, marine, and off-grid electrical systems, unstable or incorrect DC voltage can damage sensitive equipment and reduce battery life. The Dometic PerfectCharge DCDC 24 solves this by converting a fluctuating 18–32 V DC input into a stable 24 V DC output, delivering up to 240 W of continuous power with galvanic isolation for safe operation.

Who is it for

This converter is built for installers and users who need reliable 24 V power from 12 V or 24 V vehicle electrical systems. It suits motorhomes, boats, and off-grid solar setups where a regulated 24 V supply is required for appliances, lighting, or charging systems.

Main features

• Converts 18–32 V DC input to regulated 24 V DC output
• Continuous output current up to 10 A (240 W)
• Galvanic isolation between input and output for safety
• High efficiency up to 90% reduces heat and energy loss
• Fanless convection cooling for silent, maintenance-free operation
• Robust aluminum housing with screw mounting for secure installation
• Protection against overload, short circuit, over-temperature, and reverse polarity
• Wide operating temperature range from -20°C to +50°C

Specifications

• Input voltage range: 18–32 V DC
• Output voltage: 24 V DC
• Output current (continuous): 10 A
• Output power: 240 W
• Efficiency: up to 90%
• Galvanic isolation: Yes
• Number of outputs: 1
• Protection features: Overload, short circuit, over-temperature, reverse polarity
• Operating temperature: -20°C to +50°C
• Housing material: Aluminum
• Mounting type: Screw mounting
• Cooling: Convection (fanless)
• Input connection: Screw terminals
• Output connection: Screw terminals
• Application: Vehicle, marine, off-grid systems

Tips

Mount the unit in a dry, ventilated area away from direct heat sources. Ensure the input supply can deliver sufficient current for the connected load. Use appropriately sized cables for the screw terminals to minimize voltage drop.
