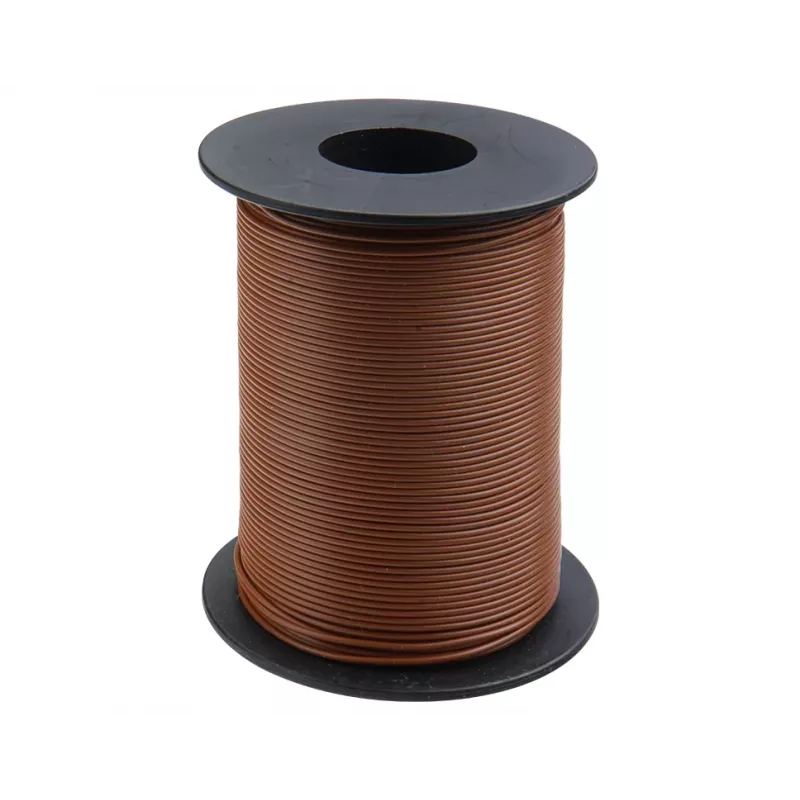

Donau Elektronik 105-8-100 hilo de conexión 1 x 0,20 mm² marrón 100 m

When prototyping or repairing electronics, unreliable wire can cause intermittent connections and wasted hours. The Donau Elektronik 105-8-100 hook-up wire solves this with a solid copper core and durable PVC insulation, ensuring stable signal and power transmission in your projects.

Who is it for

This wire is ideal for hobbyists, engineers, and technicians who need dependable single-core wire for breadboarding, PCB connections, and internal device wiring. Its 100-meter spool provides ample length for extensive prototyping or production runs.

Main features

• Solid copper conductor, 0.20 mm² cross-section (24 AWG) for easy soldering and reliable conductivity.
• Brown PVC insulation offers good flexibility and resistance to abrasion, chemicals, and moisture.
• Rated for 300 V and temperatures from -30°C to +80°C, suitable for low-voltage electronic circuits.
• Supplied on a convenient spool for tangle-free dispensing and storage.
• RoHS compliant, meeting environmental standards for restricted substances.

Specifications

• Product type: Hook-up wire
• Number of cores: 1
• Conductor cross-section: 0.20 mm²
• Conductor material: Copper
• Conductor type: Solid core
• AWG equivalent: 24 AWG
• Insulation material: PVC (Polyvinyl Chloride)
• Cable length: 100 m
• Colour: Brown
• Nominal voltage: 300 V
• Temperature range: -30°C to +80°C
• Outer diameter (approx.): 1.2 mm
• RoHS compliance: Yes
• Packaging: Spool

Tips

For best results, strip the insulation carefully to avoid nicking the solid core, and use a soldering iron with appropriate temperature. Store the spool in a dry place to maintain insulation integrity.
