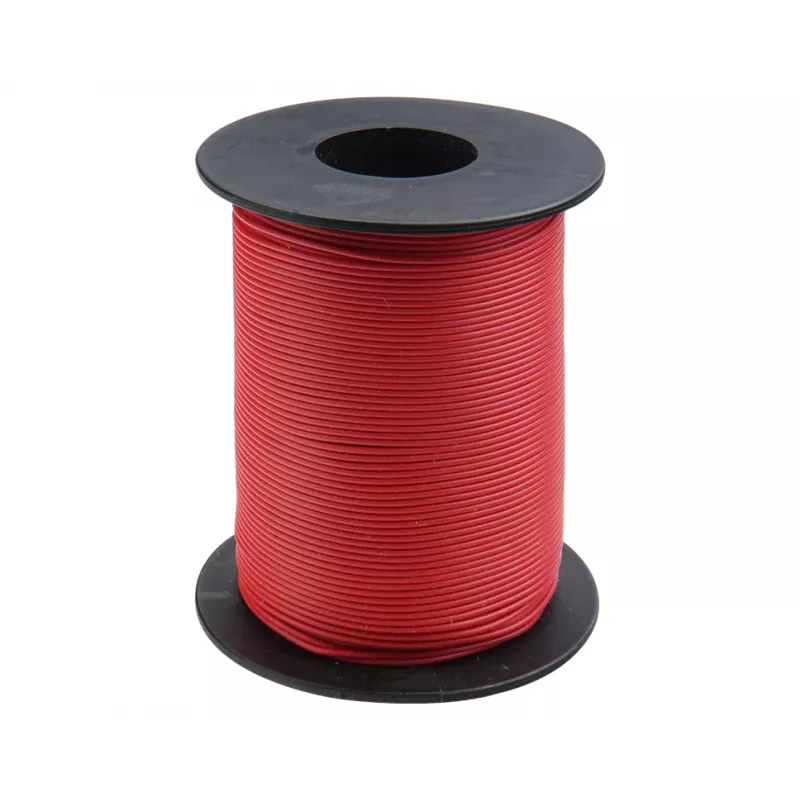

Donau Elektronik 119-10 cable de instalación flexible 0,14 mm² rojo 100 m bobina

The Donau Elektronik 119-10 stands out among hook-up wires with its fine-stranded tinned copper conductor and compact 0.14 mm² cross-section, delivering reliable signal and power connections in tight spaces. Supplied on a convenient 100-meter spool, this red PVC-insulated wire is ready for everything from bench prototyping to final assembly.

Highlights

• Fine-stranded 18 x 0.1 mm tinned copper conductor for excellent flexibility and solderability
• Compact 1.2 mm outer diameter fits densely packed electronics
• Rated for up to 500 V and 1.5 A, with a wide operating range from -30 °C to +80 °C
• Low conductor resistance of 138 Ohm/km ensures efficient signal transfer
• Supplied on a 100 m spool for continuous use without mid-run splices

In daily use

Whether wiring a control cabinet, repairing a model railway, or assembling a prototype, this wire handles cleanly and strips easily. The tinned copper strands resist corrosion and take solder readily, while the red PVC jacket provides clear identification and abrasion protection. The spool keeps the wire tangle-free, so you can pull exactly the length you need.

Full specifications

• Product type: Stranded hook-up wire
• Number of cores: 1
• Conductor cross-section: 0.14 mm² (AWG 26)
• Conductor construction: 18 x 0.1 mm tinned copper
• Insulation: PVC
• Wire colour: Red
• Length: 100 m
• Outer diameter: 1.2 mm
• Rated voltage: 500 V
• Max current carrying capacity: 1.5 A
• Operating temperature range: -30 °C to +80 °C
• Conductor resistance: 138 Ohm/km
• Packaging: On spool
• Application: General purpose, internal wiring, model building

Final note

For engineers and hobbyists who need a dependable, flexible wire in a convenient bulk length, the Donau Elektronik 119-10 is a practical choice that keeps projects moving.
