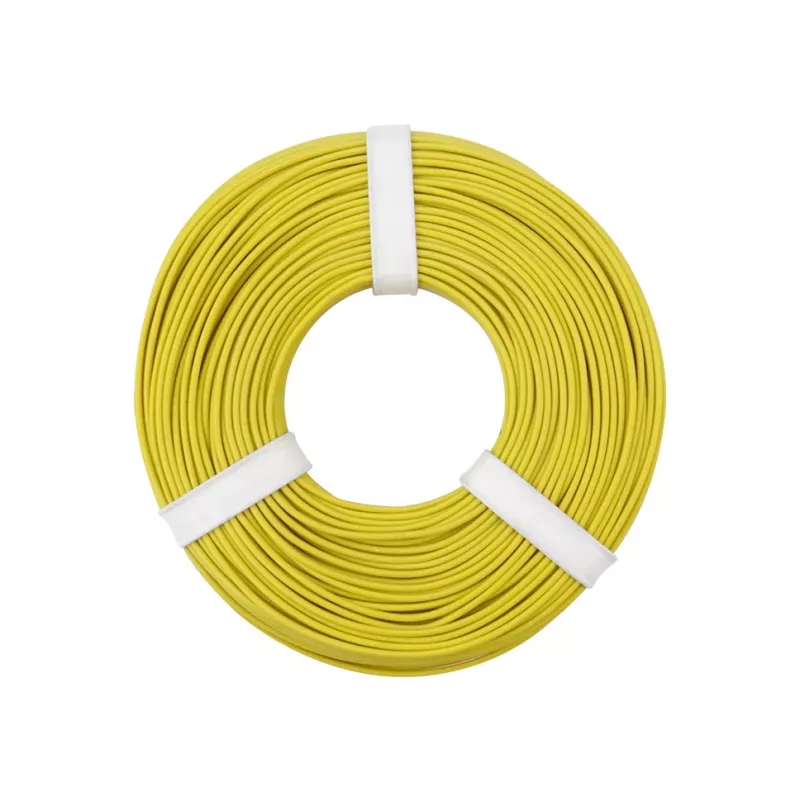

Donau Elektronik 125-053 cable flexible 0,25 mm² amarillo 50 m

This single-core stranded hook-up wire offers a practical 50-metre length, ideal for continuous wiring runs in electronics and prototyping. The yellow PVC insulation provides clear colour coding and basic protection for low-voltage signal and control circuits.

Highlights

• Stranded copper conductor, 0.25 mm² cross-section
• Flexible PVC insulation in yellow
• Supplied on a 50 m spool
• Rated for up to 300 V and 1.5 A

In daily use

The 7-strand construction keeps the wire flexible enough for neat routing inside enclosures, while the 0.25 mm² cross-section suits low-current connections such as sensor wiring, LED circuits, and signal lines. The yellow jacket makes it easy to identify a dedicated function in multi-wire installations.

Full specifications

• Wire type: stranded hook-up wire
• Number of cores: 1
• Conductor cross-section: 0.25 mm²
• Conductor material: copper
• Number of strands: 7
• Strand diameter: 0.2 mm
• Insulation material: PVC
• Insulation colour: yellow
• Length: 50 m
• Rated voltage: 300 V
• Rated current: 1.5 A
• Temperature range: -30°C to +80°C
• Outer diameter: 1.2 mm
• Conductor resistance: 79.8 Ohm/km at 20°C
• Packaging: spool

Final note

A dependable yellow hook-up wire for general-purpose low-voltage wiring, supplied in a convenient 50-metre length.
