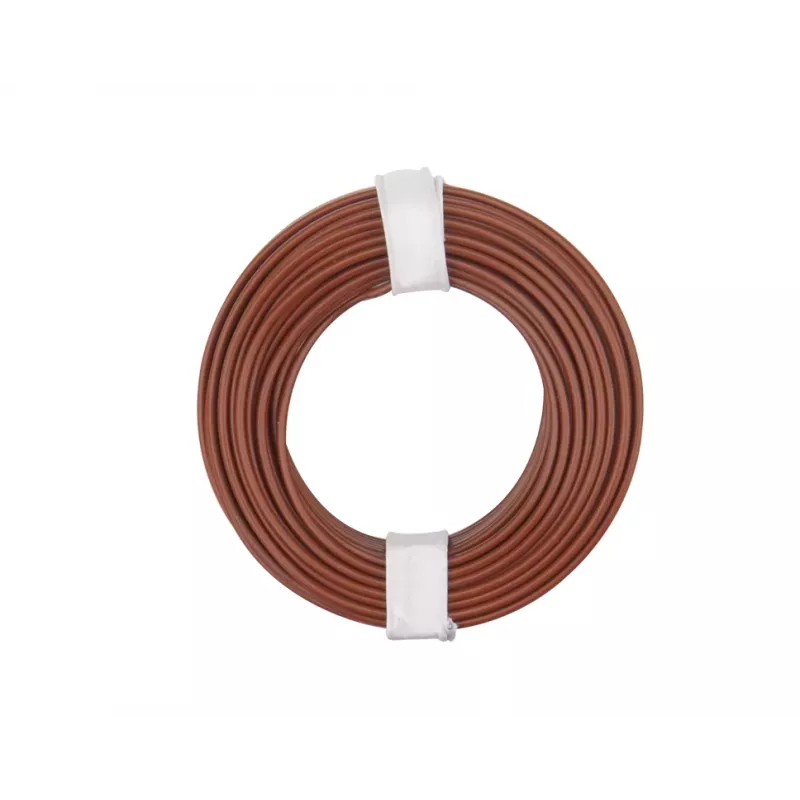

Donau Elektronik 175-018 cable LiY 1 x 0,75 mm² marrón

Single-core LiY stranded wire with a 0.75 mm² cross-section, engineered for reliable control and signal wiring in electronics and model building. Its fine-stranded copper conductor and PVC insulation deliver excellent flexibility, easy soldering, and long-term durability in demanding low-voltage applications.

Advantages

This wire combines a Class 5 fine-stranded copper conductor with a robust PVC jacket, ensuring high flexibility and resistance to mechanical stress. The brown insulation provides clear identification in complex circuits, while the flame-retardant design enhances safety. With an operating temperature range of -30 °C to +80 °C, it performs reliably in harsh environments.

Suitable for

• Control and signal wiring in electronic devices
• Model building and hobbyist projects
• Low-voltage internal wiring of appliances
• Prototyping and breadboard connections

Key specifications

• Conductor cross-section: 0.75 mm²
• Number of cores: 1
• Insulation colour: Brown
• Conductor material: Fine-stranded copper (Class 5)
• Insulation material: PVC
• Nominal voltage: 100 V
• Test voltage: 1200 V
• Outer diameter: approx. 2.3 mm
• Conductor resistance: approx. 26 Ω/km at 20 °C
• Flame retardant according to VDE 0482-332-1-2 / IEC 60332-1-2
• RoHS compliant

Recommendations

For optimal performance, use this wire in applications where flexibility and reliable signal transmission are critical. Always verify voltage and current requirements before installation, and ensure proper strain relief to extend service life.
