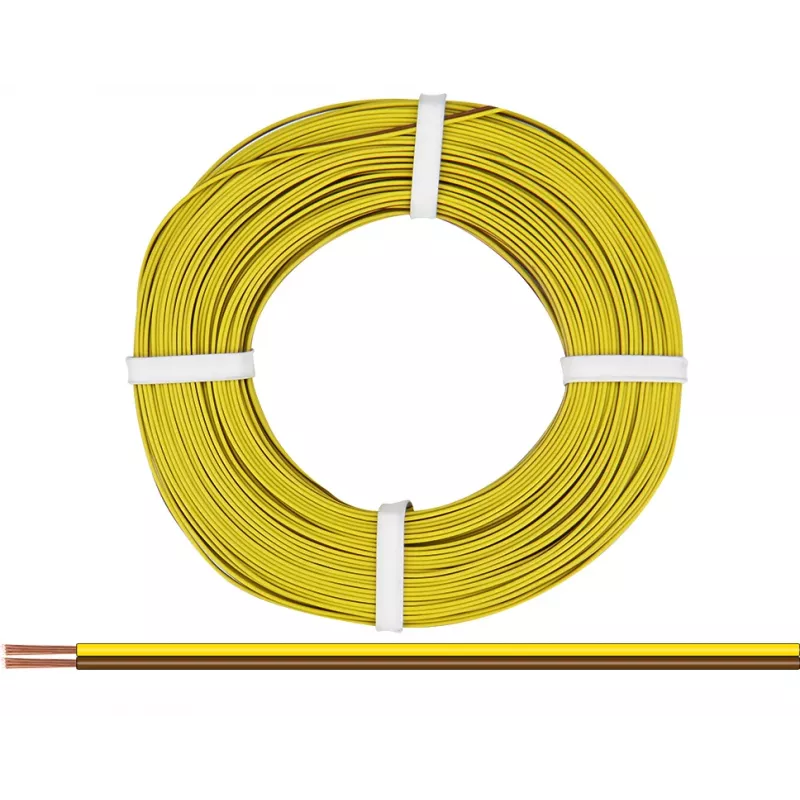

Donau Elektronik 218-38-25 cable flexible 2 x 0,14 mm² marrón, amarillo 25 m

For electronics hobbyists and model builders, this 25-meter stranded wire from Donau Elektronik provides reliable low-voltage connections in tight spaces. The two cores, brown and yellow, are easy to identify during assembly.

Key specifications

• Cable type: Stranded wire (Litzenkabel)
• Number of cores: 2
• Conductor cross-section: 0.14 mm² per core
• Conductor material: Copper
• Insulation material: PVC
• Core colours: Brown, Yellow
• Cable length: 25 m
• Rated voltage: 300 V
• Temperature range: -30°C to +80°C
• Outer diameter: approx. 2.5 mm
• Conductor construction: 18 x 0.1 mm
• Flame retardant: Yes (PVC)
• RoHS compliant: Yes
• Packaging: Ring / Coil

Why choose it

The fine-stranded copper construction keeps the wire flexible, making it easy to route in compact enclosures. PVC insulation offers good abrasion resistance for everyday projects.

Ideal use cases

• Low-voltage switching circuits
• Model building and robotics
• Electronics prototyping and repairs
• Internal wiring of small devices

Good to know

Supplied on a ring for convenient storage and dispensing. The dual colour coding helps prevent wiring errors.
