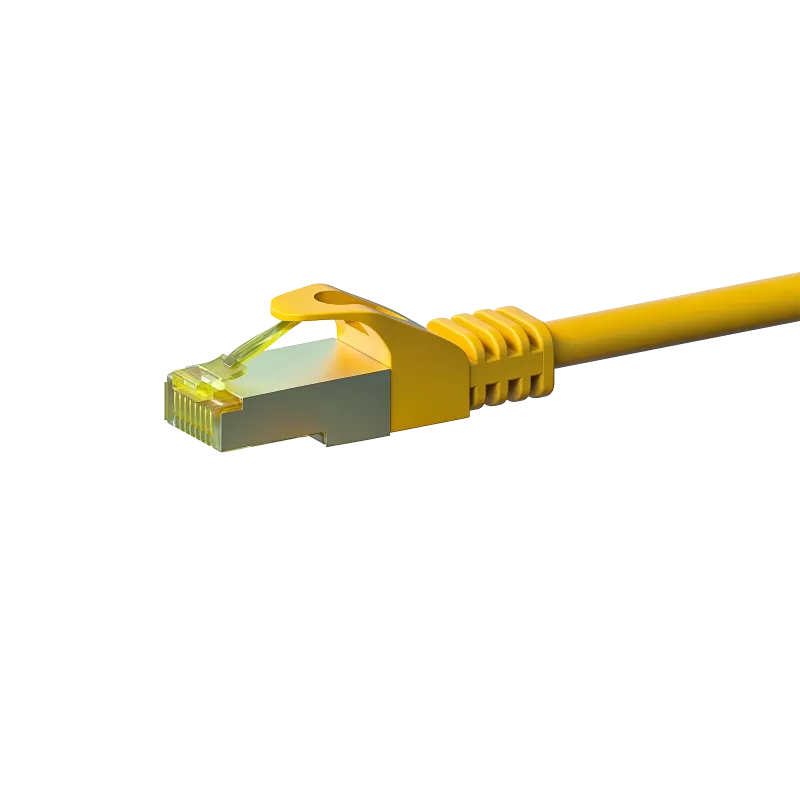

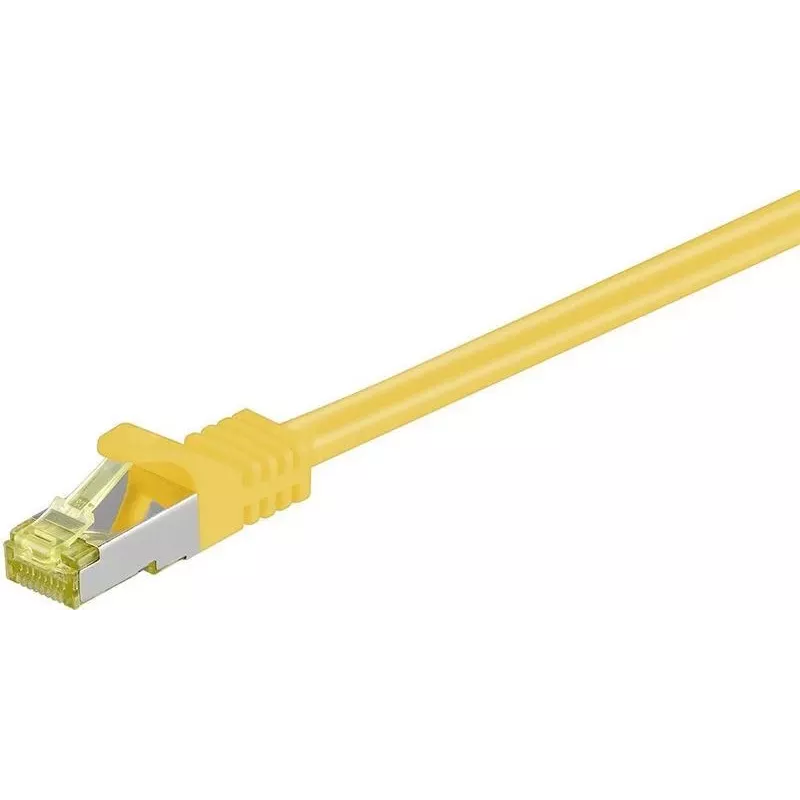

DSIT cable de red Cat.7 S/FTP conector RJ45 macho a conector RJ45 macho, 5 m, amarillo

Network administrators and IT technicians often need a reliable, high-speed connection between servers, switches, and patch panels in data centers. This DSIT Cat.7 S/FTP cable delivers 10 Gigabit Ethernet performance over 5 meters, ensuring stable links in demanding environments. The yellow jacket helps with quick identification among cable bundles, while the shielded construction minimizes interference from nearby equipment.

Key specifications

• Category 7 (Cat.7) rated for up to 10GBASE-T Ethernet
• S/FTP shielding: overall braid and foil around each twisted pair (PiMF)
• RJ45 male connectors on both ends with molded snagless boots
• 5-meter length, yellow PVC jacket
• 23 AWG bare copper conductors, 600 MHz bandwidth
• Backward compatible with Cat.6a, Cat.6, Cat.5e, Cat.5

Why choose it

This cable meets ISO/IEC 11801 and TIA/EIA-568-C.2 standards, guaranteeing performance in professional installations. The S/FTP shielding rejects electromagnetic interference, making it suitable for use near power lines or industrial machinery. The snagless boot protects the locking tab during frequent reconnections, extending the cable's lifespan.

Ideal use cases

• Connecting workstations to 10G switches in office LANs
• Patching between patch panels and network equipment in server rooms
• Linking network-attached storage (NAS) devices for high-speed data transfer
• Deploying temporary high-bandwidth links at events or labs

Good to know

The cable operates reliably between -20°C and 60°C, and its CM flammability rating allows use in general-purpose installations. The 100-ohm impedance and TIA/EIA-568B wiring ensure compatibility with standard Ethernet equipment. Each pair is individually foil-wrapped, and the overall braid provides additional protection against alien crosstalk.
