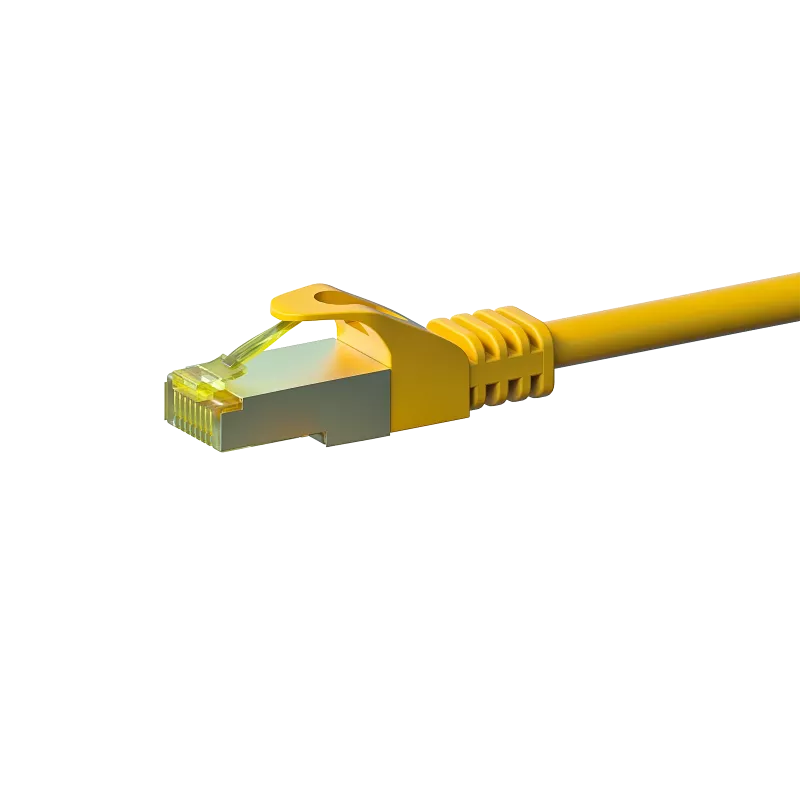

DSIT cable de red RJ45 Cat.7 S/FTP PiMF, 3m, amarillo - 10Gbps, 600MHz, PoE++

Experience true 10 Gigabit Ethernet performance with a 600 MHz bandwidth—this DSIT Cat.7 S/FTP PiMF cable is engineered for the most demanding network environments. The 3-meter yellow patch cable combines individually shielded twisted pairs (PiMF) with an overall braided screen (S/FTP), virtually eliminating crosstalk and EMI even in dense, noisy setups.

Overview

The DSIT DC-77-030 is a Category 7 network patch cable built for data centers, server rooms, 10GBASE-T Ethernet, and high-throughput workstations. Its 23 AWG stranded oxygen-free copper conductors ensure excellent signal integrity and flexibility, while the rugged PVC jacket protects against daily wear. Each end is terminated with a shielded RJ45 male connector, ready for immediate use.

What stands out

• True Cat.7 performance: 600 MHz bandwidth and 10 Gbps data transfer rate—four times the bandwidth of Cat.6a.
• Double shielding (S/FTP + PiMF): individual foil around each pair plus overall braid for maximum noise immunity.
• PoE++ ready: supports up to IEEE 802.3bt Type 3 (60W) for powering access points, cameras, and other devices.
• Backward compatible: works seamlessly with Cat.6a, Cat.6, and Cat.5e networks.
• High-quality copper: oxygen-free copper (OFC) conductors ensure minimal resistance and long-term reliability.

Technical details

• Cable type: Ethernet patch cable, Cat.7
• Shielding: S/FTP (Screened Foiled Twisted Pair), PiMF (Pairs in Metal Foil)
• Length: 3 meters
• Colour: Yellow
• Connectors: RJ45 male to RJ45 male
• Conductor: 23 AWG stranded OFC
• Jacket: PVC
• Impedance: 100 Ohm
• Compliance: TIA/EIA-568-C.2, ISO/IEC 11801

Our verdict

For mission-critical networks that demand maximum throughput and reliability, the DSIT Cat.7 S/FTP PiMF cable delivers exceptional shielding, high bandwidth, and PoE++ support in a durable, flexible package.
