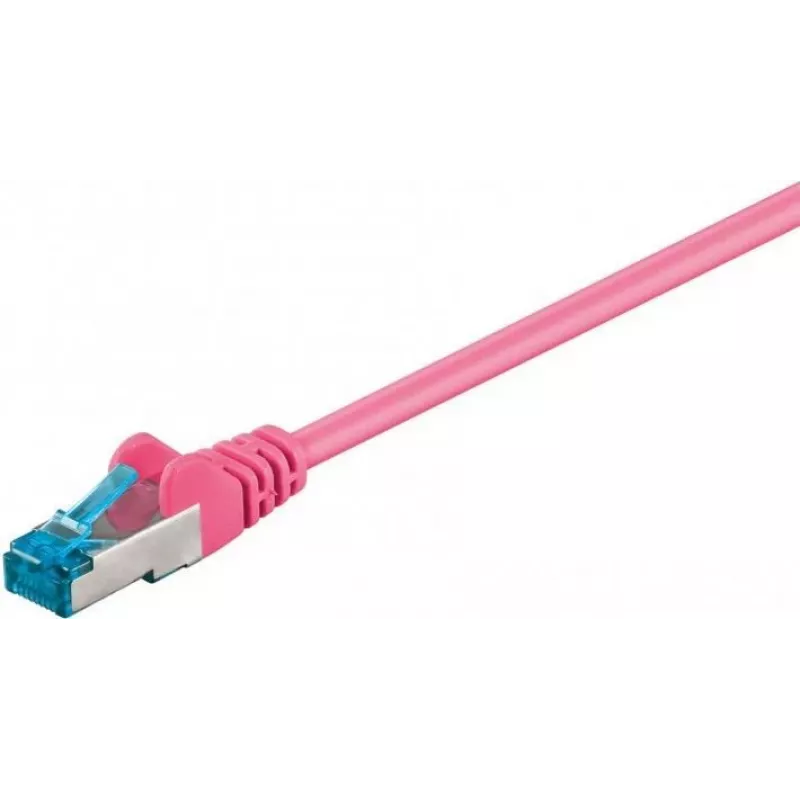

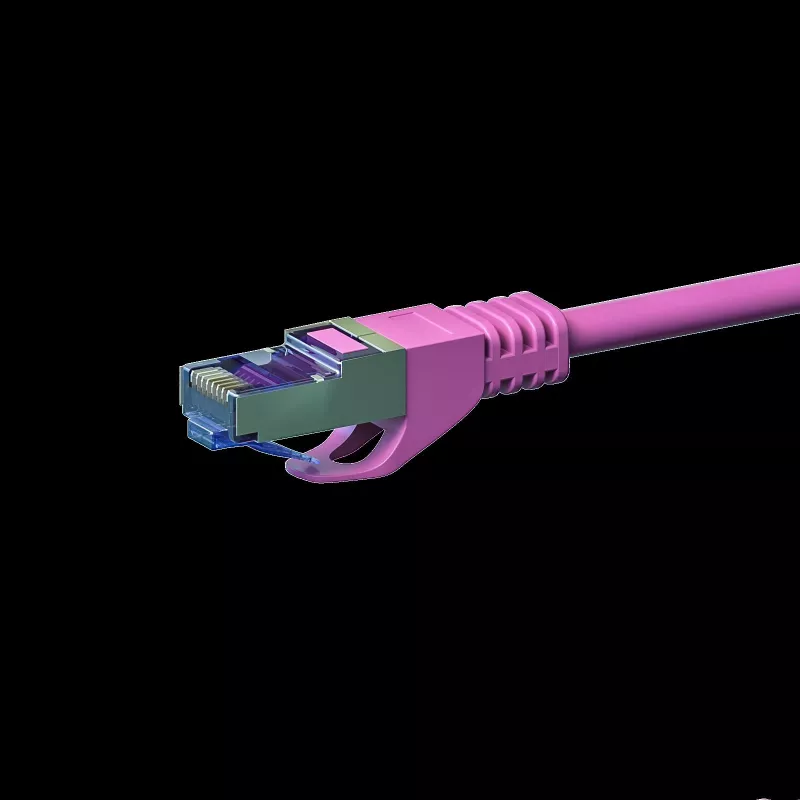

DSIT cable patch CAT 6a S/FTP LSOH, 1 m, rosa

Experience 10 Gigabit Ethernet speeds with this DSIT CAT 6a S/FTP patch cable. Engineered with screened foiled twisted pair construction and LSOH jacket, it delivers 500 MHz bandwidth and superior EMI protection in a compact 1-meter pink design.

Overview

The DSIT DC-6A9-010 is a high-performance CAT 6a network cable designed for demanding data center and enterprise environments. Its S/FTP shielding—each pair individually foiled plus an overall braided screen—ensures minimal crosstalk and maximum signal integrity. The low smoke zero halogen (LSOH) jacket makes it safe for use in enclosed spaces, while the stranded copper conductors provide flexibility for frequent patching.

What stands out

• Supports 10GBASE-T up to 100 meters (this 1m length ideal for short links)
• Gold-plated RJ45 connectors for reliable, corrosion-resistant connections
• Halogen-free and flame-retardant jacket for enhanced safety
• PoE, PoE+, and UPoE ready for powering devices
• TIA/EIA 568B wiring for universal compatibility

Technical details

• Category: CAT 6a (Class EA)
• Shielding: S/FTP (Screened/Foiled Twisted Pair)
• Length: 1 meter
• Color: Pink
• Jacket material: LSOH (Low Smoke Zero Halogen)
• Connector type: RJ45 male to RJ45 male
• Data transfer rate: up to 10 Gbps
• Bandwidth: 500 MHz
• Conductor: stranded copper, AWG 26/7
• Compliance: RoHS, CE

Our verdict

A premium CAT 6a patch cable that combines high-speed performance, safety, and a distinctive pink color—perfect for color-coded network installations.
