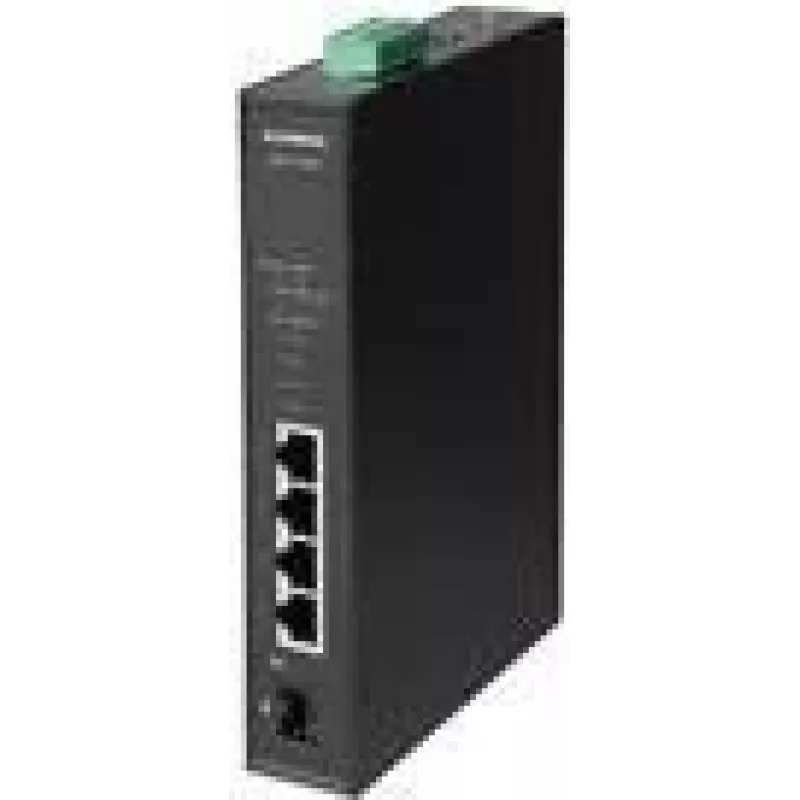

Switch no gestionado Edimax IGS-1105P Gigabit Ethernet 4 puertos PoE

EDIMAX IGS-1105P is an industrial 4-port Gigabit PoE+ DIN-rail switch with one SFP port, designed for reliable network connectivity in harsh environments. It supports extended operating temperatures and provides surge and power backfeed protection to minimize damage to the switch and connected devices. The switch also offers a PoE long-range solution with guaranteed delivery up to 200 meters, suitable for surveillance and parking lot deployments.

Advantages

The switch supplies Gigabit PoE+ connectivity on four ports plus an SFP uplink, enabling high-bandwidth links and flexible fiber connectivity. It includes 6 kV lightning surge and power backfeed protection to safeguard both the switch and connected equipment from non-standard power events. The device is specified to operate across a wide temperature range (-20°C to 70°C), allowing installation in both hot and freezing industrial locations. PoE long-range capability extends powered device placement up to 200 meters without additional power injectors.

Key specifications

• Model: EDIMAX IGS-1105P
• Ports: 4 × Gigabit PoE+ ports, 1 × SFP port
• PoE long range: up to 200 m (656 ft.)
• Surge protection: 6 kV lightning surge and power backfeed protection
• Operating temperature: -20°C to 70°C (-4°F to 158°F)
• Mounting: DIN-rail

How to use

Mount the EDIMAX IGS-1105P on a DIN rail in a suitable enclosure or cabinet. Connect network devices to the Gigabit PoE+ ports to provide both data and power; use the SFP port for fiber uplink if required. Ensure cabling supports the extended PoE range when placing devices up to 200 meters from the switch. Observe correct power source and grounding practices to take advantage of the surge and power backfeed protection features.

Recommendations

For reliable operation, install the switch in a ventilated, vibration-free location within the specified temperature range, use shielded or outdoor-rated cabling when necessary, and verify that connected powered devices support long-range PoE at extended distances.
