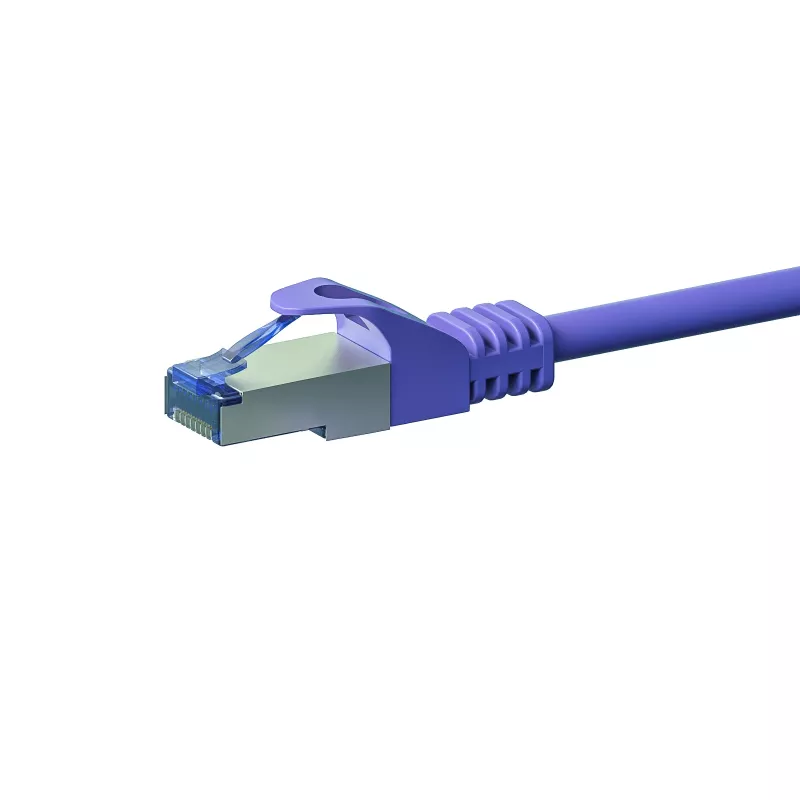

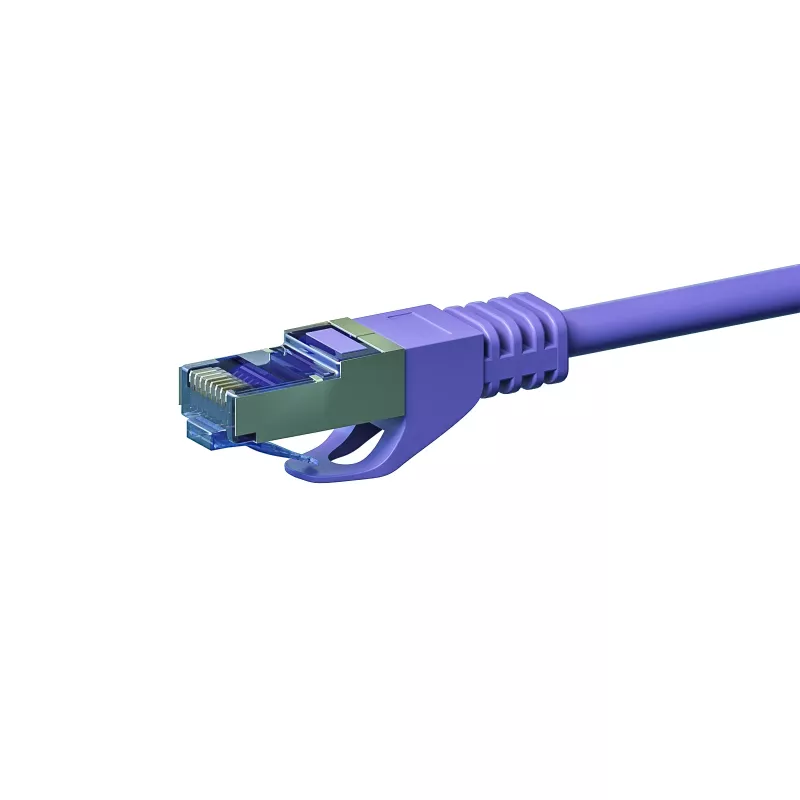

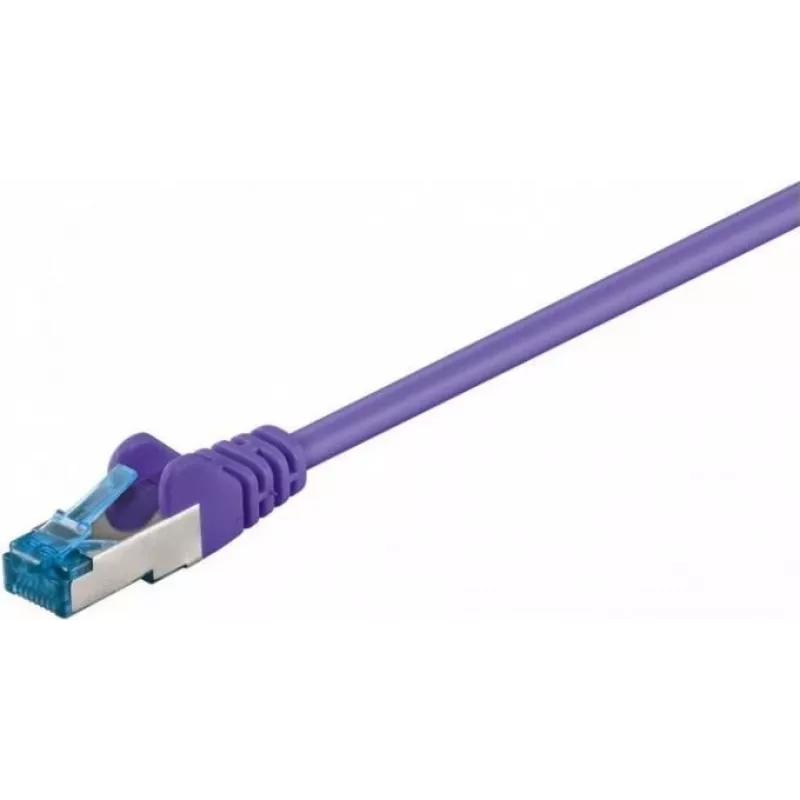

DSIT CAT 6a S/FTP LSOH cable de red, 50 m, violeta DC-6A8-500

This DSIT CAT 6a network cable stands out with its S/FTP shielding and LSOH jacket, making it a reliable choice for high-speed 10 Gigabit Ethernet connections up to 500 MHz. The violet colour helps with easy identification in dense cabling environments.

Highlights

• Supports 10GBASE-T up to 500 MHz
• S/FTP shielding (PiMF) for excellent crosstalk protection
• LSOH jacket reduces toxic smoke in case of fire
• Bare copper conductors, 23 AWG
• RJ45 male to RJ45 male connectors
• 50 m length for flexible installation

In daily use

Ideal for data centers, server rooms, and structured cabling, this cable delivers stable performance for PoE++ applications. The violet jacket allows quick port identification, while the LSOH material ensures safety in public buildings.

Full specifications

• Category: CAT 6a (Class EA)
• Shielding: S/FTP (Screened/Foiled Twisted Pair)
• Length: 50 m
• Colour: Violet
• Connector: RJ45 male to RJ45 male
• Conductor: Bare copper, 23 AWG
• Jacket: LSOH (Low Smoke Zero Halogen)
• Bandwidth: 10 Gigabit Ethernet (10GBASE-T)
• Frequency: Up to 500 MHz
• PoE support: PoE, PoE+, PoE++ (IEEE 802.3af/at/bt)
• Pairs: 4 twisted pairs
• Outer diameter: 7.5 mm
• Wiring standard: TIA/EIA-568B
• Compliance: ISO/IEC 11801, EN 50173, TIA/EIA-568-C.2

Final note

A high-performance, safety-conscious cable for demanding network environments.
