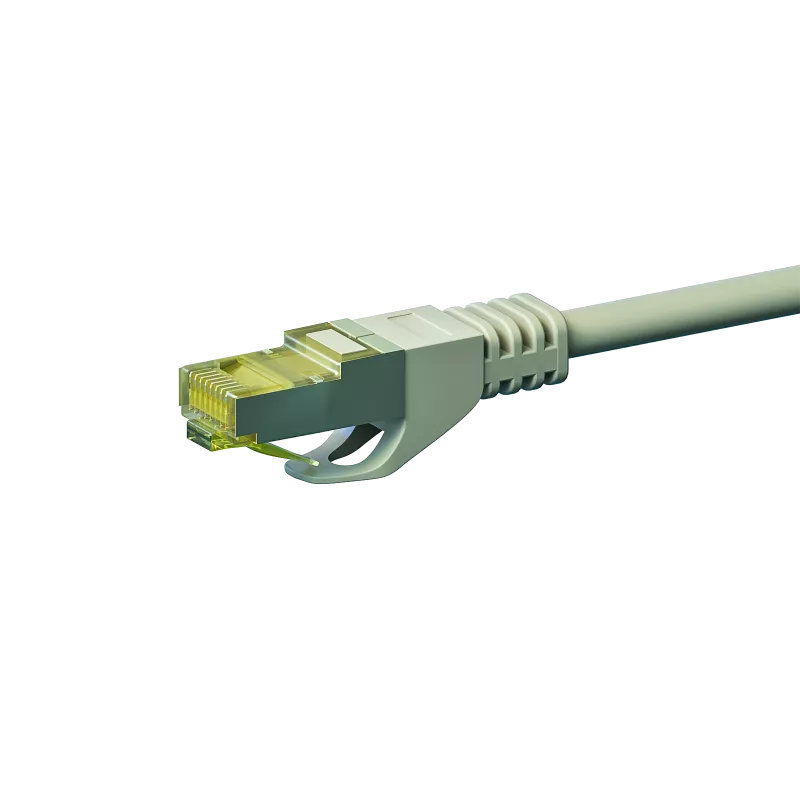

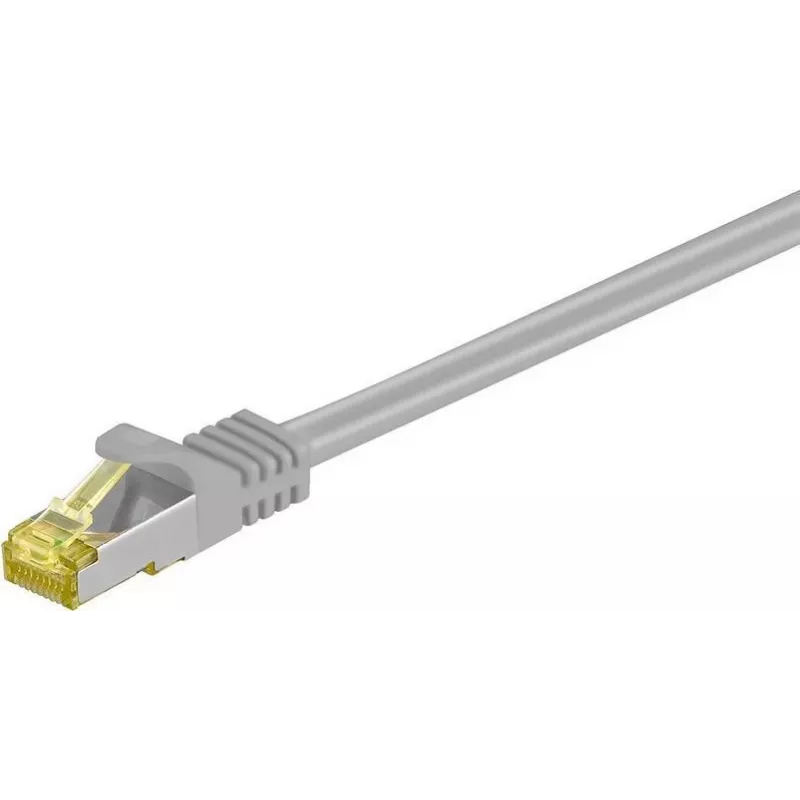

DSIT Cat.7 S/FTP PiMF cable de red, RJ45, gris, 50m (DC-71-500)

In a busy data center, a network engineer needs to link a server rack to a core switch across the room. The DSIT Cat.7 S/FTP PiMF network cable provides a reliable 50-meter connection that maintains 10 Gigabit speeds even in electrically noisy environments. Its grey PVC jacket blends into professional surroundings, and the robust construction ensures consistent performance for high-density networking.

Key specifications

• Category: Cat.7 (Category 7)
• Shielding: S/FTP (Screened Foiled Twisted Pair) with PiMF (Pairs in Metal Foil)
• Connectors: RJ45 male to RJ45 male
• Length: 50 meters
• Colour: Grey
• Bandwidth: 600 MHz
• Data rate: 10 Gbps (10GBASE-T)
• Conductor: Bare copper, 23 AWG, solid core
• Jacket: PVC
• Impedance: 100 Ohm
• PoE support: PoE, PoE+, PoE++
• Standards: ISO/IEC 11801, TIA/EIA-568-C.2

Why choose it

This cable is built for high-density networking environments where interference can degrade performance. The S/FTP shielding with individual pair foils (PiMF) virtually eliminates crosstalk and external noise, ensuring error-free transmission even near power lines or other cables. The solid copper conductors provide excellent signal integrity over long distances, and the 50-meter length offers flexibility for structured cabling installations.

Ideal use cases

• Connecting servers to switches in data centers
• Running backbone links between network cabinets
• High-speed workstation connections for video editing or CAD
• PoE device connections such as IP cameras or access points

Good to know

While Cat.7 is not officially recognized by TIA/EIA for all applications, it exceeds the performance of Cat.6a and is fully backward compatible with lower categories. The cable supports Power over Ethernet up to PoE++, making it suitable for powering devices over the same cable.
