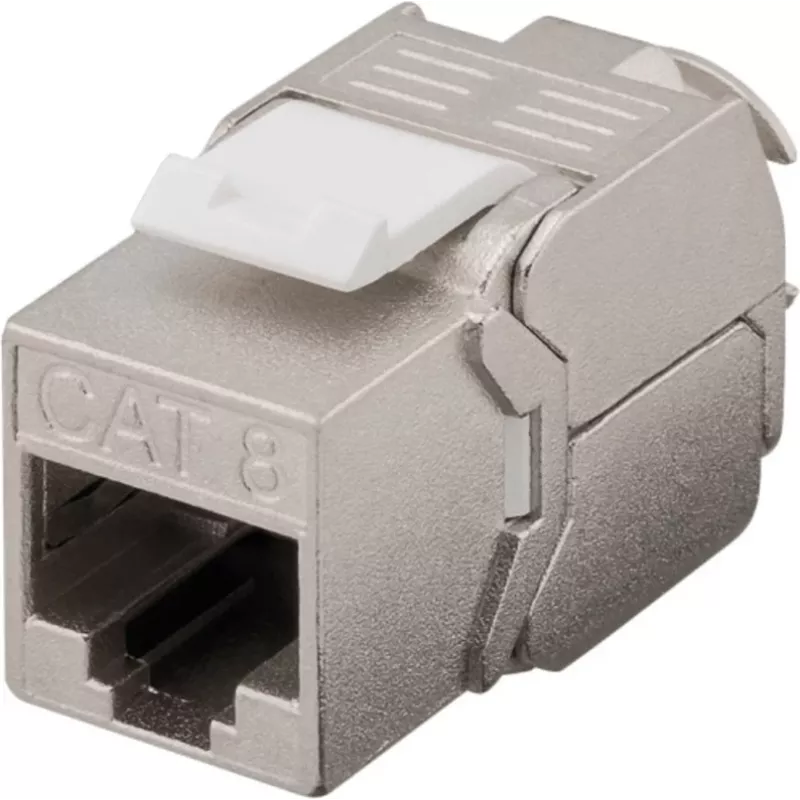

DSIT CAT8 STP keystone jack para crimpar, módulo RJ45 apantallado DS-KC-STP8-TL

For high-density network installations where speed and signal integrity are non-negotiable, this DSIT CAT8 STP keystone jack delivers a tool-free termination method that dramatically cuts installation time without sacrificing performance. Unlike standard punch-down jacks that demand specialized tools and careful wire placement, the toolless IDC mechanism lets you seat conductors and close the cap by hand—perfect for field technicians and rapid patch panel builds. The die-cast zinc alloy housing provides full 360° shielding, effectively blocking EMI and crosstalk in noisy environments, while 50µm gold-plated contacts ensure low resistance and long-term reliability even after hundreds of mating cycles.

Highlights

• Supports up to 40 Gigabit Ethernet (40GBASE-T) with 2000 MHz bandwidth for future-proof cabling.
• STP shielded design with die-cast zinc alloy body for superior EMI/RFI protection.
• Toolless IDC termination: no punch-down tool required, just insert wires and snap shut.
• Compatible with 22–26 AWG solid and stranded conductors, T568A and T568B wiring schemes.
• Snap-in keystone form factor fits standard patch panels, wall plates, and surface boxes.
• PoE, PoE+, and 4PPoE (PoE++) ready for power-hungry devices.
• 50µm gold-plated contacts and rugged construction for ≥750 RJ45 insertion cycles.

In daily use

Installing this keystone jack is remarkably straightforward: strip the cable jacket, arrange the eight wires according to the colour-coded T568A or T568B legend printed on the module, insert them into the IDC slots, and close the cap. The toolless design eliminates the need for punch-down tools, making it ideal for both experienced installers and DIY enthusiasts. The zinc alloy housing not only shields against interference but also provides a robust, durable connection that withstands frequent handling. Whether you're setting up a data center, office network, or high-performance home lab, this jack ensures a reliable, high-speed link.

Full specifications

• Category: CAT8 (Category 8)
• Shielding: STP (Shielded Twisted Pair)
• Connector type: Keystone Jack
• Termination: Toolless IDC
• Data rate: Up to 40 Gbps (40GBASE-T)
• Bandwidth: 2000 MHz
• Wire gauge: 22-26 AWG solid/stranded
• Contact plating: 50µm gold
• Housing: Die-cast zinc alloy, PC/ABS
• Wiring: T568A/T568B
• PoE support: PoE, PoE+, 4PPoE (PoE++)
• Standards: ISO/IEC 11801, EN 50173, TIA/EIA-568.2-D
• Operating temperature: -10°C to 60°C
• Insulation resistance: >500 MΩ
• Dielectric withstanding: 1000V AC RMS, 60Hz, 1 min
• RJ45 insertion cycles: ≥750
• IDC termination life: ≥200 cycles

Final note

Built for demanding environments, this DSIT CAT8 keystone jack combines tool-free convenience with enterprise-grade performance, ensuring your network is ready for today's and tomorrow's bandwidth needs.
