Módulo Keystone helos Cat 6a 180° Premium certificado GHMT 4PPoE

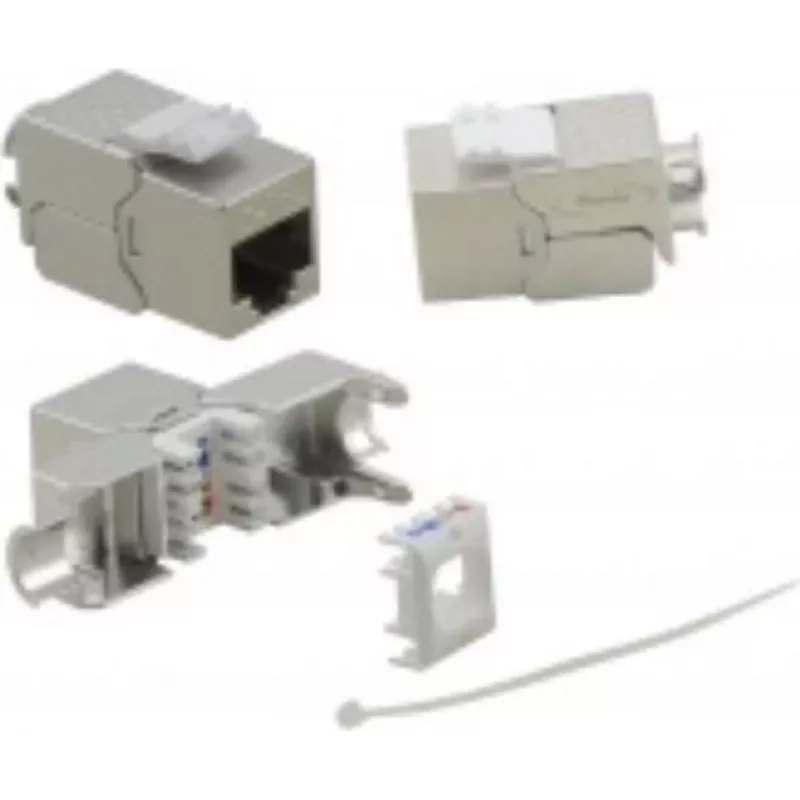

The helos Keystone module Cat 6a 180° Premium GHMT Certified 4PPoE is a modular network connector designed for structured cabling and patch panel installations. It supports Cat 6a performance for 10 Gigabit Ethernet and provides 180° orientation for horizontal mounting. The module is GHMT certified, ensuring compliance with industry standards, and supports 4-pair Power over Ethernet (4PPoE) for delivering power alongside data through all four wire pairs.

Advantages

The keystone module combines certified Cat 6a transmission characteristics with a compact 180° form factor suited for dense patch panels and modular faceplates. GHMT certification provides verified electrical and mechanical performance for consistent 10 Gb/s data rates. Integrated 4PPoE capability enables delivery of higher power levels to devices such as access points and networked cameras while maintaining signal integrity. The modular design simplifies installation and replacement without disturbing existing cabling infrastructure.

Suitable for

• Structured cabling systems in offices and commercial buildings
• Patch panels and modular faceplates where 180° orientation is required
• Data centres and wiring closets requiring certified Cat 6a performance
• PoE-powered devices that need 4-pair power delivery, such as high-power access points and PTZ cameras

Key specifications

• Category: Cat 6a, supports 10 Gigabit Ethernet
• Orientation: 180° for horizontal installation
• Certification: GHMT verified performance
• Power over Ethernet: 4-pair PoE (4PPoE) support
• Application: Modular keystone format for patch panels and faceplates

How to use

Insert the keystone module into a compatible keystone aperture on a patch panel, faceplate, or surface-mount box with the 180° orientation aligned to the horizontal cabling path. Terminate twisted-pair cable conductors to the module according to the specified wiring scheme and use appropriate punch-down tools or IDC termination method as recommended by the installer guidelines. After termination, secure the module in the panel, verify continuity and pair integrity with certification or testing equipment, and connect patch cables or network devices to the front port.

Recommendations

For reliable Cat 6a performance and safe 4PPoE operation, use compatible Cat 6a cabling and maintain proper cable management to avoid excessive bend radius or untwisting. Perform certification-level testing after installation and ensure equipment power requirements match 4PPoE delivery capabilities.
