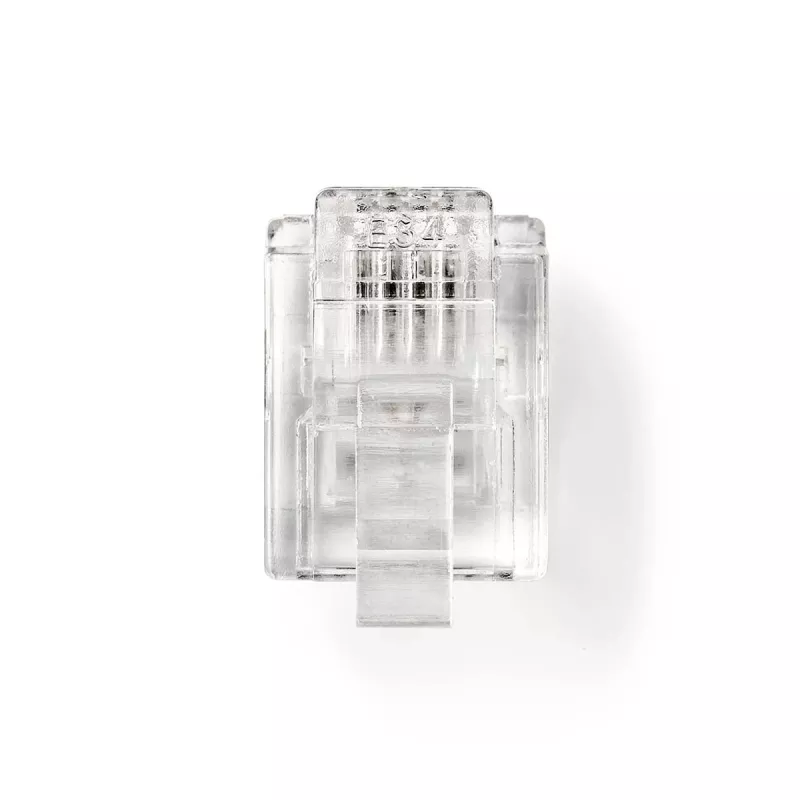

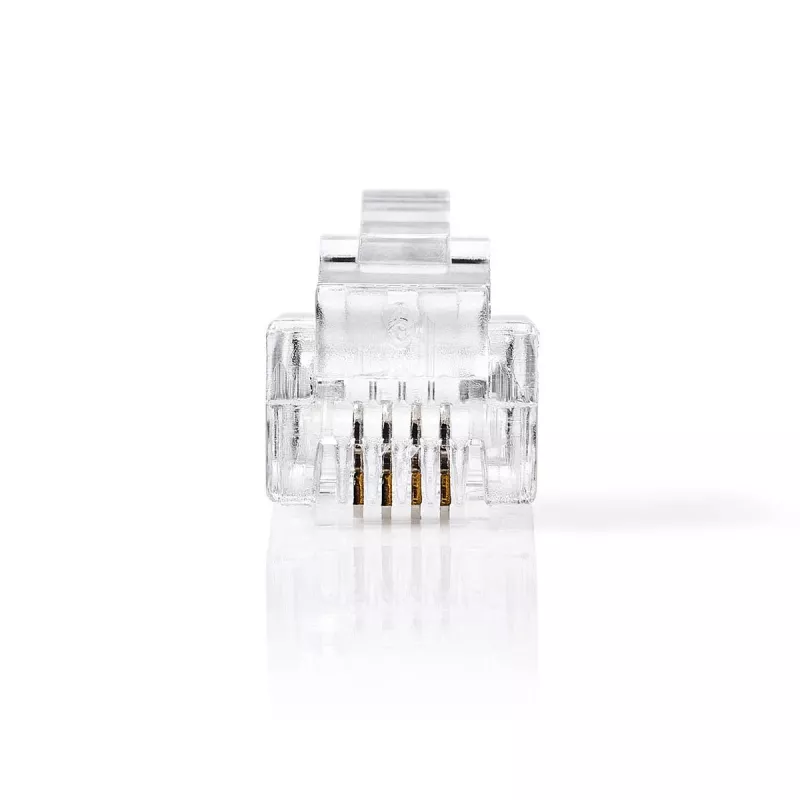

DSIT Conector macho de teléfono RJ11 - 4 polos - 10 unidades (DC-RJ11-10PCE)

Repairing or building telephone cables often means dealing with broken connectors or needing a custom length. These DSIT RJ11 plugs provide a reliable crimp-on solution for terminating 4-wire telephone cables, ensuring a secure connection for telephony, ADSL/VDSL, and fax applications.

Who is it for

Telephone technicians, DIY enthusiasts, and IT professionals who need to create or repair RJ11 cables with 4 conductors. Suitable for both flat and round telephone cables with 24-26 AWG solid or stranded wire.

Main features

• RJ11 male connector with 4 positions and 4 contacts (4P4C)
• Gold-plated contacts for reliable signal transmission and corrosion resistance
• Transparent polycarbonate housing allows visual inspection of wire placement
• Crimp-on termination for quick and secure installation
• Pack of 10 pieces for multiple repairs or installations
• RoHS compliant

Specifications

• Connector Type: RJ11
• Number of Conductors: 4 (4P4C)
• Connector Gender: Male
• Contact Plating: Gold-plated
• Housing Material: Polycarbonate (PC)
• Housing Color: Transparent
• Cable Compatibility: Flat or Round Telephone Cable
• Wire Gauge Compatibility: 24-26 AWG Solid/Stranded
• Termination Method: Crimp-on
• Application: Telephony, ADSL/VDSL, Fax Machines
• Max Voltage Rating: 150V AC/DC
• Max Current Rating: 1.5A
• Operating Temperature: -10°C to 60°C
• Durability: 750 Mating Cycles

Tips

Use a proper RJ11 crimping tool for best results. Ensure the wires are fully inserted before crimping, and check the color code for your specific telephone system.
