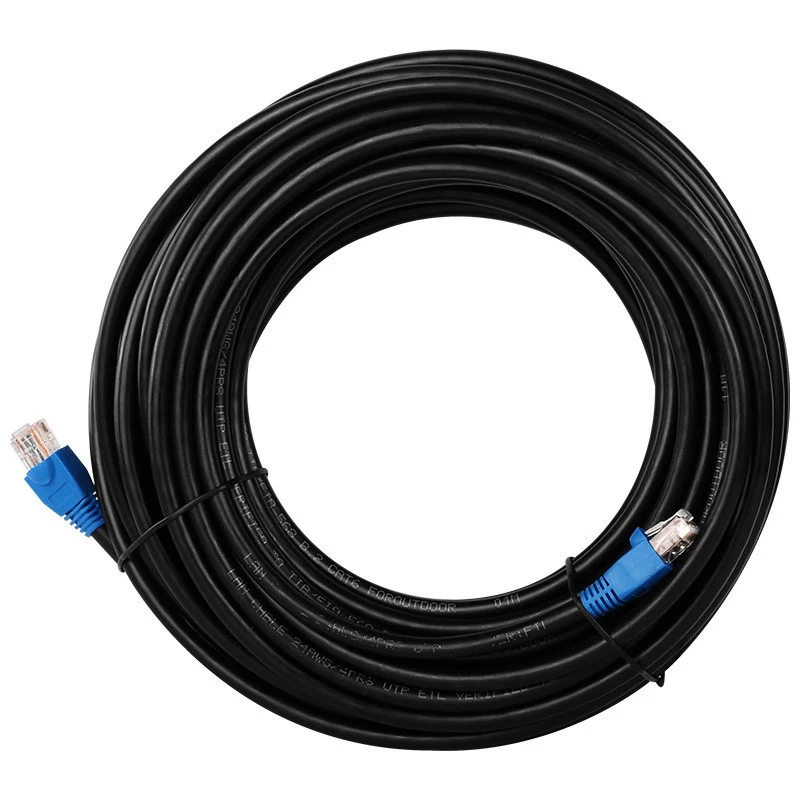

DSIT DANICOM Cable UTP exterior CAT6 – 60 m – negro (DC-OUT-C60-600)

Running Ethernet between buildings or across outdoor spaces? Standard indoor cables degrade quickly under UV, moisture, and temperature swings, leading to signal loss and network failures. The DSIT DANICOM CAT6 Outdoor UTP Cable solves this with a rugged polyethylene jacket and solid copper conductors, delivering reliable Gigabit connectivity over 60 meters even in harsh weather.

Who is it for

This cable is ideal for IT installers, system integrators, and homeowners who need a dependable outdoor link for IP cameras, access points, outbuildings, or long-distance LAN extensions. Its 60-meter length covers most residential and light commercial runs without splicing.

Main features

• CAT6 performance: supports 10BASE-T, 100BASE-TX, and 1000BASE-T up to 250 MHz.
• Unshielded twisted pair (UTP) with solid bare copper conductors for stable, low-loss transmission.
• UV-resistant and weatherproof PE jacket withstands sunlight, rain, and temperature extremes from -20°C to 60°C.
• Bulk cable with no connectors, allowing custom termination with RJ45 plugs or keystone jacks.
• 23 AWG solid core ensures consistent impedance and reduces attenuation over long distances.

Specifications

• Cable standard: CAT6
• Shielding: UTP (unshielded)
• Length: 60 meters
• Colour: black
• Conductor: solid bare copper, 23 AWG, 8 conductors (4 pairs)
• Jacket: PE (polyethylene), UV-resistant, weatherproof
• Impedance: 100 Ohm
• Max bandwidth: 250 MHz
• Max data rate: 1000 Mbps (1 Gbps)
• Operating temperature: -20°C to 60°C
• Outer diameter: approx. 6.0–6.5 mm
• Compliance: RoHS, CE

Tips

For outdoor installations, use weatherproof RJ45 connectors and consider a drip loop to prevent water ingress. Avoid sharp bends and keep the cable away from power lines to maintain signal integrity. Test the run with a cable certifier after termination to ensure full CAT6 performance.
