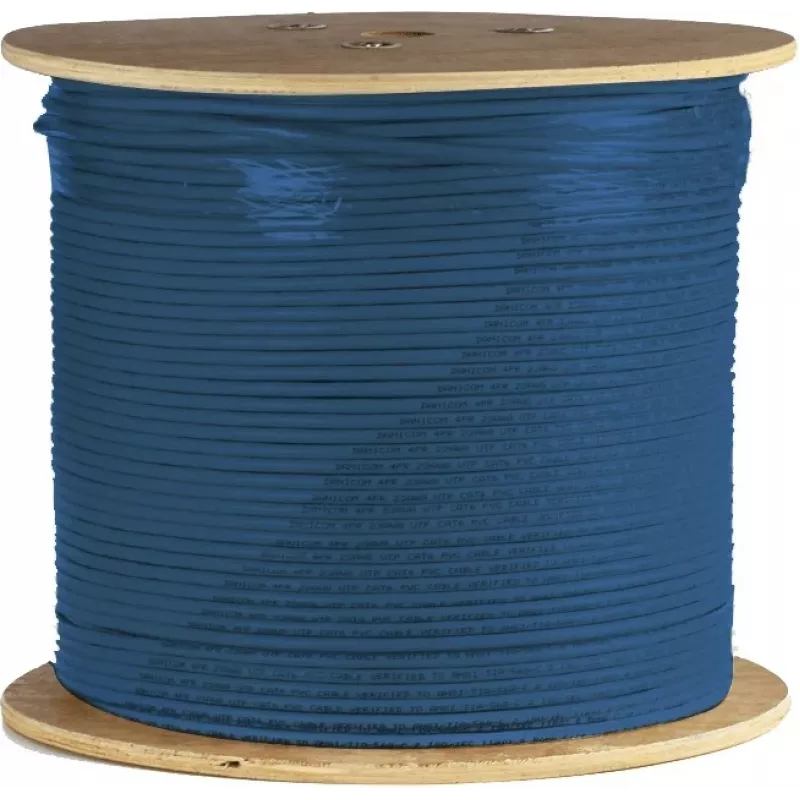

DSIT DANICOM CAT6 UTP 500m Cable de PVC de conductor sólido (Dca) - DC-UTP6-500S-DCA

Network installers pulling long horizontal runs in office buildings rely on the DSIT DANICOM CAT6 UTP 500m Solid Core PVC Cable. The 500-meter drum keeps large projects moving without frequent spool changes, while solid bare copper conductors maintain signal integrity over distance. The unshielded twisted pair design with 23 AWG wires supports Gigabit Ethernet and even 10GBASE-T up to 55 meters.

Key specifications

• Category: CAT6
• Shielding: UTP (Unshielded Twisted Pair)
• Conductor: Solid bare copper, 23 AWG
• Length: 500 meters on reel
• Jacket: PVC, Euroclass Dca
• Bandwidth: up to 250 MHz
• Supports 10/100/1000BASE-T and 10GBASE-T (up to 55m)
• Impedance: 100 Ohm
• Outer diameter: 6.2 - 6.5 mm
• Standards: ISO/IEC 11801, EN 50173, TIA/EIA-568-C.2
• Operating temperature: -20°C to +60°C

Why choose it

Solid copper conductors resist attenuation and ensure consistent signal quality, making this cable a dependable choice for critical network links. The PVC jacket offers a good balance of flexibility and protection, easing installation through conduits and cable trays. With 500 meters on a reel, you can handle large projects without frequent spool changes, and the Dca fire rating provides peace of mind in commercial installations where fire safety is paramount.

Ideal use cases

• Structured cabling in office buildings, schools, and hospitals
• Horizontal runs from patch panels to workstations
• Gigabit Ethernet

Good to know

This cable is compliant with ISO/IEC 11801, EN 50173, and TIA/EIA-568-C.2 standards, ensuring compatibility with a wide range of networking equipment and installations.
