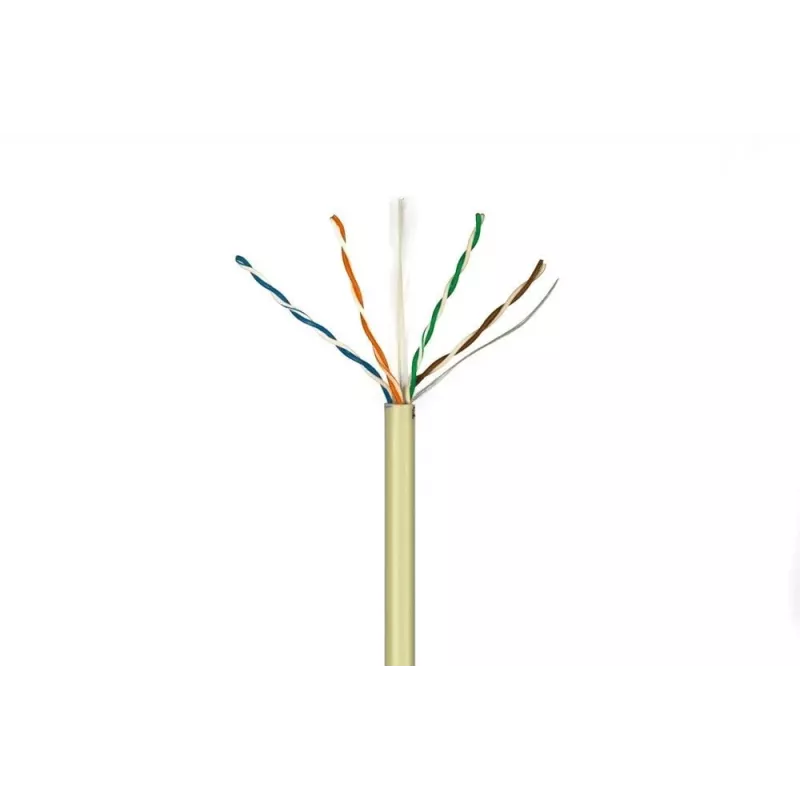

DSIT DANICOM CAT6A Cable 100% cobre U/UTP 305m de conductor sólido - LSZH (Cca) (DC-UTP6A-305S-CCA)

Experience reliable 10 Gigabit Ethernet over 305 meters with this CAT6A U/UTP installation cable, built with 100% copper solid conductors for superior conductivity and minimal power loss. The LSZH Cca jacket ensures compliance with European fire safety standards, while the unshielded twisted pair design simplifies termination and resists alien crosstalk for stable 10GBASE-T performance.

Advantages

100% copper conductors provide superior conductivity and support PoE++ up to 100W, minimizing power loss over long runs. The U/UTP design simplifies termination while maintaining excellent alien crosstalk resistance for 10GBASE-T. The LSZH Cca jacket meets stringent European fire safety regulations, reducing toxic fumes and smoke. Solid core construction is ideal for permanent links, patch panels, and wall outlets, ensuring stable performance over time.

Suitable for

• Structured cabling systems in offices, data centers, and industrial environments
• 10GBASE-T Ethernet networks requiring 500 MHz bandwidth
• Power over Ethernet (PoE, PoE+, PoE++) deployments for IP cameras, access points, and IoT devices
• Installations where low smoke zero halogen and Cca fire rating are mandatory
• Backbone and horizontal cabling in compliance with ISO/IEC 11801 and EN 50173

Key specifications

• Category: CAT6A
• Shielding: U/UTP (Unshielded Twisted Pair)
• Conductor: 100% Copper, Solid Core, 23 AWG

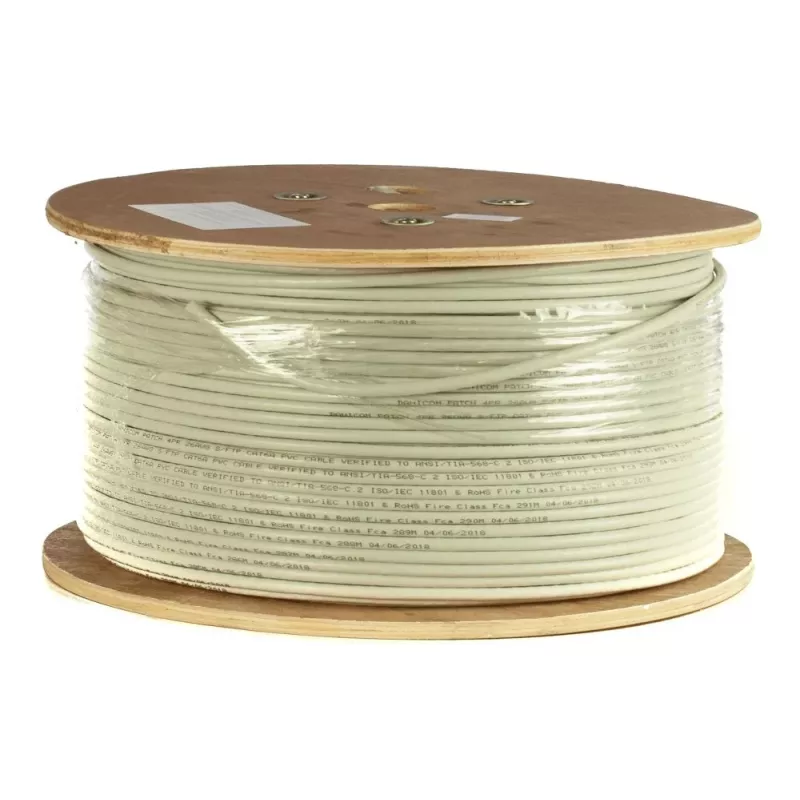

• Length: 305 meters
• Jacket: LSZH (Low Smoke Zero Halogen), Cca fire class
• Bandwidth: 500 MHz
• Data rate: 10 Gbps
• Impedance: 100 ± 15 Ohm

Recommendations

For permanent installations requiring high-speed data and PoE++ support, this cable delivers reliable performance with a low-smoke, halogen-free jacket for enhanced safety.
