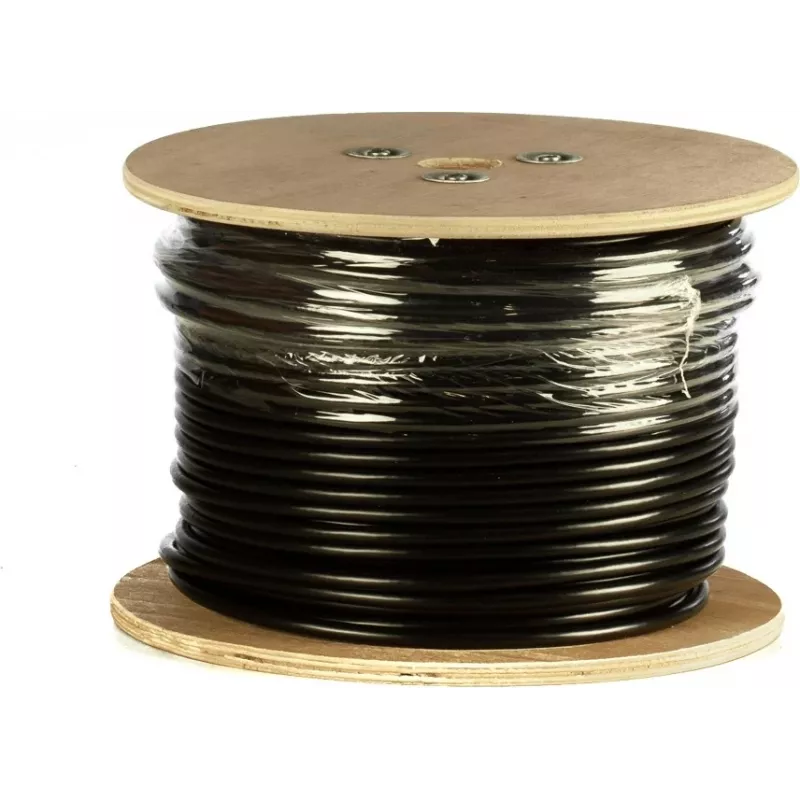

Cable DSIT DANICOM CAT5E FTP 305m exterior conductor macizo - funda PE (Fca) - 1000ft

Outdoor Cat5e FTP cable engineered for permanent exterior runs, delivering Gigabit Ethernet over 305 meters with solid bare copper conductors and a UV-resistant PE jacket. The overall foil shield blocks EMI, while the rugged jacket withstands -20°C to +60°C, ensuring reliable performance in harsh environments.

Advantages

Solid core conductors maintain signal integrity over long distances, and FTP shielding minimizes crosstalk and external noise. The PE jacket resists UV, moisture, and temperature extremes, ensuring long-term performance. With 100 MHz bandwidth and 100 Ohm impedance, it supports Gigabit Ethernet and other high-speed protocols. Each box contains 305 meters (1000 feet) of continuous cable, reducing splicing needs and installation time.

Suitable for

• Outdoor network installations between buildings or across campuses
• Industrial Ethernet and surveillance systems in exposed areas
• Permanent structured cabling in residential or commercial projects
• Applications requiring CPR Fca-rated cables for fire safety

Key specifications

• Category: Cat5e
• Shielding: FTP (Foiled Twisted Pair)
• Conductor: Solid bare copper, 24 AWG, 4 pairs
• Jacket: PE (Polyethylene), UV and moisture resistant
• Length: 305 m (1000 ft)
• Data rate: Up to 1 Gbps
• Bandwidth: 100 MHz
• Impedance: 100 Ohm
• CPR fire rating: Fca
• Operating temperature: -20°C to +60°C
• Standards: ISO/IEC 11801, EN 50173, TIA/EIA-568-C.2

Recommendations

Ideal for building-to-building links, campus networks, and industrial outdoor installations where durability and signal integrity are paramount.
